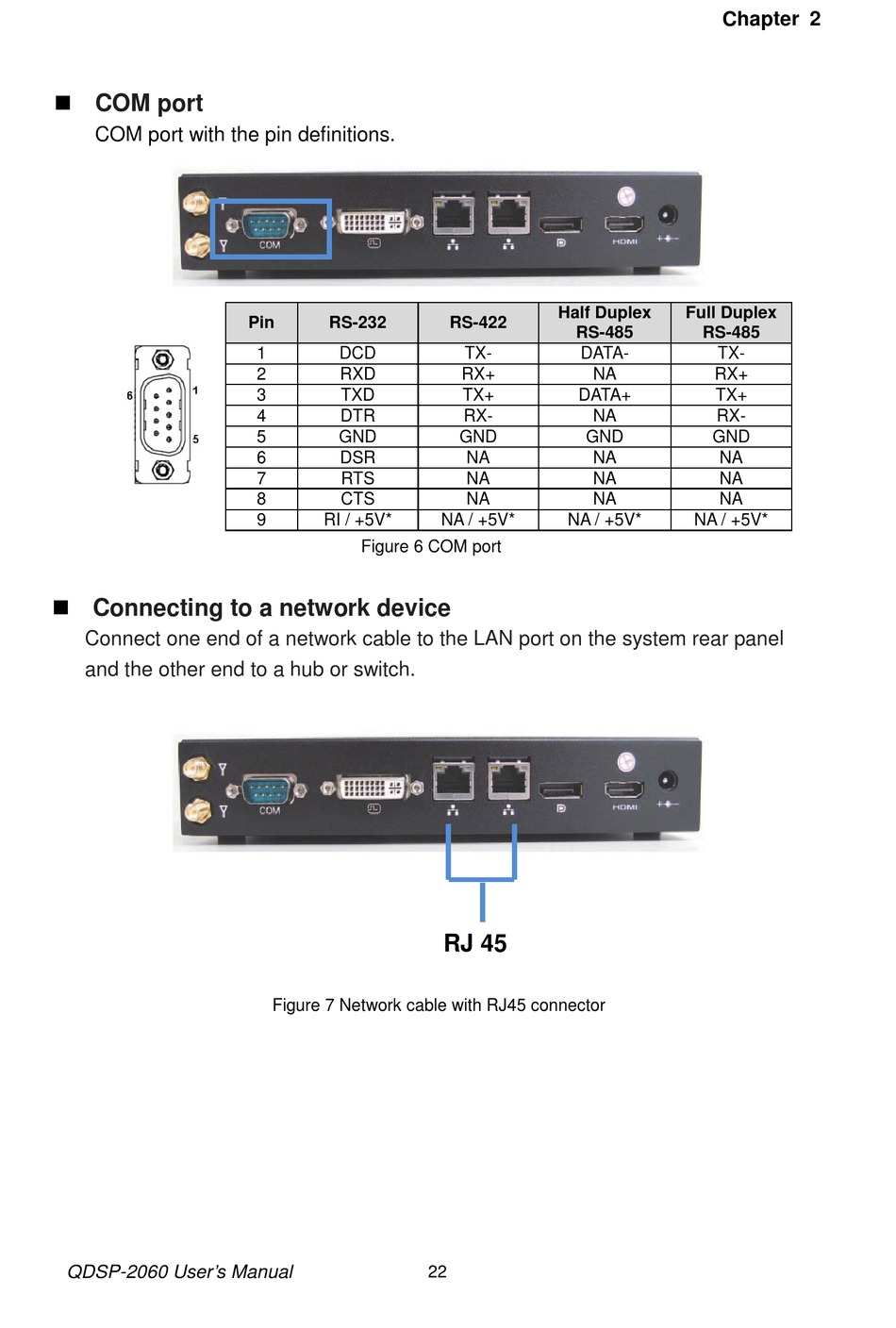

COM port
COM port with the pin definitions.

Connecting to a network device
Connect one end of a network cable to the LAN port on the system rear panel
and the other end to a hub or switch.
QDSP-2060 User's Manual
Pin RS-232
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI / +5V*

Figure 6 COM port

Figure 7 Network cable with RJ45 connector

Half Duplex
RS-422
RS-485
TX- DATA-
RX+
TX+ DATA+
RX-
GND GND
NA
NA
NA
NA / +5V* NA / +5V*
RJ 45
22
Chapter 2
Full Duplex
RS-485
TX-
NA RX+
TX+
NA RX-
GND
NA NA
NA NA
NA NA
NA / +5V*
