QutePC‐3020
0.6‐Liter NVIDIA® ION™ Nettop with Intel® dual‐core Atom Processor 330
User's Guide












QutePC‐3020 User's Manual


I


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QutePC?3020 and is the answer not in the manual?

Questions and answers

Summary of Contents for Quanmax QutePC?3020

  • Page 1 QutePC‐3020  0.6‐Liter NVIDIA® ION™ Nettop with Intel® dual‐core Atom Processor 330  User’s Guide                               QutePC‐3020 User’s Manual ...
  • Page 2             Contact Info:    Quanmax Inc.  5F, No. 415, Ti‐Ding Blvd. Sec. 2, NeiHu District, Taipei,  Taiwan 114  Tel: +886‐2‐2799‐2789  Fax: +886‐2‐2799‐7399  Visit our site at:  www.quanmax.com    © 2009 Quanmax Inc. All rights reserved.  The information in this user’s guide is provided for reference only. Quanmax does not assume any liability  arising out of the application or use of the information or products described herein. This user’s guide may  contain or reference information and products protected by copyrights or patents and does not convey any  license under the patent rights of Quanmax, nor the rights of others.  Quanmax and MAXDATA are registered trademarks of Quanmax. All trademarks, registered trademarks, and  trade names used in this user’s guide are the property of their respective owners. All rights reserved. This  user’s guide contains information proprietary to Quanmax. Customers may reprint and use this user’s guide in  other publications. Customers may alter this user’s guide and publish it only after they remove the Quanmax  name, cover, and logo.  Quanmax reserves the right to make changes without notice in product or component design as warranted by  evolution in user needs or progress in engineering or manufacturing technology. Changes which affect the  operation of the unit will be documented in the next revision of this user’s guide.  HDMI、the HDMI Logo, and High‐Definition Multimedia Interface are trademarks or registered trademarks of  HDMI Licensing LLC in the United states and other countries.    Revision    Date  Edited by    Changes    1.0 ...
  • Page 3: Table Of Contents

    Content Content  Content .................................... 3 Figures & Tables................................4 Safety Instructions ..............................5 Before You Begin........................... 5   When Working Inside a Computer..................5     Preventing Electrostatic Discharge ..................6 Instructions for Lithium Battery ..................... 7   Voltage Ratings..........................7   Preface ..................................... 8 How to Use This Guide....................... 8   Unpacking ............................8     Regulatory Compliance Statements ..................8 Warranty Policy ..........................
  • Page 4: Figures & Tables

    Figures & Tables Figures & Tables  Figure 1 Front Panel ..........................15 Figure 2 Rear Panel ..........................17 Figure 3 Connect the HDMI cable....................19 Figure 4 Connect the DVI cable ......................20 Figure 5 Connecting USB mouse & keyboard................20 Figure 6 Network cable with RJ45 connector................21 Figure 7 Turing on the system ......................21 Figure 8 VESA mounting (1) ......................22 Figure 9 VESA mounting (2) ......................22 Figure 10 Use a Kensington lock ....................23 Figure 11 Computer Stand........................24 Figure 12 Stand Dimension ......................24       Table 1 QutePC‐3020 product specifications................14 Table 2 BIOS Main Menu ........................27 Table 3 IDE Device Setting Menu ....................27 Table 4 System Information......................28 Table 5 Advanced Menu........................28 Table 6 CPU Configuration........................29 Table 7 OnBoard Peripherals Configuration Settings ............29 Table 8 Hardware Health Configuration..................30...
  • Page 5: Safety Instructions

    Safety Instructions Safety Instructions  Before You Begin  Before handling the product, read the instructions and safety guidelines on the following  pages to prevent damage to the product and to ensure your own personal safety. Refer to  the “Advisories” section in the Preface for advisory conventions used in this user’s guide,  including the distinction between Warnings, Cautions, Important Notes, and Notes.    Always use caution when handling/operating a computer. Only qualified,  experienced, authorized electronics service personnel should access the interior  of a computer. The power supplies produce high voltages and energy hazards,  which can cause bodily harm.  Use extreme caution when installing or removing components. Refer to the  installation instructions in this user’s guide for precautions and procedures. If you  have any questions, please contact Quanmax Post‐Sales Technical Support.  Access can only be gained by service persons or by users who have been  instructed about the reasons for the restrictions applied to the location and  about any precautions that shall be taken; and access is through the use of a  tool or lock and key, or other means of security, and is controlled by authority  responsible for the location.    WARNING  High voltages are present inside the chassis when the unit’s power cord is plugged into an  electrical outlet. Turn off system power, turn off the power supply, and then disconnect the  power cord from its source before removing the chassis cover. Turning off the system power  switch does not remove power to components.    When Working Inside a Computer  Before taking covers off a computer, perform the following steps:  Turn off the computer and any peripherals.  Disconnect the computer and peripherals from their power sources or subsystems to  prevent electric shock or system board damage. This does not apply when hot  QutePC‐3020 User’s Manual ...
  • Page 6: Preventing Electrostatic Discharge

    Safety Instructions swapping parts.  Follow the guidelines provided in “Preventing Electrostatic Discharge” on the  following page.  Disconnect any telephone or telecommunications lines from the computer.    In addition, take note of these safety guidelines when appropriate:  To help avoid possible damage to system boards, wait five seconds after turning off  the computer before removing a component, removing a system board, or  disconnecting a peripheral device from the computer.  When you disconnect a cable, pull on its connector or on its strain‐relief loop, not on  the cable itself. Some cables have a connector with locking tabs. If you are  disconnecting this type of cable, press in on the locking tabs before disconnecting the  cable. As you pull connectors apart, keep them evenly aligned to avoid bending any  connector pins. Also, before connecting a cable, make sure both connectors are  correctly oriented and aligned.    CAUTION  Do not attempt to service the system yourself except as explained in this user’s guide. Follow  installation and troubleshooting instructions closely.    Preventing Electrostatic Discharge  Static electricity can harm system boards. Perform service at an ESD workstation and follow  proper ESD procedure to reduce the risk of damage to components. Quanmax strongly  encourages you to follow proper ESD procedure, which can include wrist straps and smocks,  when servicing equipment.  You can also take the following steps to prevent damage from electrostatic discharge (ESD):  When unpacking a static‐sensitive component from its shipping carton, do not remove  the component’s antistatic packing material until you are ready to install the  component in a computer. Just before unwrapping the antistatic packaging, be sure  you are at an ESD workstation or grounded. This will discharge any static electricity  that may have built up in your body.  When transporting a sensitive component, first place it in an antistatic container or  packaging.  Handle all sensitive components at an ESD workstation. If possible, use antistatic floor  pads and workbench pads.  Handle components and boards with care. Don’t touch the components or contacts  QutePC‐3020 User’s Manual ...
  • Page 7: Instructions For Lithium Battery

    Safety Instructions on a board. Hold a board by its edges or by its metal mounting bracket.  Do not handle or store system boards near strong electrostatic, electromagnetic,  magnetic, or radioactive fields.  Instructions for Lithium Battery    WARNING  Danger of explosion when battery is replaced with incorrect type. Only replace with  the same or equivalent type recommended by the manufacturer.    Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to  the local regulations dealing with the disposal of these special materials (e.g. to the  collecting points for disposal of batteries)  Voltage Ratings  The external power adaptor of the QutePC‐3020 has the following voltage ratings:  Input: 100‐240 VAC, 50‐60 Hz  Output: 65W, +19Vdc, 3.42A    Power Supplies:  BESTEC NA6501WBx (x can be A‐Z or blank)  ACBEL AD9014  QutePC‐3020 User’s Manual ...
  • Page 8: Preface

    Preface Preface  How to Use This Guide  This guide is designed to be used as step‐by‐step instructions for installation, and as a  reference for operation, troubleshooting, and upgrades.    NOTE    Driver downloads and additional information are available under Downloads on our web  site: www.quanmax.com.    Unpacking  When unpacking, follow these steps:  After opening the box, save it and the packing material for possible future  shipment.  Remove all items from the box. If any items listed on the purchase order are  missing, notify Quanmax customer service immediately.  Inspect the product for damage. If there is damage, notify Quanmax customer  service immediately. Refer to “Warranty Policy” for the return procedure.  Regulatory Compliance Statements  This section provides the FCC compliance statement for Class B devices.    FCC Compliance Statement:  This equipment has been tested and found to comply with limits for a Class B digital device,  pursuant to Part 15 of the FCC rules. These limits are designed to provide reason able  protection against harmful interference in residential installations. This equipment  generates, uses, and can radiate radiofrequency energy, and if not installed and used in  accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation.  If this equipment does cause interference to radio or television equipment reception,  which can be determined by turning the equipment off and on, the user is encouraged to  QutePC‐3020 User’s Manual ...
  • Page 9: Warranty Policy

    Preface try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment to an outlet on a circuit different from that to which the  receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.    Changes or modifications not expressly approved by Quanmax could void the user's  authority to operate the equipment.      NOTE    The assembler of a personal computer system may be required to test the system and/or  make necessary modifications if a system is found to cause harmful interference or to be  noncompliant with the appropriate standards for its intended use.    Warranty Policy  Limited Warranty  Quanmax Inc.’s detailed Limited Warranty policy can be found under Support at  www.quanmax.com. Please consult your distributor for warranty verification.  The limited warranty is void if the product has been subjected to alteration, neglect,  misuse, or abuse; if any repairs have been attempted by anyone other than Quanmax or its  authorized agent; or if the failure is caused by accident, acts of God, or other causes  beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall  include any installation, operation, or maintenance of the product other than in  accordance with the user’s guide.  No agent, dealer, distributor, service company, or other party is authorized to change,  modify, or extend the terms of this Limited Warranty in any manner whatsoever. Quanmax  reserves the right to make changes or improvements in any product without incurring any  obligation to similarly alter products previously purchased.    Return Procedure  For any Limited Warranty return, please contact Support at www.quanmax.com and login  to obtain a Return Material Authorization (RMA) Number. If you do not have an account,  send an email to support@quanmax.com to apply for one.  All product(s) returned to Quanmax for service or credit must be accompanied by a Return  QutePC‐3020 User’s Manual ...
  • Page 10: Maintaining Your Computer

    Preface Material Authorization (RMA) Number. Freight on all returned items must be prepaid by  the customer who is responsible for any loss or damage caused by common carrier in  transit. Returns for Warranty must include a Failure Report for each unit, by serial  number(s), as well as a copy of the original invoice showing the date of purchase.  To reduce risk of damage, returns of product must be in a Quanmax shipping container. If  the original container has been lost or damaged, new shipping containers may be obtained  from Quanmax Customer Service at a nominal cost.  Quanmax owns all parts removed from repaired products. Quanmax uses new and  reconditioned parts made by various manufacturers in performing warranty repairs and  building replacement products. If Quanmax repairs or replaces a product, its warranty term  is not extended.  Shipments not in compliance with this Limited Warranty Return Policy will not be accepted  by Quanmax.    Limitation of Liability  In no event shall Quanmax be liable for any defect in hardware, software, loss, or  inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential  damages in connection with or arising out of the performance or use of any product  furnished hereunder. Quanmax’s liability shall in no event exceed the purchase price of the  product purchased hereunder. The foregoing limitation of liability shall be equally  applicable to any service provided by Quanmax or its authorized agent.  Maintaining Your Computer  Environmental Factors  Temperature  The ambient temperature within an enclosure may be greater than room ambient  temperature. Installation in an enclosure should be such that the amount of air flow  required for safe operation is not compromised. Consideration should be given to the  maximum rated ambient temperature. Overheating can cause a variety of problems,  including premature aging and failure of chips or mechanical failure of devices.  If the system has been exposed to abnormally cold temperatures, allow a two‐hour  warm‐up period to bring it up to normal operating temperature before turning it on.  Failure to do so may cause damage to internal components, particularly the hard disk  drive.    Humidity  High‐humidity can cause moisture to enter and accumulate in the system. This  QutePC‐3020 User’s Manual ...
  • Page 11 Preface moisture can cause corrosion of internal components and degrade such properties as  electrical resistance and thermal conductivity. Extreme moisture buildup inside the  system can result in electrical shorts, which can cause serious damage to the system.  Buildings in which climate is controlled usually maintain an acceptable level of  humidity for system equipment. However, if a system is located in an unusually humid  location, a dehumidifier can be used to maintain the humidity within an acceptable  range. Refer to the “Specifications” section of this user’s guide for the operating and  storage humidity specifications.    Altitude  Operating a system at a high altitude (low pressure) reduces the efficiency of the  cooling fans to cool the system. This can cause electrical problems related to arcing  and corona effects. This condition can also cause sealed components with internal  pressure, such as electrolytic capacitors, to fail or perform at reduced efficiency.    Power Protection  The greatest threats to a system’s supply of power are power loss, power spikes, and  power surges caused by electrical storms, which interrupt system operation and/or  damage system components. To protect your system, always properly ground power cables  and one of the following devices.    Surge Protector  Surge protectors are available in a variety of types and usually provide a level of  protection proportional with the cost of the device. Surge protectors prevent voltage  spikes from entering a system through the AC power cord. Surge protectors, however,  do not offer protection against brownouts, which occur when the voltage drops more  than 20 percent below the normal AC line voltage level.    Line Conditioner  Line conditioners go beyond the overvoltage protection of surge protectors. Line  conditioners keep a system’s AC power source voltage at a fairly constant level and,  therefore, can handle brownouts. Because of this added protection, line conditioners  cost more than surge protectors. However, line conditioners cannot protect against a  complete loss of power.    Uninterruptible Power Supply  Uninterruptible power supply (UPS) systems offer the most complete protection  against variations on power because they use battery power to keep the server  QutePC‐3020 User’s Manual ...
  • Page 12 Preface running when AC power is lost. The battery is charged by the AC power while it is  available, so when AC power is lost, the battery can provide power to the system for a  limited amount of time, depending on the UPS system.  UPS systems range in price from a few hundred dollars to several thousand dollars,  with the more expensive unit s allowing you to run larger systems for a longer period  of time when AC power is lost. UPS systems that provide only 5 minutes of battery  power let you conduct an orderly shutdown of the system, but are not intended to  provide continued operation. Surge protectors should be used with all UPS systems,  and the UPS system should be Underwriters Laboratories (UL) safety approved. QutePC‐3020 User’s Manual ...
  • Page 13: Chapter 1    Introduction

    Chapter 1 Chapter 1    Introduction   Overview    The QutePC‐3020 is a surprisingly affordable, space‐saving with a volume of just 0.6‐liter  Nettop that will capably serve everyday computing needs with ease. Featuring the NVIDIA®  ION™ graphics solution coupled with the low‐power Intel® Atom 330 Processor , it perfectly  balances extreme value with functionality. In addition to tackling basic computing needs, it  was designed to perform as an ideal infotainment solution for streaming movies, TV shows,  music and other online media. Its compact design and HDMI interface make it a perfect fit in  the living room, where consumers can connect it to a big screen TV for enjoying digital  media or casual games with family and friends. Whether used as an infotainment center or a  secondary low‐cost PC, the QutePC‐3020’s outstanding value is undeniable.    Checklist  QutePC‐3020  Power Adapter  Power Cord  Desktop Stand  Driver CD  Quick installation Guide  Optional VESA Mounting Kit (with 4x M4X6 flat head screws)    Features  Ultra Quiet, Ultra Small, Ultra‐Low Power  Intel® dual‐core Atom Processor 330  NVIDIA® ION™ GeForce 9400M (MCP79) with support for H.264/AVC  Support DDR2 667/800 SODIMM up to 2GB  1x DVI‐I, 1x HDMI, 1x GbE and HD Audio  2.5” SATA HDD, 3‐in‐1 card reader and 4x USB  802.11 b/g/n Wireless Ethernet  QutePC‐3020 User’s Manual ...
  • Page 14: Product Specifications

    Chapter 1 Product Specifications  Construction  Plastic Housing  Proprietary motherboard, Intel® Atom 330 Processor , NVIDIA  System Board  MCP7A‐ION  Memory  DDR2 667/800 SO‐DIMM up to 2GB  Front I/O panel  1x Phone Jack for Line‐Out  1x Phone Jack for MIC‐In  1x Push button for power on/off  1x Push button for reset  1x POWER LED  1x HDD LED  1x Wifi LED  I/O Panel  1x Card Reader LED  3x USB2.0  3‐in‐1 Card Reader (or optional eSATA)  Rear I/O panel  1x DC JACK for DC9V ~ DC24V input  1x DVI‐I connector for CRT or DVI output (or optional VGA)  1x HDMI  1x USB2.0  1x RJ‐45, GbE port  Storage  1 x 2.5” SATA HDD  Wireless  1x WLAN mini PCIe card (optional)  Input: 100‐240 VAC, 50‐60 Hz  Power Supply  Output: 65W, +19VDC/3.42A output  Expansion Slot  1 x Mini PCI‐Express Socket (802.11 b/g/n)  Cooling  System Fan  Temperature/  Operating: 0°C to 40°C, 0%‐90%, non‐condensing ...
  • Page 15: System Tour

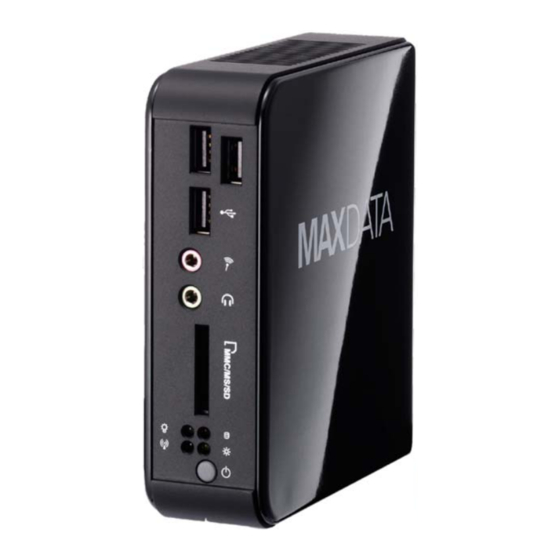

    Chapter 1 System tour  Refer to the diagrams below to identify the components of the system.  Front Panel      Figure 1 Front Panel    USB    The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards,  mouse devices, cameras, and hard disk drives. USB allows many devices to run  simultaneously on a single computer, with some peripheral acting as additional  plug‐in sites or hubs.      MIC‐IN    The microphone jack is designed to connect the microphone used for video  conferencing, voice narrations, or simple audio recordings.  QutePC‐3020 User’s Manual ...
  • Page 16 Chapter 1     Headphone Jack    The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal  to amplified speakers or headphones.      Memory Card Reader  The built‐in memory card reader supports MMC/MS/SD cards used in devices like  digital cameras, MP3 players, mobile phones, and PDAs.    Power LED    The power LED will light when the PC is power‐on.      HDD LED    The hard disk LED blinks when data is being written into or read from the HDD.      WiFi LED  When the data is transferring, the WiFi LED will blink.      Card Reader LED  When the data is transferring, the Card Reader LED will blink.      Power Switch    The power switch allows powering ON and OFF the system.  QutePC‐3020 User’s Manual ...
  • Page 17: Figure 2 Rear Panel

    Chapter 1 Rear Panel    Figure 2 Rear Panel    HDMI  HDMI (High‐Definition Multimedia Interface) is a compact audio/video interface for  transmitting uncompressed digital data.        RTC Reset (CMOS Reset)  To clear the CMOS, use the tip of a pen to press the Reset button briefly (for less than  three seconds).      DVI Port  The Digital Visual Interface (DVI‐I) port supports a high quality VGA‐compatible device  such as a monitor or LCD TV to allow viewing on a larger external display.      USB    The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards,  QutePC‐3020 User’s Manual ...
  • Page 18 Chapter 1 mouse devices, cameras, and hard disk drives. USB allows many devices to run  simultaneously on a single computer, with some peripheral acting as additional  plug‐in sites or hubs.      Ethernet  The eight‐pin RJ‐45 LAN port supports a standard Ethernet cable for connection to a  local network.      DC Jack  The supplied power adapter converts AC power to DC for use with this jack. Power  supplied through this jack supplies power to the PC. To prevent damage to the PC,  always use the supplied power adapter.      Kensington Lock Slot  The slot is used for attaching a lock‐and‐cable apparatus. Locks are generally secured  in place with a key or combination lock attached to a rubberized metal cable. QutePC‐3020 User’s Manual ...
  • Page 19: Chapter 2    Getting Started

    Chapter 2 Chapter 2    Getting Started  Setting up your PC  Connecting the monitor  Connect the HDMI cable from your display to the HDMI port.    Figure 3 Connect the HDMI cable    NOTE    When both HDMI and Headphone Jack are connected, audio is routed through  the analog connectors and not through the HDMI connector.      QutePC‐3020 User’s Manual ...
  • Page 20: Figure 4 Connect The Dvi Cable

    Chapter 2 Connect the DVI cable from your display to the DVI port.    Figure 4 Connect the DVI cable    NOTE    To connect a VGA display, you need the DVI to VGA adapter to connect a display  with a VGA connector.    Connecting USB mouse & keyboard  Your QutePC‐3020 does not come with a keyboard and mouse, but you can use any USB  keyboard or mouse with your computer.    Figure 5 Connecting USB mouse & keyboard  QutePC‐3020 User’s Manual ...
  • Page 21: Figure 6 Network Cable With Rj45 Connector

    Chapter 2   NOTE    Using a third‐party USB mouse or keyboard may require software drivers. Check the  manufacturer’s website for the latest software drivers.    Connecting to a network device  Connect one end of a network cable to the LAN port on the system rear panel and the  other end to a hub or switch.    Figure 6 Network cable with RJ45 connector  Turning on the system  Connect the power adapter cable to the DC jack (DC IN) of the QutePC‐3020  Connect the power cable to the power adapter  Connect the power cable to a power outlet  Press the power switch on the front panel to turn on the system    Figure 7 Turing on the system  QutePC‐3020 User’s Manual ...
  • Page 22: Mounting Your Pc To A Monitor

    Chapter 2 Mounting your PC to a monitor  Secure the VESA mounting kit to your monitor with four screws.    Figure 8 VESA mounting (1)    NOTE    To fasten the metal shelf, your monitor must comply with VESA75 or VESA100  standard. The VESA mounting kit is optional.    Place the QutePC‐3020 on the VESA mounting bracket.  Make sure the air vents are hooked by the VESA mounting bracket and  QutePC‐3020 is solidly secured to the display.    Figure 9 VESA mounting (2)    NOTE    When mounting the unit on the wall with a display. The total weight of the unit  and display won’t exceed 7 Kg.    QutePC‐3020 User’s Manual ...
  • Page 23: Anti-Theft Protection With A Kensington Lock

    Chapter 2 VESA Mounting Kit Dimension    Anti‐theft protection with a Kensington Lock  The QutePC‐3020 has a Kensington lock slot for the Kensington MicroSaver. With the  Kensington MicroSaver, a sturdy steel cable, you can attach your QutePC‐3020 to a  stationary object and protect your PC from theft.    Figure 10 Use a Kensington lock  QutePC‐3020 User’s Manual ...
  • Page 24: Computer Stand

    Chapter 2 Computer Stand  Use the stand to position the computer to your preference and for stability to the computer.  Please do not block the ventilation holes and be sure to leave sufficient space around the  unit for ventilation.    Figure 11 Computer Stand  Computer Stand Dimension    Figure 12 Stand Dimension    QutePC‐3020 User’s Manual ...
  • Page 25: Driver Installation

    Chapter 2 Driver Installation  If your QutePC‐3020 does not come with an operating system pre‐installed, you will need  to install an operating system and the necessary drivers to operate it. After you have  finished assembling your system and connected the appropriate power source, power it up  using the power supply and install the desired operating system.  You can download the drivers for the QutePC‐3020 from the Quanmax website at  www.quanmax.com and install as instructed there. For other operating systems, please  contact Quanmax  QutePC‐3020 User’s Manual ...
  • Page 26: Chapter 3    Ami Bios Setup

    Chapter 3 Chapter 3    AMI BIOS Setup  Overview  This chapter provides a description of the AMI BIOS. The BIOS setup menus and available  selections may vary from those of your product. For specific information on the BIOS for  your product, please contact MAXDATA.    NOTE: The BIOS menus and selections for your product may vary from those in  this chapter. For the BIOS manual specific to your product, please contact  MAXDATA    AMI's ROM BIOS provides a built‐in Setup program, which allows the user to modify the  basic system configuration and hardware parameters.    The modified data will be stored in  a battery‐backed CMOS, so that data will be retained even when the power is turned off.    In general, the information saved in the CMOS RAM will not need to be changed unless  there is a configuration change in the system, such as a hard drive replacement or when a  device is added.  It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If  this happens you will need to reconfigure your BIOS settings.    QutePC‐3020 User’s Manual ...
  • Page 27: Main Menu

    Chapter 3 Main Menu  The BIOS Setup is accessed by pressing the DEL key after the Power‐On Self‐Test (POST)  memory test begins and before the operating system boot begins. Once you enter the BIOS  Setup Utility, the Main Menu will appear on the screen. The Main Menu provides System  Overview information and allows you to set the System Time and Date. Use the “<” and “>”  cursor keys to navigate between menu screens.  Table 2 BIOS Main Menu  BIOS SETUP UTILITY  M a i n           A d v a n c e d           B o o t           C h i p s e t         P o w e r           S e c u r i t y           E x i t   ...
  • Page 28: Advanced Menu

    Chapter 3 Options: Disabled, Auto  DMA Mode [Auto]  Options: Auto  S.M.A.R.T [Auto]  SMART stands for Smart Monitoring, Analysis, and Reporting Technology. It allows AMIBIOS  to use the SMART protocol to report server system information over a network.    Options: Auto, Disabled, Enabled  Table 4 System Information  BIOS SETUP UTILITY  M a i n           A d v a n c e d           B o o t           C h i p s e t         P o w e r           S e c u r i t y           E x i t ...
  • Page 29: Table 6 Cpu Configuration

    Chapter 3 Table 6 CPU Configuration  BIOS SETUP UTILITY  M a i n           A d v a n c e d           B o o t           C h i p s e t         P o w e r           S e c u r i t y           E x i t ...
  • Page 30: Table 8 Hardware Health Configuration

    Chapter 3 USB 2.0 Controller Mode [HiSpeed]  Configures the USB 2.0 controller in HiSpeed (480Mbps) or FullSpeed(12Mbps)  Options: HiSpeed, FullSpeed  Audio Controller [Enabled]  Options: Disabled, Internal codec + External Codec, Internal codec, External Codec  Onboard LAN Controller [Enabled]  Options: Enabled, Disabled  PXE rom boot support [Disabled]  Options: Disabled, Enabled  > On‐Chip ATA Configuration  SATA Mode Select [SATA Mode]  Options: SATA Mode, AHCI Mode    Table 8 Hardware Health Configuration  BIOS SETUP UTILITY  M a i n           A d v a n c e d           B o o t           C h i p s e t         P o w e r           S e c u r i t y           E x i t ...
  • Page 31: Boot Menu

    Chapter 3 Boot Menu  Table 9 Boot Menu  BIOS SETUP UTILITY  M a i n           A d v a n c e d           B o o t           C h i p s e t         P o w e r           S e c u r i t y           E x i t   ...
  • Page 32: Chipset Menu

    Chapter 3 Chipset Menu  Table 10 Chipset Menu  BIOS SETUP UTILITY  M a i n           A d v a n c e d           B o o t           C h i p s e t         P o w e r           S e c u r i t y           E x i t   ...
  • Page 33: Security Menu

    Chapter 3 Options: No, Yes  Restore On AC Power Loss [Power Off]  Options: Power Off, Power On, Last State  USB Power Status [5V]  Options: 5V, 5VSB  Resume By Onboard LAN [Disabled]  Options: Disabled, Enabled  Resume On RTC Alarm [Disabled]  Options: Disabled, Enabled    Security Menu  Table 12 Security Menu  BIOS SETUP UTILITY  M a i n           A d v a n c e d           B o o t           C h i p s e t         P o w e r           S e c u r i t y           E x i t   ...
  • Page 34: Exit Menu

    Chapter 3 Exit Menu  Table 13 Exit Menu  BIOS SETUP UTILITY  M a i n           A d v a n c e d           B o o t           C h i p s e t         P o w e r           S e c u r i t y           E x i t   ...
