Summary of Contents for Quanmax QBOX-3300 Series

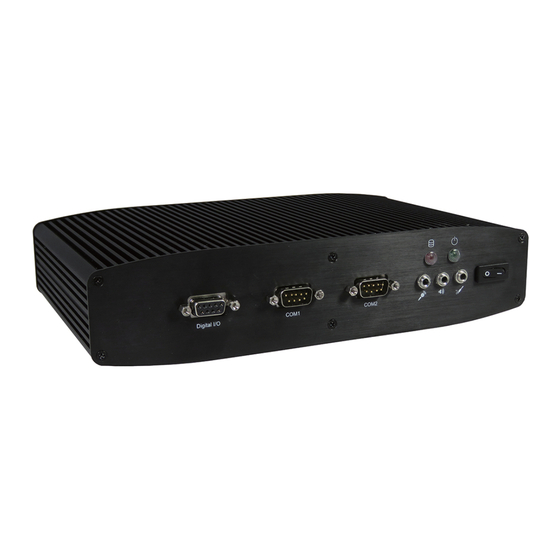

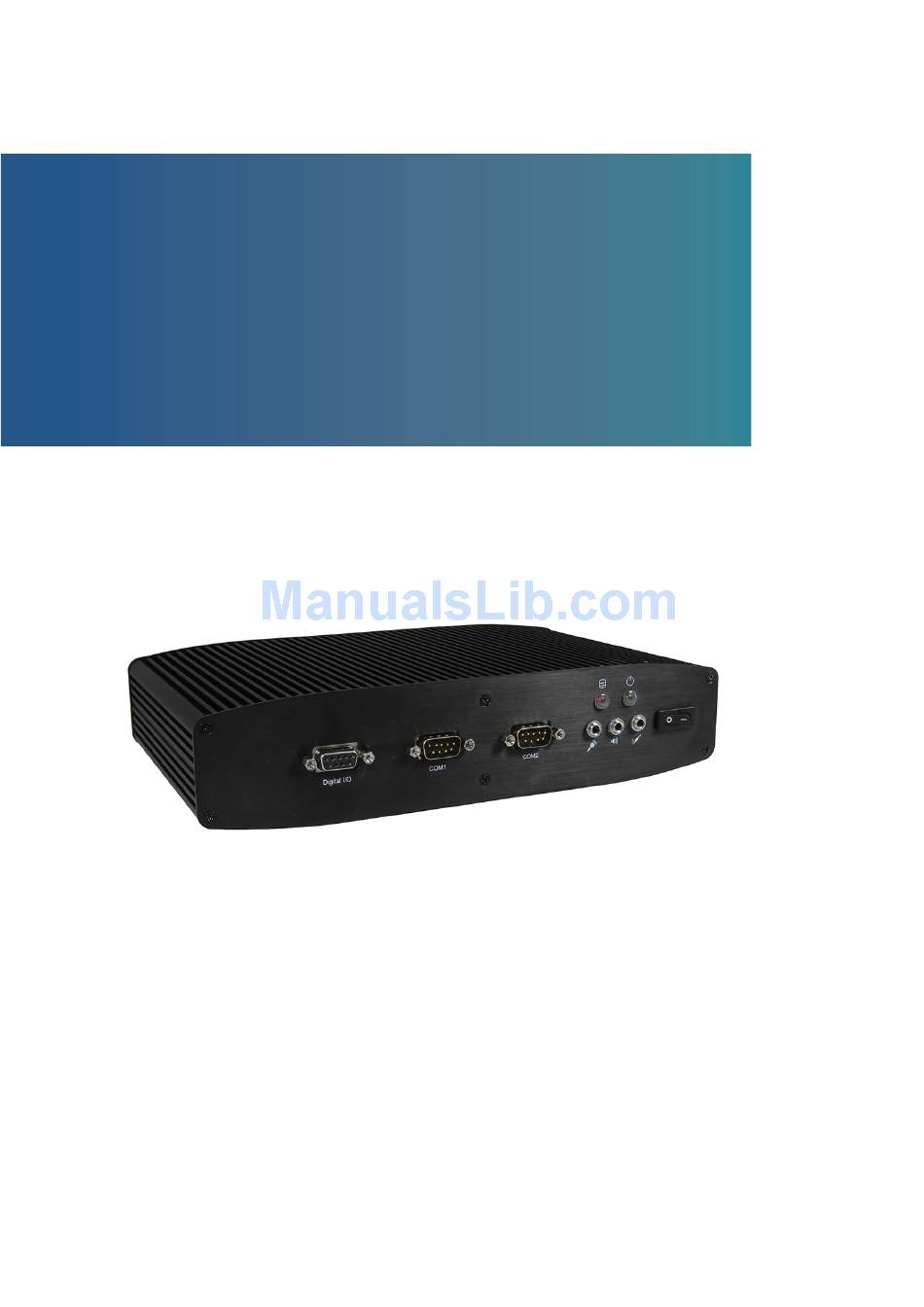

- Page 1 QBOX-3300 Series Fanless BOX PC with 4th Generation Intel® Haswell / 5th Generation Intel® Broadwell ULT Core™ Processor User’s Guide...
-
Page 2: Table Of Contents
Chapter 3 AMI BIOS Setup..................28 Overview..................... 28 Main Menu ..................29 Advanced Menu.................. 30 Power Menu..................40 Boot Menu ..................41 Security Menu..................42 Save & Exit Menu ................43 Chapter 4 Driver Installation .................. 45 QBOX-3300 Series User’s Manual... -
Page 3: Figures & Tables
Figure 13 DIN-Rail mounting (1) ..............26 Figure 14 DIN-Rail mounting (2) ..............26 Figure 15 DIN-Rail mounting (3) ..............27 Table 1 QBOX-3300 Series product specifications ........14 Table 2 BIOS Main Menu ................29 Table 3 Advanced Menu................30 Table 4 Advanced Menu –... - Page 4 Figures & Tables Table 16 Security Menu ................42 Table 17 Save & Exit Menu ................ 43 QBOX-3300 Series User’s Manual...
-
Page 5: Safety Instructions
Turn off system power, turn off the power supply, and then disconnect the power cord from its source before removing the chassis cover. Turning off the system power switch does not remove power to components. QBOX-3300 Series User’s Manual... -
Page 6: When Working Inside A Computer
ESD procedure, which can include wrist straps and smocks, when servicing equipment. You can also take the following steps to prevent damage from electrostatic discharge (ESD): When unpacking a static-sensitive component from its shipping carton, do not QBOX-3300 Series User’s Manual... -
Page 7: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QBOX-3300 Series has the following voltage ratings: Input: 100-240 VAC, 50-60 Hz Output: 60W, +12VDC/5.0A output... -
Page 8: Preface
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the QBOX-3300 Series User’s Manual... -
Page 9: Maintaining Your Computer
However, if a system is located in an unusually humid location, a dehumidifier can be used to maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for QBOX-3300 Series User’s Manual... -
Page 10: Power Protection
UPS system. UPS systems range in price from a few hundred dollars to several thousand dollars, with the more expensive unit s allowing you to run larger systems for a QBOX-3300 Series User’s Manual... - Page 11 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QBOX-3300 Series User’s Manual...
-
Page 12: Chapter 1 Introduction
3x Audio Jack, 2x mPCIe socket for possible peripheral applications and expansions. Enclosed in a high reliable rugged case integrated with passive cooling design, the QBOX-3300 Series not only has great resistance to EMI, cold, heat or other harsh conditions, but also offers noise-free operation for a pleasant environment. Checklist... - Page 13 Chapter 1 Fanless design 1x 2.5” SATA HDD / SSD, 1x mSATA QBOX-3300 Series User’s Manual...
-
Page 14: Table 1 Qbox-3300 Series Product Specifications
Programmable WDT to generate System reset event Option TPM support Dimensions 250 x 150 x 55 mm / 9.84" x 5.91" x 2.17" (WxDxH) Mounting VESA mount, Din Rail Mount Certifications CE, FCC Class A Table 1 QBOX-3300 Series product specifications QBOX-3300 Series User’s Manual... -
Page 15: System Tour
The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings. Line-IN The Line-in jack is designed to take input from a higher-powered sound source. COM 1~2 D-Sub 9 pin connector QBOX-3300 Series User’s Manual... -
Page 16: Figure 2 Rear Panel
DP is a display interface used to connect a video source to a display device such as a computer monitor or a television set. Wireless LAN Antenna (Optional) The reserved holes for wireless antenna connections. QBOX-3300 Series User’s Manual... -
Page 17: Mechanical Dimensions
Chapter 1 Mechanical Dimensions 250 x 150 x 55 mm (W x D x H) Figure 3 Mechanical Dimensions QBOX-3300 Series User’s Manual... -
Page 18: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your PC Connecting the monitor Connect the DP cable from your display to the DP port. Figure 4 DP QBOX-3300 Series User’s Manual... -
Page 19: Figure 5 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your QBOX-3300 Series does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. USB 3.0 Figure 5 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 20: Figure 6 Rj45 Connector
Figure 6 RJ45 connector COM ports COM ports with the pin definitions. COM 2 COM 1 COM1~2 RS-232 / 422 / 485 Port DB-9 Half Duplex Full Duplex RS-232 RS-422 RS-485 RS-485 DATA- DATA+ Figure 7 COM ports QBOX-3300 Series User’s Manual... -
Page 21: Figure 8 Dio Ports
Digital Input / Output D-SUB 9P Signal Name Digital Input 0 Digital Output 0 Digital Input 1 Digital Output 1 Digital Input 2 Digital Output 2 Digital Input 3 Digital Output 3 Figure 8 DIO ports QBOX-3300 Series User’s Manual... -
Page 22: Figure 9 Turning On The System
Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system On/Off DC Jack Figure 9 Turning on the system QBOX-3300 Series User’s Manual... -
Page 23: Mounting Your Pc To A Monitor
Mounting your PC to a monitor Secure the VESA mounting kit to your monitor with four screws. Figure 10 VESA mounting (1) NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. QBOX-3300 Series User’s Manual... -
Page 24: Figure 11 Vesa Mounting (2)
Chapter 2 Place the QBOX-3300 Series onto the monitor and secure it with the hand screw knob properly on VESA mount kit as shown below. Figure 11 VESA mounting (2) QBOX-3300 Series User’s Manual... -
Page 25: Vesa Mount Drawing
Chapter 2 VESA Mount Drawing Figure 12 VESA mount QBOX-3300 Series User’s Manual... -
Page 26: Install Your Din-Rail Mounting Kit
M3X4 flat head screws each. Figure 13 DIN-Rail mounting (1) Place the QBOX-3300 Series onto the VESA mounting kit and secure it with the hand screw knob properly on VESA mount kit as shown below. Figure 14 DIN-Rail mounting (2) -
Page 27: Figure 15 Din-Rail Mounting (3)
Chapter 2 Click the system onto the DIN rail as shown below. Figure 15 DIN-Rail mounting (3) QBOX-3300 Series User’s Manual... -
Page 28: Chapter 3 Ami Bios Setup
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. QBOX-3300 Series User’s Manual... -
Page 29: Main Menu
8192 MB (DR3) F2: Previous Values Frequency 1600 Mhz F3: Optimized Defaults System Date [Wed 07/13/2016] F4: Save & Reset System Time [13:24:31] ESC: Exit Access Levek Administrator Version 2.17.1246. Copyright (C) 2015, American Megatrends, Inc. QBOX-3300 Series User’s Manual... -
Page 30: Advanced Menu
Options: Disabled, Enabled Onboard LAN1 Boot Options: Disabled, Enabled Onboard LAN2 Controller Options: Disabled, Enabled Onboard LAN2 Boot Options: Disabled, Enabled Onboard LAN3 Controller Options: Disabled, Enabled Onboard LAN3 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled QBOX-3300 Series User’s Manual... -
Page 31: Table 4 Advanced Menu – Display Configuration
DVMT Pre-Allocated Options: 32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, 512M, 1024M DVMT Total Gfx Mem Options: 128M, 256M, MAX Primary IGFX Boot Display Options: VBIOS Default, DP1, DP2 QBOX-3300 Series User’s Manual... -
Page 32: Table 5 Advanced Menu – Super Io Configuration
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; Serial Port 1 Type Options: RS232, RS422, RS485 QBOX-3300 Series User’s Manual... -
Page 33: Table 7 Advanced Menu – Super Io Configuration – Serial Port
IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12; Serial Port 2 Type Options: RS232, RS422, RS485 QBOX-3300 Series User’s Manual... -
Page 34: Table 8 Advanced Menu – Cpu Chipset Configuration
Options: Disabled, Enabled Hyper-threading Options: Disabled, Enabled VT-d Options: Disabled, Enabled Active Processor Cores Options: All, 1 Limit CPUID Maximum Options: Disabled, Enabled Execute Disable Bit Options: Disabled, Enabled Intel ® Virtualization Tech Options: Disabled, Enabled QBOX-3300 Series User’s Manual... -
Page 35: Table 9 Advanced Menu – Sata Configuration
F4: Save & Reset Port 1 [Enabled] ESC: Exit Version 2.17.1246. Copyright (C) 2015, American Megatrends, Inc. SATA Controller(s) Options: Enabled, Disabled SATA Mode Selection Options: AHCI SATA Controller Speed Options: Default, Gen1, Gen2, Gen3 Port Options: Disabled, Enabled QBOX-3300 Series User’s Manual... -
Page 36: Table 10 Advanced Menu – Usb Configuration
Version 2.17.1246. Copyright (C) 2015, American Megatrends, Inc. Legacy USB Support Options: Enabled, Disabled, Auto XHCI Legacy Support Options: Enabled, Disabled XHCI hand-off Options: Enabled, Disabled EHCI hand-off Options: Disabled, Enabled USB Mass Storage Driver Support Options: Disabled, Enabled QBOX-3300 Series User’s Manual... -
Page 37: Table 11 Advanced Menu – Intel Rapid Start Technology
: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Reset ESC: Exit Version 2.17.1246. Copyright (C) 2015, American Megatrends, Inc. Intel® Rapid Start Technology Options: Disabled, Enabled QBOX-3300 Series User’s Manual... -
Page 38: Table 12 Advanced Menu – Dio Configuration
Version 2.17.1246. Copyright (C) 2015, American Megatrends, Inc. User Configuration Options: Disabled, Enabled DO_1 Options: Output Low, Output High DO_2 Options: Output Low, Output High DO_3 Options: Output Low, Output High DO_4 Options: Output Low, Output High QBOX-3300 Series User’s Manual... -
Page 39: Table 13 Advanced Menu – H/W Monitor
: +1.728 V F1: General Help +VIN : +11.808 V F2: Previous Values : +5.017 V +3.3V : +3.324 V F3: Optimized Defaults F4: Save & Reset ESC: Exit Version 2.17.1246. Copyright (C) 2015, American Megatrends, Inc. QBOX-3300 Series User’s Manual... -
Page 40: Power Menu
Options: Power Off, Power On, Last State Power Saving Mode Options: Disabled, EUP Enabled, DeepSx Enabled Resume By PCIE Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled Watchdog Timer Configuration WDT Function [Disabled] Options: Disabled, Enabled QBOX-3300 Series User’s Manual... -
Page 41: Boot Menu
Version 2.17.1246. Copyright (C) 2015, American Megatrends, Inc. Full Screen LOGO Display Options: Disabled, Enabled Bootup Numlock State Options: On, Off CSM Support Options: Enabled, Disabled Boot Option Filter Options: UEFI and Legacy, Legacy only, UEFI only QBOX-3300 Series User’s Manual... -
Page 42: Security Menu
HDD Security Configuration: F4: Save & Reset P1: TS128GSSD420 ESC: Exit > Secure Boot menu Version 2.17.1246. Copyright (C) 2015, American Megatrends, Inc. Secure Boot menu Secure Boot Options: Disabled, Enabled Secure Boot Mode Options: Standard, Custom QBOX-3300 Series User’s Manual... -
Page 43: Save & Exit Menu
Discards changes done so far to any of the setup values. This option allows you to discard the selections you made and restore the previously saved values. After selecting this option, a confirmation appears. Select [Yes] to discard any changes and load the previously saved values. Load Optimal Defaults QBOX-3300 Series User’s Manual... - Page 44 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QBOX-3300 Series User’s Manual...
-
Page 45: Chapter 4 Driver Installation
You can download the drivers for the QBOX-3300 Series from our website and install as instructed there. For other operating systems, please contact us. QBOX-3300 Series User’s Manual...
