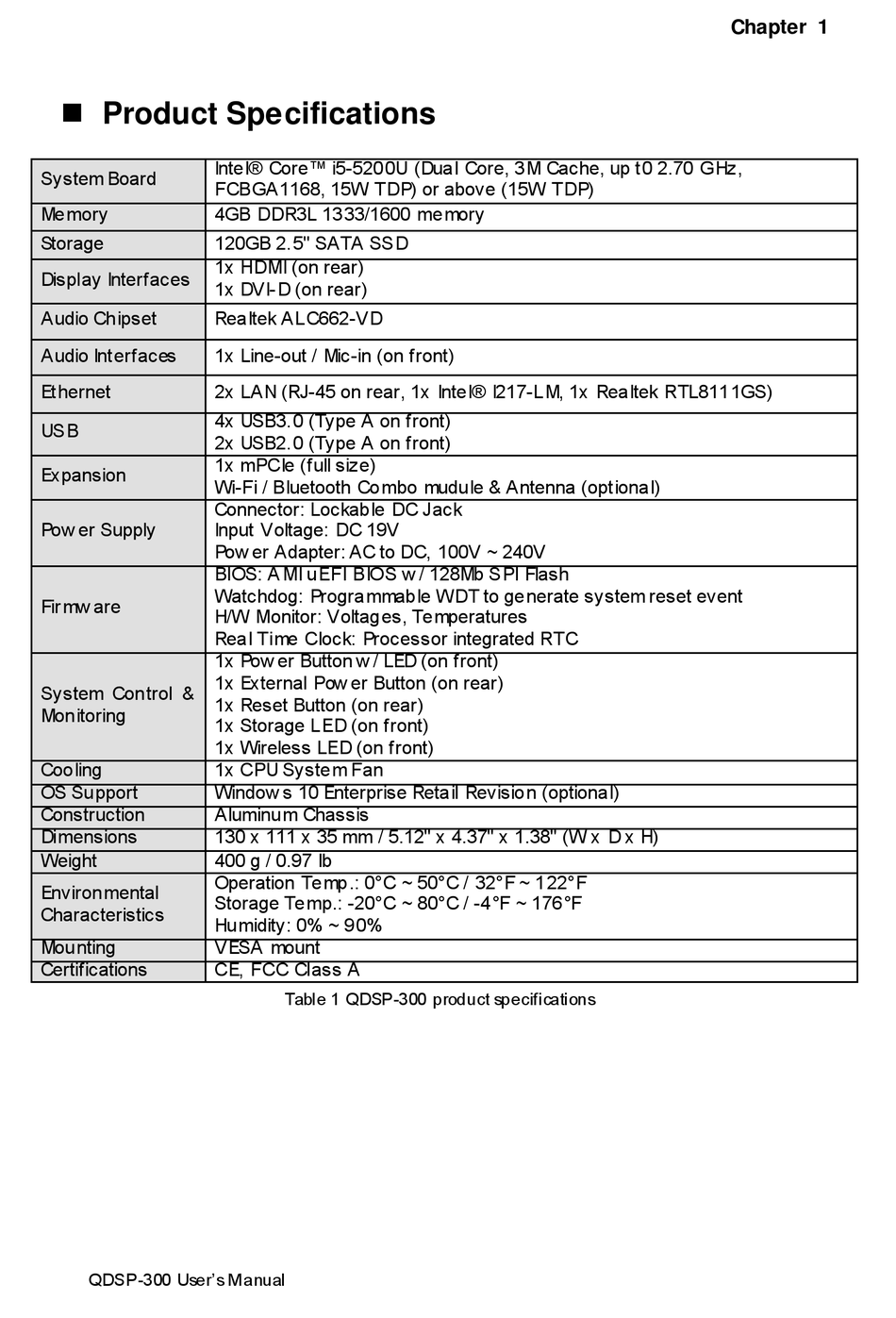

 Product Specifications
System Board
Memory
Storage
Display Interfaces
Audio Chipset
Audio Interfaces
Ethernet
USB
Expansion
Pow er Supply
Fir mw are
System Control &
Monitoring
Cooling
OS Support
Construction
Dimensions
Weight
Environmental
Characteristics
Mounting
Certifications
QDSP-300 User's Manual
Intel® Core™ i5-5200U (Dual Core, 3M Cache, up t0 2.70 GHz,
FCBGA1168, 15W TDP) or above (15W TDP)
4GB DDR3L 1333/1600 memory
120GB 2.5" SATA SSD
1x HDMI (on rear)
1x DVI- D (on rear)
Realtek ALC662-VD
1x Line-out / Mic-in (on front)
2x LAN (RJ-45 on rear, 1x Intel® I217-LM, 1x Realtek RTL8111GS)
4x USB3.0 (Type A on front)
2x USB2.0 (Type A on front)
1x mPCIe (full size)
Wi-Fi / Bluetooth Combo mudule & Antenna (optional)
Connector: Lockable DC Jack
Input Voltage: DC 19V
Pow er Adapter: AC to DC, 100V ~ 240V
BIOS: A MI uEFI BIOS w / 128Mb SPI Flash
Watchdog: Programmable WDT to generate system reset event
H/W Monitor: Voltages, Temperatures
Real Time Clock: Processor integrated RTC
1x Pow er Button w / LED (on front)
1x External Pow er Button (on rear)
1x Reset Button (on rear)
1x Storage LED (on front)
1x Wireless LED (on front)
1x CPU System Fan
Window s 10 Enterprise Retail Revision (optional)
Aluminum Chassis
130 x 111 x 35 mm / 5.12" x 4.37" x 1.38" (W x D x H)
400 g / 0.97 lb
Operation Temp.: 0°C ~ 50°C / 32°F ~ 122°F
Storage Temp.: -20°C ~ 80°C / -4°F ~ 176°F
Humidity: 0% ~ 90%
VESA mount
CE, FCC Class A
Table 1 QDSP-300 product specifications
