Summary of Contents for Quanmax QBOX-2080 Series

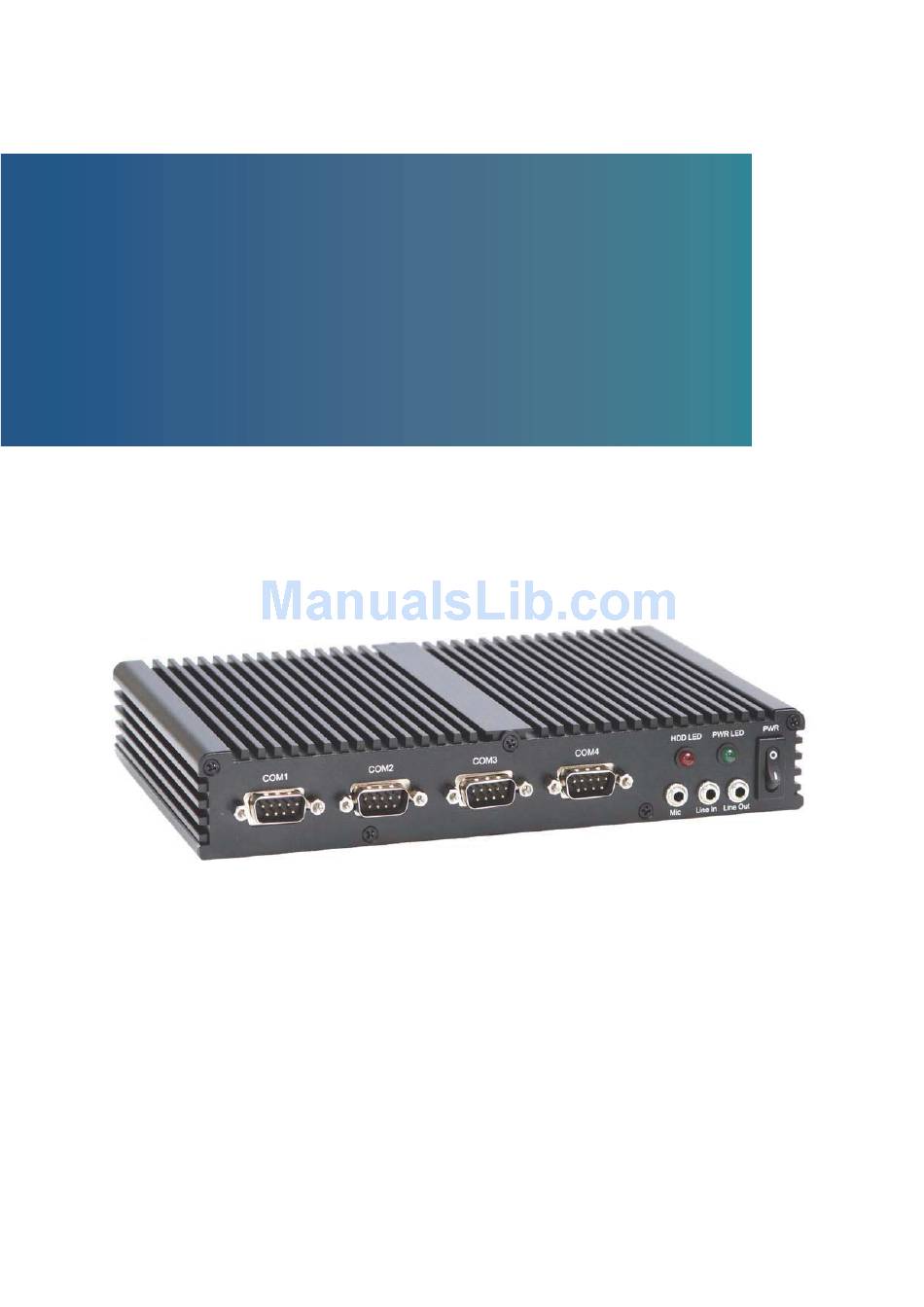

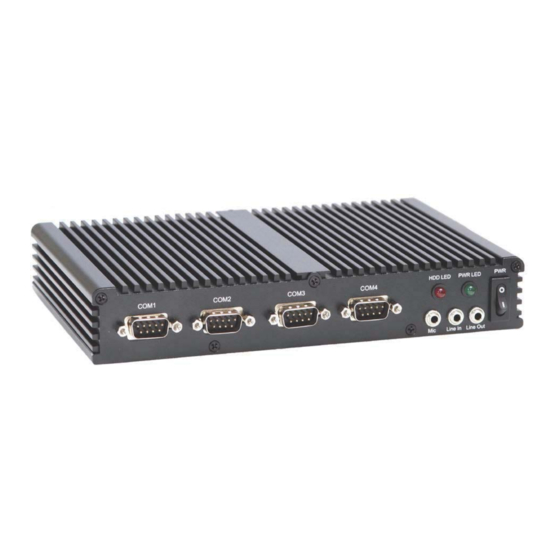

- Page 1 QBOX-2080 Series Standard / Extended Temperature Fanless BOX PC with Intel® Braswell SoC Processor, Celeron® N3160 User’s Guide...
-
Page 2: Table Of Contents
Chapter 3 AMI BIOS Setup..................24 Overview..................... 24 Main Menu ..................25 Advanced Menu.................. 26 Power Menu..................37 Security Menu..................38 Boot Menu ..................39 Save & Exit Menu ................40 Chapter 4 Driver Installation .................. 42 QBOX-2080 Series User’s Manual... -
Page 3: Figures & Tables
Figure 9 VESA mounting (1) ..............21 Figure 10 VESA mounting (2) ..............22 Figure 11 VESA mount................23 Table 1 QBOX-2080 Series product specifications ........12 Table 2 BIOS Main Menu ................25 Table 3 Advanced Menu................26 Table 4 Advanced Menu – Display Configuration........27 Table 5 Advanced Menu –... -
Page 4: Safety Instructions
Turn off system power, turn off the power supply, and then disconnect the power cord from its source before removing the chassis cover. Turning off the system power switch does not remove power to components. QBOX-2080 Series User’s Manual... -
Page 5: When Working Inside A Computer
ESD procedure, which can include wrist straps and smocks, when servicing equipment. You can also take the following steps to prevent damage from electrostatic discharge (ESD): When unpacking a static-sensitive component from its shipping carton, do not QBOX-2080 Series User’s Manual... -
Page 6: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QBOX-2080 Series has the following voltage ratings: Input: 100-240 VAC, 50-60 Hz Output: 60W, +12VDC/5.0A output... -
Page 7: Preface
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the QBOX-2080 Series User’s Manual... -
Page 8: Maintaining Your Computer
However, if a system is located in an unusually humid location, a dehumidifier can be used to maintain the humidity within an acceptable range. Refer to the “Specifications” section of this user’s guide for QBOX-2080 Series User’s Manual... -
Page 9: Power Protection
UPS system. UPS systems range in price from a few hundred dollars to several thousand dollars, with the more expensive unit s allowing you to run larger systems for a QBOX-2080 Series User’s Manual... - Page 10 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QBOX-2080 Series User’s Manual...
-
Page 11: Chapter 1 Introduction
Introduction Overview QBOX-2080 Series is a fanless BOX PC boasting high computing and graphics performance, based on Intel®'s new Braswell Quad Core SoC Processor, Celeron® N3160, as well as Intel® HD Graphics 400 integrated. In addition, it supports 1x DP, 1x HDMI, 4x USB 3.0, 4x COM, 1x 8-bit DIO, 3x Audio Jack, 2x mPCIe socket for... -
Page 12: Table 1 Qbox-2080 Series Product Specifications
Programmable WDT to generate System reset event Option Infineon SLB9635 for TPM support Dimensions 210 x 135 x 35mm / 8.27" x 5.31" x 1.38" (WxDxH) Mounting Cradle VESA mount Certifications CE, FCC Class A Table 1 QBOX-2080 Series product specifications QBOX-2080 Series User’s Manual... -
Page 13: System Tour
The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings. Line-IN The Line-in jack is designed to take input from a higher-powered sound source. COM 1~4 D-Sub 9 pin connector QBOX-2080 Series User’s Manual... -
Page 14: Figure 2 Rear Panel
DP is a display interface used to connect a video source to a display device such as a computer monitor or a television set. Digital I/O This interface used to connect digital signals for input and output purposes. Wireless LAN Antenna (Optional) The reserved holes for wireless antenna connections. QBOX-2080 Series User’s Manual... -
Page 15: Chapter 2 Getting Started
Chapter 2 Chapter 2 Getting Started Setting up your PC Connecting the monitor Connect the HDMI / DP cable from your display to the HDMI / DP port. HDMI DP Figure 3 HDMI / DP QBOX-2080 Series User’s Manual... -
Page 16: Figure 4 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your QBOX-2080 Series does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. USB3.0 Figure 4 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 17: Figure 5 Rj45 Connector
Chapter 2 Connecting to a network device Connect one end of a network cable to the LAN port on the system rear panel and the other end to a hub or switch. RJ45 Figure 5 RJ45 connector QBOX-2080 Series User’s Manual... -
Page 18: Figure 6 Com Ports
COM ports with the pin definitions. COM3 COM4 COM 2 COM 1 COM1~2 RS-232 / 422 / 485 Port DB-9 Half Duplex Full Duplex RS-232 RS-422 RS-485 RS-485 DATA- DATA+ COM3~4 RS-232 Port DB-9 RS-232 Figure 6 COM ports QBOX-2080 Series User’s Manual... -
Page 19: Figure 7 Com Ports
Digital Input / Output D-SUB 9P Signal Name Digital Input 0 Digital Output 0 Digital Input 1 Digital Output 1 Digital Input 2 Digital Output 2 Digital Input 3 Digital Output 3 Figure 7 COM ports QBOX-2080 Series User’s Manual... -
Page 20: Figure 8 Turning On The System
Chapter 2 Turning on the system Connect the power adapter cable to the DC jack (DC IN) of QBOX-2080 Series Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system... -
Page 21: Mounting Your Pc To A Monitor
Mounting your PC to a monitor Secure the VESA mounting kit to your monitor with four screws. Figure 9 VESA mounting (1) NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. QBOX-2080 Series User’s Manual... -
Page 22: Figure 10 Vesa Mounting (2)
Chapter 2 Place the QBOX-2080 Series onto the monitor and secure it with the hand screw knob properly on VESA mount kit as shown below. Figure 10 VESA mounting (2) QBOX-2080 Series User’s Manual... -
Page 23: Vesa Mount Drawing
Chapter 2 VESA Mount Drawing Figure 11 VESA mount QBOX-2080 Series User’s Manual... -
Page 24: Chapter 3 Ami Bios Setup
It is possible for the CMOS battery to fail, which will cause data loss in the CMOS only. If this happens you will need to reconfigure your BIOS settings. QBOX-2080 Series User’s Manual... -
Page 25: Main Menu
4096 MB (DDR3L) F2: Previous Values Frequency 1600 MHz F3: Optimized Defaults System Date [Mon 06/13/2016] F4: Save & Reset System Time [15:02:20] ESC: Exit Access Level Administrator Version 2.17.1249. Copyright (C) 2016, American Megatrends, Inc. QBOX-2080 Series User’s Manual... -
Page 26: Advanced Menu
Version 2.17.1249. Copyright (C) 2016, American Megatrends, Inc. Onboard LAN 1 Controller Options: Disabled, Enabled Onboard LAN 1 Boot Options: Disabled, Enabled Onboard LAN 2 Controller Options: Disabled, Enabled Onboard LAN 2 Boot Options: Disabled, Enabled Audio Controller Options: Disabled, Enabled QBOX-2080 Series User’s Manual... -
Page 27: Table 4 Advanced Menu – Display Configuration
DVMT Pre-Allocated Options: 32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, 512M DVMT Total Gfx Mem Options: 128M, 256M, Max Primary IGFX Boot Display Options: VBIOS Default, DP, HDMI, VGA/LVDS QBOX-2080 Series User’s Manual... -
Page 28: Table 5 Advanced Menu – Super Io Configuration
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Serial Port 1 Type Options: RS232, RS422, RS485 QBOX-2080 Series User’s Manual... -
Page 29: Table 7 Advanced Menu – Super Io Configuration – Serial Port
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12 Serial Port 2 Type Options: RS232, RS422, RS485 QBOX-2080 Series User’s Manual... -
Page 30: Configuration
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; QBOX-2080 Series User’s Manual... -
Page 31: Table 9 Advanced Menu – Super Io Configuration – Serial Port
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; QBOX-2080 Series User’s Manual... -
Page 32: Table 10 Advanced Menu – Cpu Chipset Configuration
Version 2.17.1249. Copyright (C) 2016, American Megatrends, Inc. EIST Options: Disabled, Enabled CPU C state Report Options: Disabled, Enabled Max CPU C-state Options: C7, C6, C1 SOix Options: Disabled, Enabled Limit CPUID Maximum Options: Disabled, Enabled Intel ® Virtualization Technology Options: Disabled, Enabled QBOX-2080 Series User’s Manual... -
Page 33: Table 11 Advanced Menu – Sata Configuration
F4: Save & Reset ESC: Exit Version 2.17.1249. Copyright (C) 2016, American Megatrends, Inc. SATA Controller Options: Enabled, Disabled SATA Interface Speed Options: Gen1, Gen2, Gen3 Port 1 Options: Enabled, Disabled Port 2 Options: Enabled, Disabled QBOX-2080 Series User’s Manual... -
Page 34: Table 12 Advanced Menu – Usb Configuration
Version 2.17.1249. Copyright (C) 2016, American Megatrends, Inc. Legacy USB Support Options: Enabled, Disabled, Auto XHCI Legacy Support Options: Enabled, Disabled XHCI hand-off Options: Enabled, Disabled USB Mass Storage Driver Support Options: Disabled, Enabled Port 60/64 Emulation Options: Disabled, Enabled QBOX-2080 Series User’s Manual... -
Page 35: Table 13 Advanced Menu – Dio Configuration
Version 2.17.1249. Copyright (C) 2016, American Megatrends, Inc. User Configuration Options: Enabled, Disabled DO_1 Options: Output Low, Output High DO_2 Options: Output Low, Output High DO_3 Options: Output Low, Output High DO_4 Options: Output Low, Output High QBOX-2080 Series User’s Manual... -
Page 36: Table 14 Advanced Menu – H/W Monitor
F3: Optimized Defaults : +5.066 V F4: Save & Reset +VMEM : +1.357 V ESC: Exit Version 2.17.1249. Copyright (C) 2016, American Megatrends, Inc. CPU Warning Temperature Options: Disabled, 80 C, 85 C, 90 C, 95 C QBOX-2080 Series User’s Manual... -
Page 37: Power Menu
Resume By LAN Device Options: Disabled, Enabled Resume By PCI-E Device Options: Disabled, Enabled Resume By Ring Device Options: Disabled, Enabled Resume By RTC Alarm Options: Disabled, Enabled Watchdog Timer Configuration WDT Function [Disabled] Options: Disabled, Enabled QBOX-2080 Series User’s Manual... -
Page 38: Security Menu
Maximum length 20 +/-: Change Opt. F1: General Help Administrator Password F2: Previous Values User Password F3: Optimized Defaults F4: Save & Reset HDD Security Configuration: ESC: Exit PO: TS32GSSD420K Version 2.17.1249. Copyright (C) 2016, American Megatrends, Inc. QBOX-2080 Series User’s Manual... -
Page 39: Boot Menu
CSM Support Options: Enabled, Disabled Boot Option Filter Options: UEFI and Legacy, Legacy only, UEFI only Boot Option #1 Options: PO: TS32GSSD420K, Disabled Hard Drive BBS Priorities Boot Option #1 [PO: TS32GSSD420K] Options: PO: TS32GSSD420K, Disabled QBOX-2080 Series User’s Manual... -
Page 40: Save & Exit Menu
Load Optimal Default values for all the setup values. This option allows you to load optimal default values for each of the parameters on the Setup menus, which will provide the best performance settings for your system. The F9 key can be used for QBOX-2080 Series User’s Manual... - Page 41 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QBOX-2080 Series User’s Manual...
-
Page 42: Chapter 4 Driver Installation
You can download the drivers for the QBOX-2080 Series from our website and install as instructed there. For other operating systems, please contact us. QBOX-2080 Series User’s Manual...
