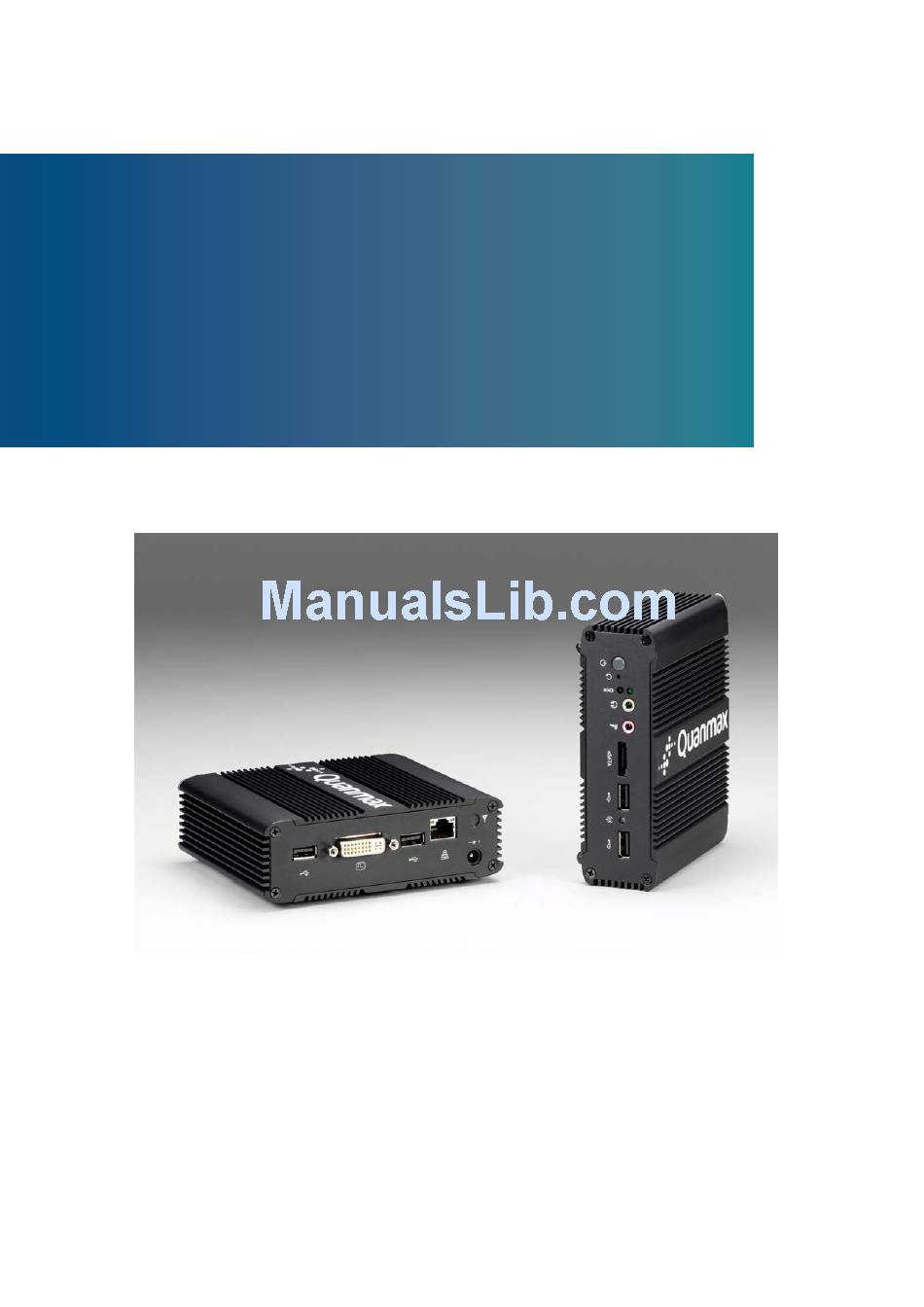

- Page 1 QBOX-1000 0.6-Liter Fanless Box PC with Intel® Atom Processor N270 User’s Guide QBOX-1000 User’s Manual...
- Page 2 © 2009 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
Advanced Menu ................26 Boot Menu ..................28 Chipset Menu ................... 29 Power Menu ..................30 Security Menu .................. 31 Exit Menu ..................31 Chapter 4 Driver Installation .................. 33 QBOX-1000 User’s Manual... -
Page 4: Figures
Figure 8 VESA mounting (1) ..................23 Figure 9 VESA mounting (2) ..................23 Tables Table 1 QBOX-1000 product specifications .............. 14 Table 2 BIOS Main Menu ..................25 Table 3 IDE Device Setting Menu ................25 Table 4 System Information ..................26 Table 5 Advanced Menu ................... -
Page 5: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken;... -
Page 6: When Working Inside A Computer
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 7: Instructions For Lithium Battery
(e.g. to the collecting points for disposal of batteries) Voltage Ratings The external power adaptor of the QBOX-1000 has the following voltage ratings: Input: 100-240 VAC, 50-60 Hz Output: 30W, +12-19Vdc, 2.5A-1.58A... -
Page 8: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 9: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 10: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. -
Page 11: Power Protection
20 percent below the normal AC line voltage level. Line Conditioner Line conditioners go beyond the overvoltage protection of surge protectors. QBOX-1000 User’s Manual... - Page 12 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. QBOX-1000 User’s Manual...
-
Page 13: Chapter 1 Introduction
Introduction Overview The QBOX-1000 is a fan-less Box PC with a volume of just 0.6-liter that is ideal for space critical applications. This embedded hardware platform is designed with Intel® Atom N270 Processor which provides with excellent performance enabled by next- generation 45nm Process Technology. -
Page 14: Table 1 Qbox-1000 Product Specifications
Input: 100-240 VAC, 50-60 Hz Power Unit Output: 30W, +12-19Vdc, 2.5A-1.58A Operating: 0°C to 40°C, 0%-90%, non-condensing Temperature / Storage: -20°C to 80°C, 0%-90%, non-condensing Humidity Desktop, VESA-mount Mounting CE, FCC Class B Certifications Table 1 QBOX-1000 product specifications QBOX-1000 User’s Manual... -
Page 15: System Tour
When the data is Transferring, the WiFi LED will blink. eSATA The eSATA connector provides an external connectivity for mass storage devices. CAUTION This connector do not support hot-swapping. Users should not connect or disconnect their eSATA devices from PC when the system is working. QBOX-1000 User’s Manual... - Page 16 The hard disk LED blinks when data is being written into or read from the HDD. Reset Button To reset the computer, use the tip of a pen to press the Reset button briefly (for less than three seconds). Power Switch The power switch allows powering ON and OFF the system. QBOX-1000 User’s Manual...
-
Page 17: Figure 2 Rear Panel
The Digital Visual Interface (DVI-I) port supports a high quality VGA-compatible device such as a monitor or LCD TV to allow viewing on a larger external display. Ethernet The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network. QBOX-1000 User’s Manual... - Page 18 This SMA connector is used for external antenna. Kensington Lock Slot The slot is used for attaching a lock-and-cable apparatus. Locks are generally secured in place with a key or combination lock attached to a rubberized metal cable. QBOX-1000 User’s Manual...
-
Page 19: Mechanical Dimensions
Chapter 1 Mechanical Dimensions Dimensions in millimeters Figure 3 Mechanical Dimensions QBOX-1000 User’s Manual... -
Page 20: Chapter 2 Getting Started
VGA connector. NOTE When the system reboots without connecting the DVI, there might be no image on screen when you insert the DVI cable. Please pressing <Ctrl>+<Alt>+<F4> simultaneously to show the image on screen. QBOX-1000 User’s Manual... -
Page 21: Figure 5 Connecting Usb Mouse & Keyboard
Chapter 2 Connecting USB mouse & keyboard Your QBOX-1000 does not come with a keyboard and mouse, but you can use any USB keyboard or mouse with your computer. Figure 5 Connecting USB mouse & keyboard NOTE Using a third-party USB mouse or keyboard may require software drivers. -
Page 22: Figure 7 Turing On The System
Chapter 2 Connect the power adapter cable to the DC jack (DC IN) of the QBOX-1000 Connect the power cable to the power adapter Connect the power cable to a power outlet Press the power switch on the front panel to turn on the system... -
Page 23: Mounting Your Pc To A Monitor
Figure 9 VESA mounting (1) NOTE To fasten the metal shelf, your monitor must comply with VESA75 or VESA100 standard. Place the QBOX-1000 on the VESA mounting kit and make sure the computer is fitting well on the bracket. Figure 10 VESA mounting (2) NOTE When mounting the unit on the wall with a display. -
Page 24: Chapter 3 Ami Bios Setup
This chapter provides a description of the AMI BIOS. The BIOS setup menus and available selections may vary from those of your product. For specific information on the BIOS for your product, please contact Quanmax. NOTE: The BIOS menus and selections for your product may vary from those in this chapter. -
Page 25: Main Menu
V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. LBA/ Large Mode [Auto] Enables or disables the LBA (Logical Block Addressing)/ Large mode. Setting to Auto enables the LBA mode if the device supports this mode, and if the device was QBOX-1000 User’s Manual... -
Page 26: Advanced Menu
↑↓ Select Item > Hardware Health Configuration +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. Press <Enter> to select a sub-menu for detailed options. QBOX-1000 User’s Manual... -
Page 27: Table 6 Onboard Peripherals Configuration Settings
Options: Enabled, Disabled USB Device Legacy Support [Enabled] Options: Enabled, Disabled, Auto Audio Controller [Enabled] Options: Enabled, Disabled Onboard LAN Controller [Enabled] Options: Enabled, Disabled Onboard LAN OPTROM [Disabled] Options: Enabled, Disabled WLAN Controller [Enabled] Options: Enabled, Disabled QBOX-1000 User’s Manual... -
Page 28: Boot Menu
Enabling this item allows BIOS to skip some Power On Self Tests (POST) while booting to decrease the time needed to boot the system. When set to [Disabled], BIOS performs all the POST items. Options: Disabled, Enabled QBOX-1000 User’s Manual... -
Page 29: Chipset Menu
Select the amount of system memory used by the Internal graphics device. Options: Enabled 1MB, Enabled 8MB DVMT Mode Select [DVMT Mode] Options: Fixed Mode, DVMT Mode, Combo Mode DVMT/FIXED Memory [128MB] Options: 64MB, 128MB, Maximum DVMT QBOX-1000 User’s Manual... -
Page 30: Power Menu
Restore On AC Power Loss [Power Off] Options: Power Off, Power On, Last State Resume By USB Device [Disabled] Options: Disabled, Enabled Resume By PCI-E Device [Disabled] Options: Disabled, Enabled Resume On RTC Alarm [Disabled] Options: Disabled, Enabled QBOX-1000 User’s Manual... -
Page 31: Security Menu
Discard Changes and Exit Discard Changes Load Optimal Defaults <> Select Screen ↑↓ Select Item Load Failsafe Defaults +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit V02.61 (C)Copyright 1985-2006, American Megatrends, Inc. QBOX-1000 User’s Manual... - Page 32 Load Optimal Default values for all the setup values. This option allows you to load failsafe default values for each of the parameters on the Setup menus, which will provide the most stable performance settings. The F8 key can be used for this operation. QBOX-1000 User’s Manual...
-
Page 33: Chapter 4 Driver Installation
Chapter 4 Driver Installation If your QBOX-1000 does not come with an operating system pre-installed, you will need to install an operating system and the necessary drivers to operate it. After you have finished assembling your system and connected the appropriate power source, power it up using the power supply and install the desired operating system.
