 System tour
Refer to the diagrams below to identify the components of the system.
 Front I/Os
Power Button
The power push button allows powering ON and OFF the system.
Clear CMOS Button
To clear the CMOS, use the tip of a pen to press the button briefly (for less than
three seconds).
WiFi LED (Green)
The WiFi LED will light when the WiFi is on.
Storage LED (Red)
The hard disk/card reader LED blinks when data is being written into or read
from the HDD/Card Reader.
USB
The USB (Universal Serial Bus) port is compatible with USB devices such as
keyboards, mouse devices, cameras, and hard disk drives. USB allows many
QDSP-2060 User's Manual

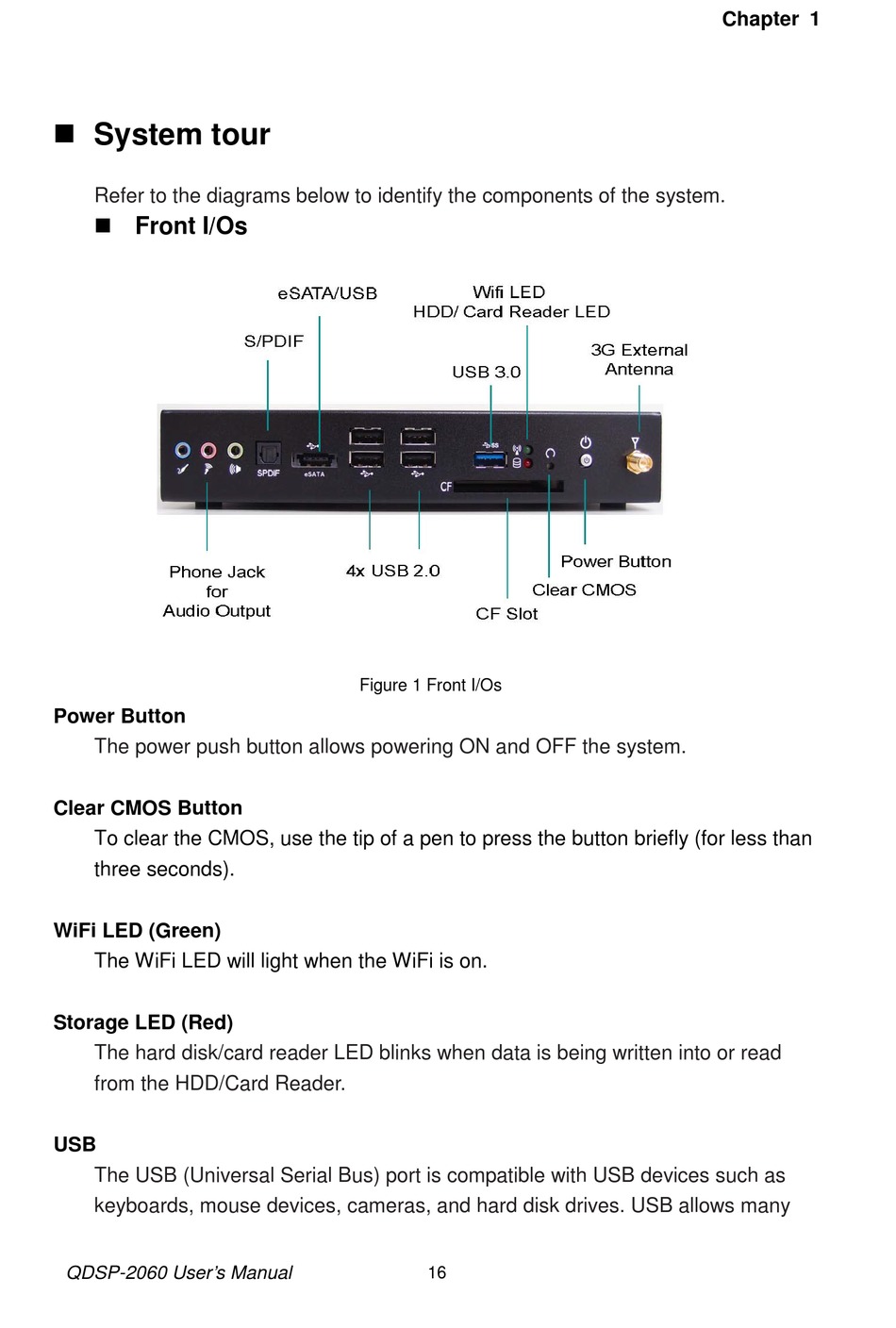

Figure 1 Front I/Os

16
Chapter 1
