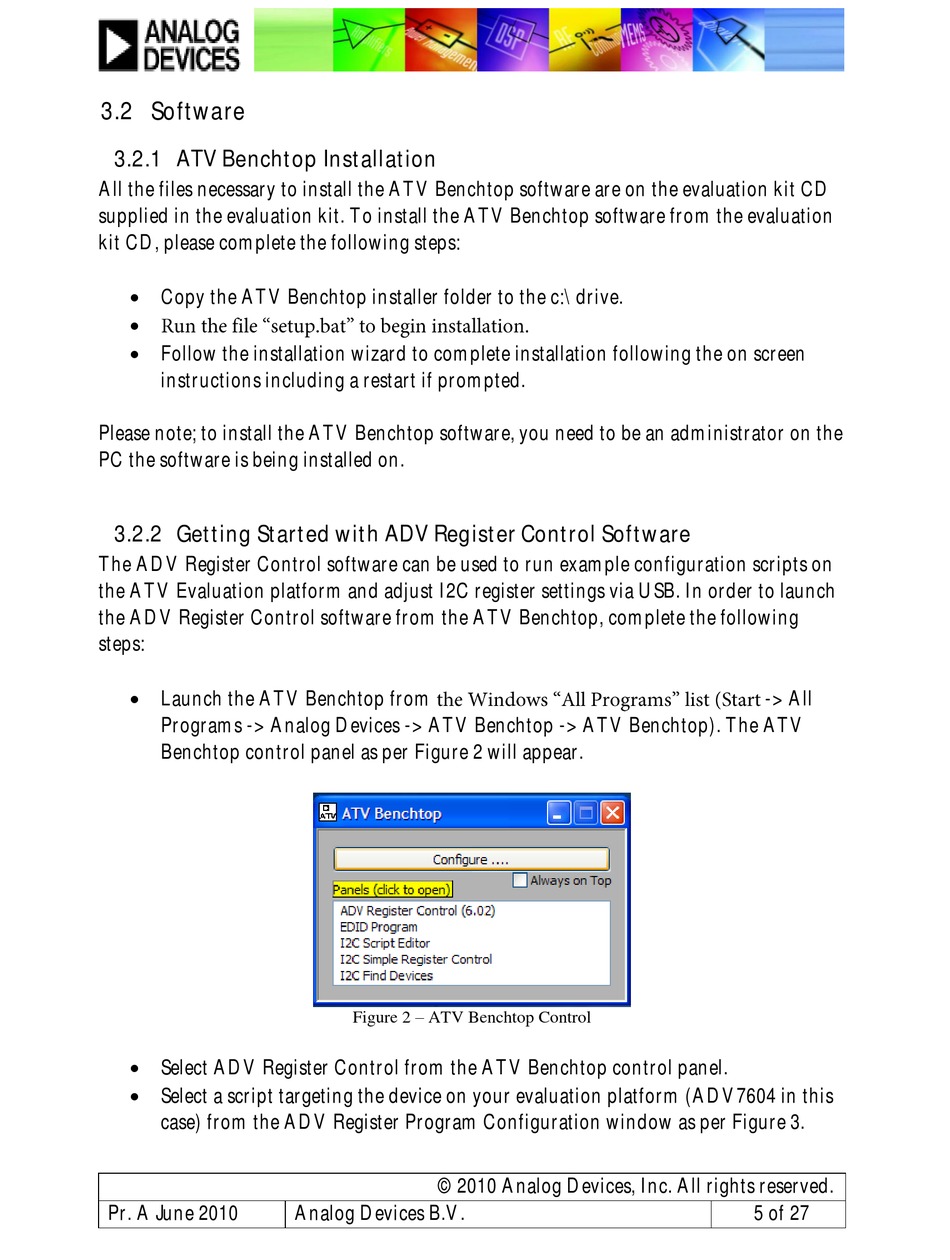

3.2 Software

3.2.1 ATV Benchtop Installation

All the files necessary to install the ATV Benchtop software are on the evaluation kit CD
supplied in the evaluation kit. To install the ATV Benchtop software from the evaluation
kit CD, please complete the following steps:
 Copy the ATV Benchtop installer folder to the c:\ drive.

 Follow the installation wizard to complete installation following the on screen
instructions including a restart if prompted.
Please note; to install the ATV Benchtop software, you need to be an administrator on the
PC the software is being installed on.

3.2.2 Getting Started with ADV Register Control Software

The ADV Register Control software can be used to run example configuration scripts on
the ATV Evaluation platform and adjust I2C register settings via USB. In order to launch
the ADV Register Control software from the ATV Benchtop, complete the following
steps:
 Launch the ATV Benchtop from
Programs -> Analog Devices -> ATV Benchtop -> ATV Benchtop). The ATV
Benchtop control panel as per Figure 2 will appear.
 Select ADV Register Control from the ATV Benchtop control panel.
 Select a script targeting the device on your evaluation platform (ADV7604 in this
case) from the ADV Register Program Configuration window as per Figure 3.
Pr. A June 2010
Figure 2 – ATV Benchtop Control
