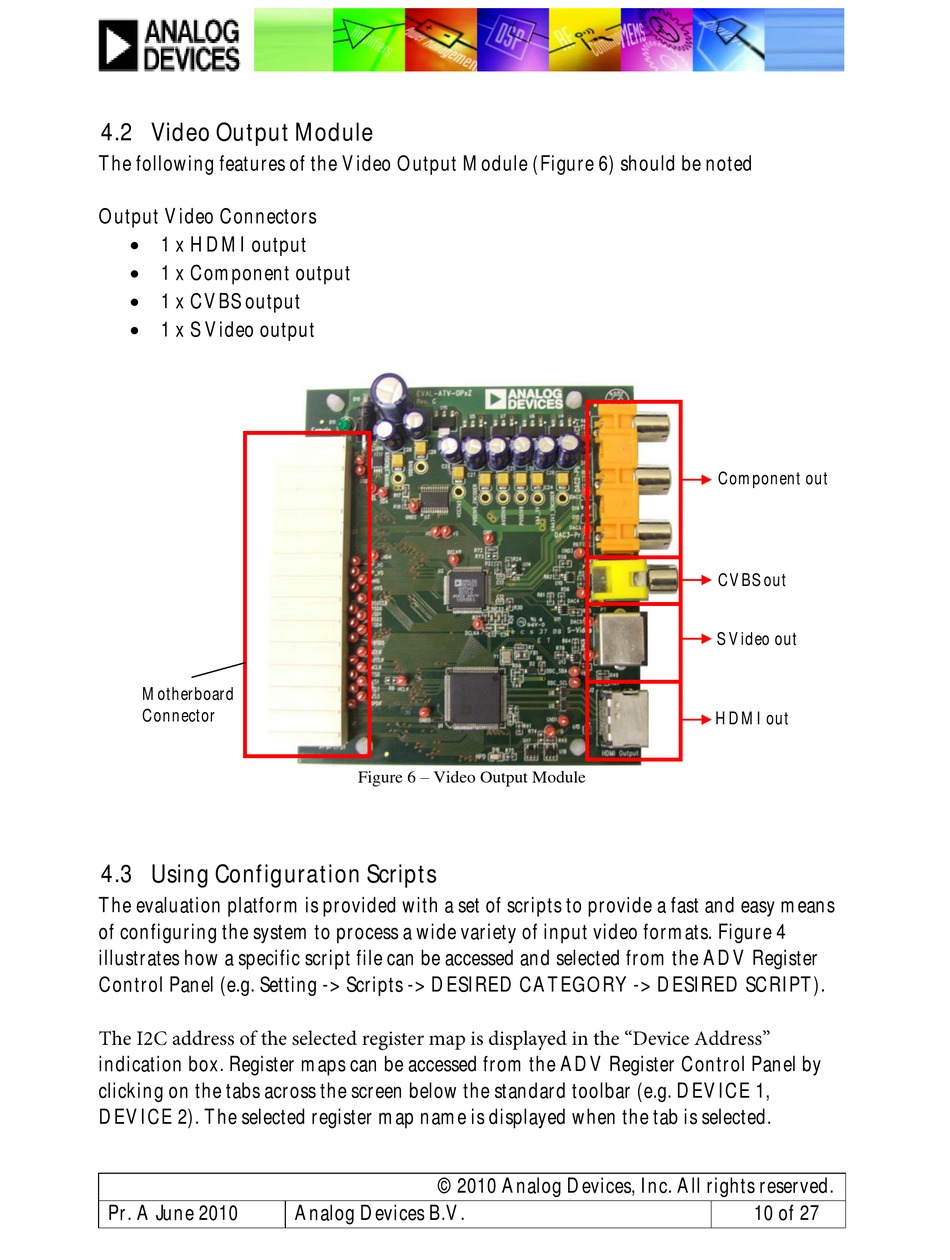

4.2 Video Output Module

The following features of the Video Output Module (Figure 6) should be noted

Output Video Connectors

 1 x HDMI output

 1 x Component output

 1 x CVBS output

 1 x S Video output

Motherboard

Connector

The evaluation platform is provided with a set of scripts to provide a fast and easy means

of configuring the system to process a wide variety of input video formats. Figure 4

illustrates how a specific script file can be accessed and selected from the ADV Register

Control Panel (e.g. Setting -> Scripts -> DESIRED CATEGORY -> DESIRED SCRIPT).

indication box. Register maps can be accessed from the ADV Register Control Panel by

clicking on the tabs across the screen below the standard toolbar (e.g. DEVICE 1,

DEVICE 2). The selected register map name is displayed when the tab is selected.

Pr. A June 2010

Figure 6 – Video Output Module

Analog Devices B.V.

Component out

CVBS out

S Video out

HDMI out

10 of 27
