EVALUATION BOARD SOFTWARE

The EVAL-ADE9113KTZ is supported by Windows
that allows the user to access all the functionality of the ADE9113.
The EVAL-ADE9113KTZ SW runs on the PC and communicates
with the SDP-B via a USB, which in turn, communicates with the
ADE9113 ADCs on the EVAL-ADE9113EBZ to process requests.
If microcontroller firmware level interaction with the ADE9113 is
required, the MCU adapter can be used instead of the SDP-B
adapter board with the SDP-B.
INSTALLING THE EVAL-ADE9113KTZ
SOFTWARE
To set up the EVAL-ADE9113KTZ software, install the following:
EVAL-ADE9113KTZ SW, ADI SDP Drivers, and LabVIEW 2019
SP1 Runtime by taking the following steps:
analog.com
®
based software 1. Download the EVAL-ADE9113KTZ SW installer from the
ADE9113
2. Run the EVAL-ADE9113KTZ SW installer executable (.exe) file.
3. Follow the prompts shown on the screen to complete the
installation for EVAL-ADE9113KTZ SW. The default settings
are recommended (see
4. The installer for the SDP drivers automatically pops up next.
Follow the prompts on the screen again to complete the instal-
lation (see
5. Download LabVIEW 2019 SP1 Runtime from the NI website,
which may require users to create or log in to an NI account.
6. Run the installer executable file and follow the on screen
prompts to complete the installation.

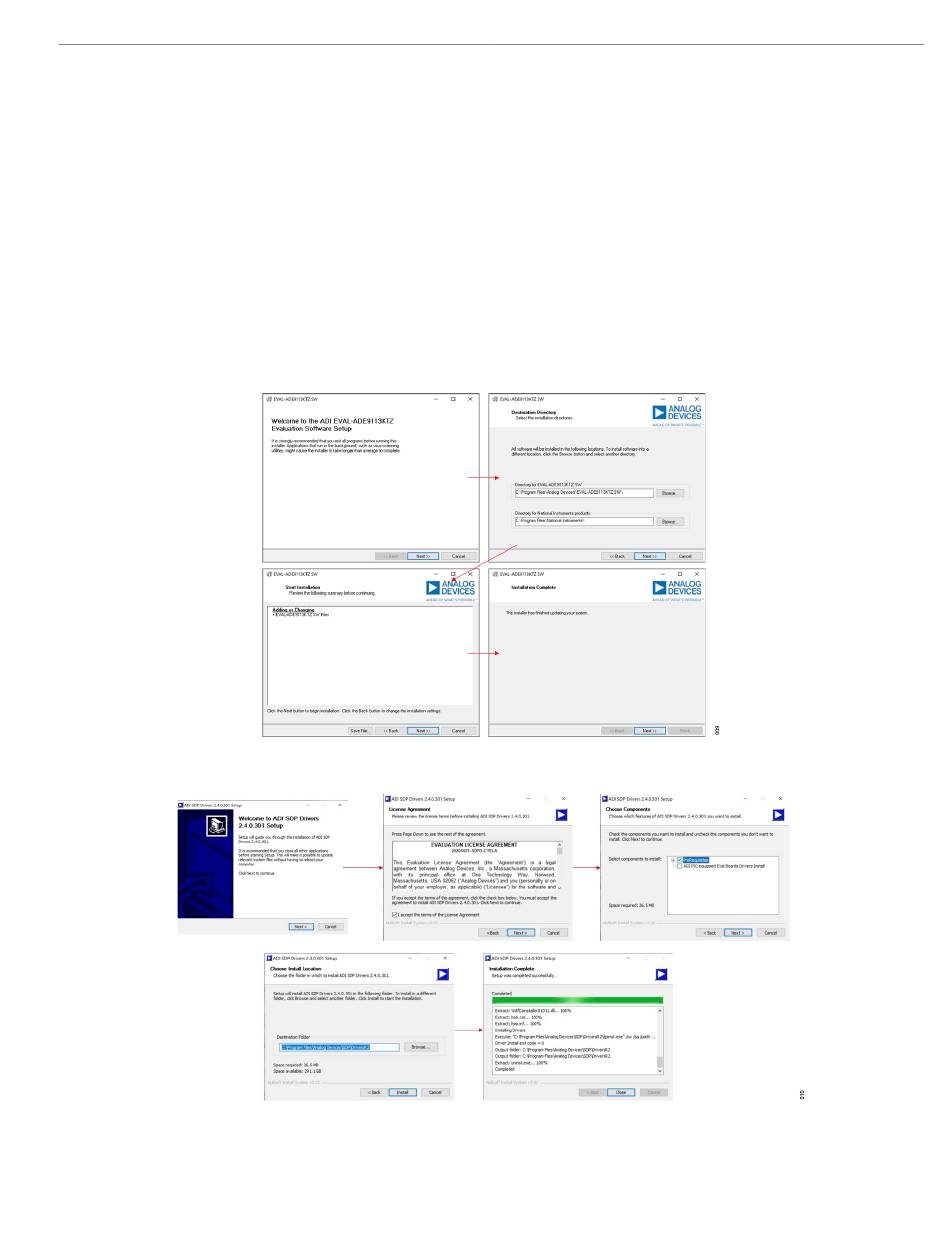

Figure 9. EVAL-ADE9113KTZ SW Installation
Figure 10. SDP Drivers Installation
EVAL-ADE9113
product page.
Figure 9).
Figure 10).
EVAL-
