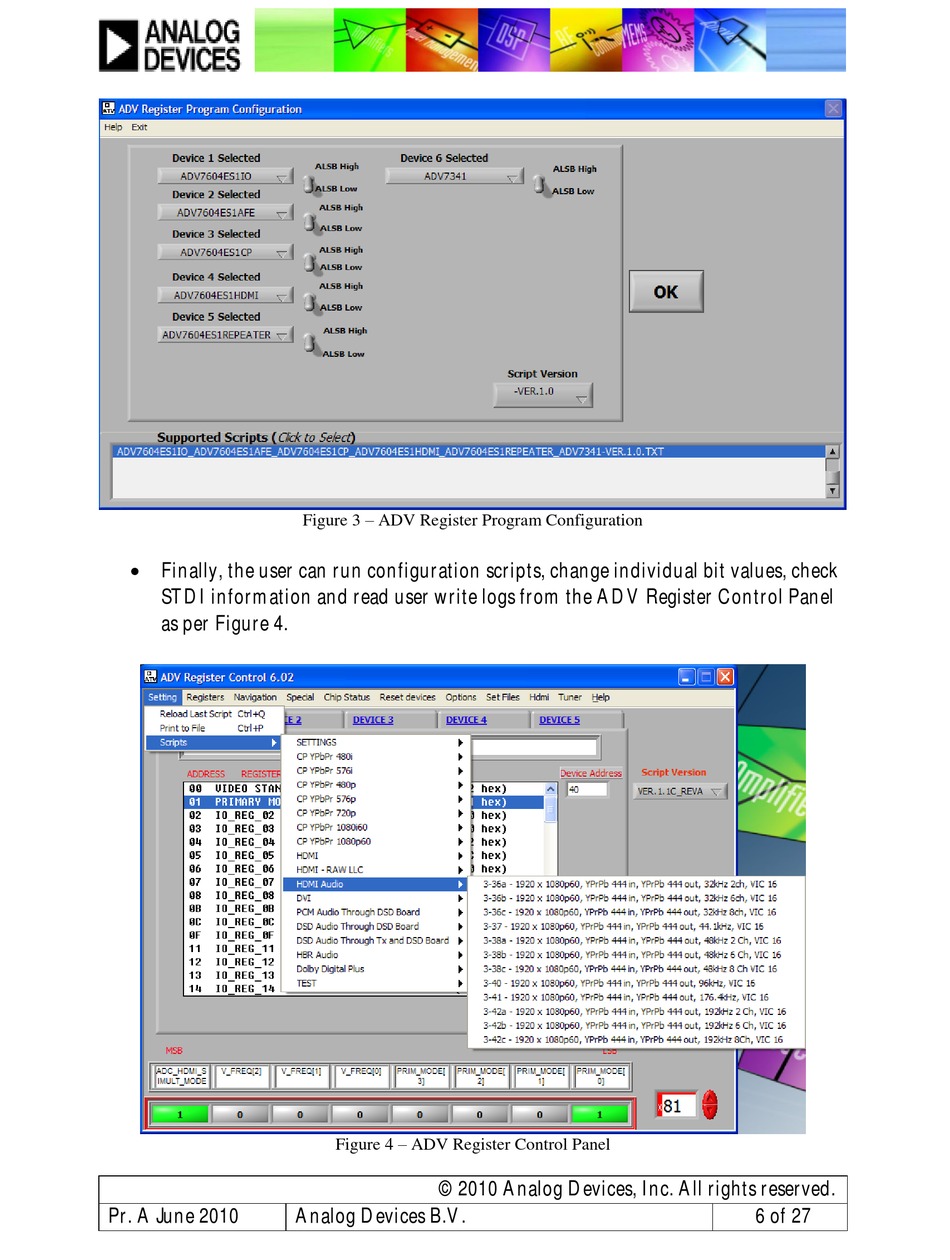

Figure 3 – ADV Register Program Configuration
Finally, the user can run configuration scripts, change individual bit values, check
STDI information and read user write logs from the ADV Register Control Panel
as per Figure 4.
Figure 4 – ADV Register Control Panel
© 2010 Analog Devices, Inc. All rights reserved.
Pr. A June 2010
Analog Devices B.V.
6 of 27
