Effect Placement - Korg iS35 User Manual

"Effect placement" pages
Mode
Arrangement Play
Backing Sequence
Song Play
Song Edit
Program

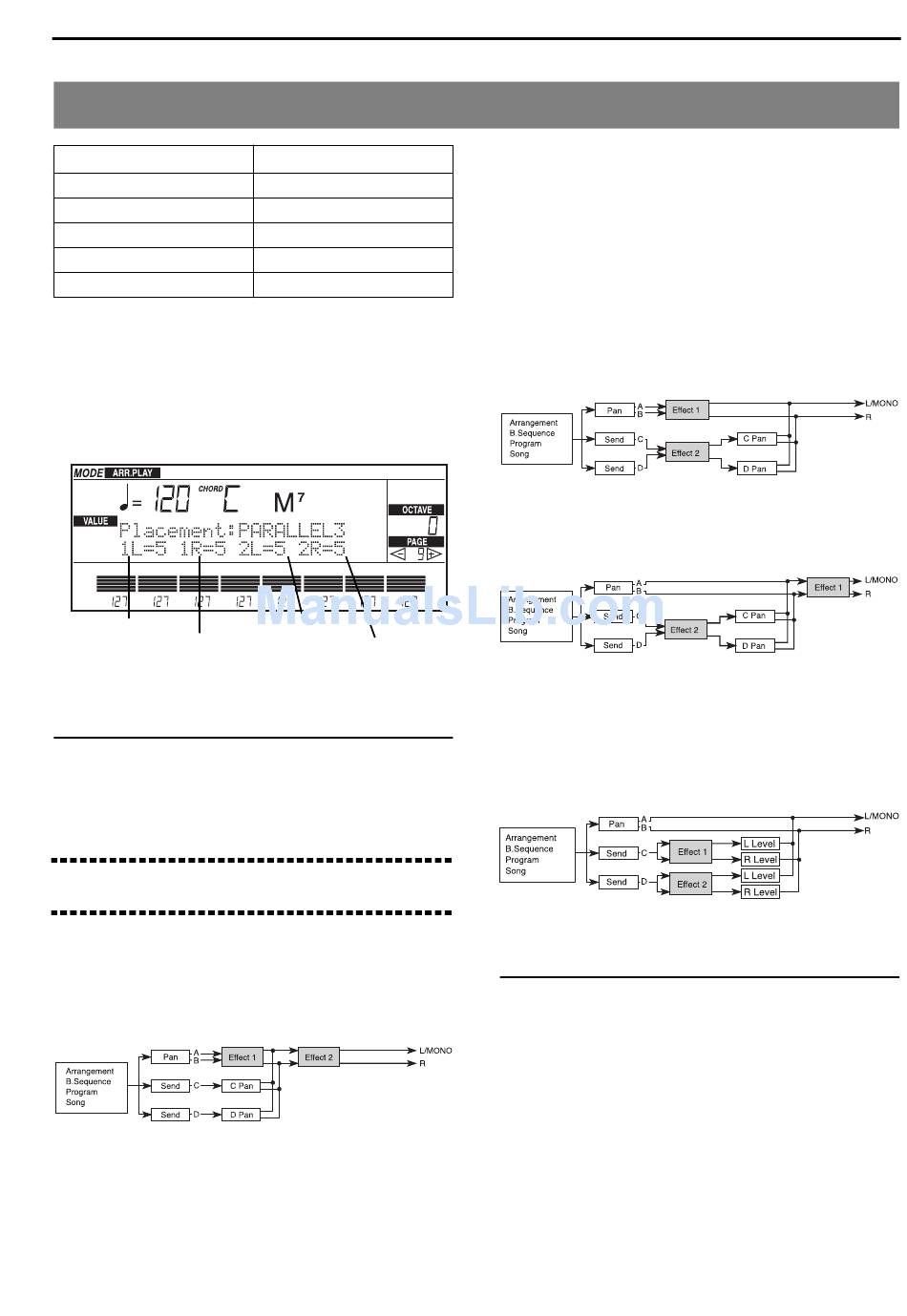

In this page you can choose the effect setup of the
arrangement, backing sequence, song or program, and
program pan and levels for channels C and D. Pan and
sending of arrangement tracks are programmed on the
"Track settings" page.
Effect 1-left level
Effect 1-right level
Placement
[SERIAL, PARALLEL 1, PARALLEL 2, PARALLEL 3]
The Placement determines where the internal audio
channels (A, B, C, and D) will be connected to the
effects. The usual placement is Parallel 3.
Warning: A different placement to Parallel 3 can
increase the signal output level, and generate distortion.
The SERIAL setting will assign effects 1 and 2 to chan-
nels A and B. Since the signal from channels C and D
will only be mixed in after effect 1 (as specified by
channel C pan and channel D pan), only effect 2 will
be assigned to channels C and D.
Page
"Page 11: Effect placement"
"Page 13: Effect placement"
"Page 6: Effect placement"
"Page 10: Effect placement"
"Page 19: Effect placement"
Effect 2-left level
Effect 2-right level
The PARALLEL 1 setting will assign effect 1 to chan-
nels A and B, and effect 2 to channels C and D. After
effect 2, the pan of channels C and D will be set.
Finally, the signals from the two effects will be mixed.
The PARALLEL 2 setting will assign effect 2 to chan-
nels C and D 2. After effect 2, the pan of channels C
and D will be set. The signal will be mixed with chan-
nels A and B and sent through effect 1.
The PARALLEL 3 setting will assign effect 1 (reverb)
to channel C and effect 2 (modulating) to channel D.
The L/R (left/right) level of each effect will be set sep-
arately, Then the signal of the two effects will be mixed
with channels A and B. This setting allows you mix the
effected signal of channels C and D (wet) with the
direct signal of channels A and B (dry).
C (C Pan)
[OFF, R, 99:01...01:99, L]
Panning (stereo positioning) of the signal from chan-
nel C. This will only appear if SERIAL, PARALLEL 1
or PARALLEL 2 settings are selected.
L Left signal.
R Right signal.
OFF Channel C signal off.
