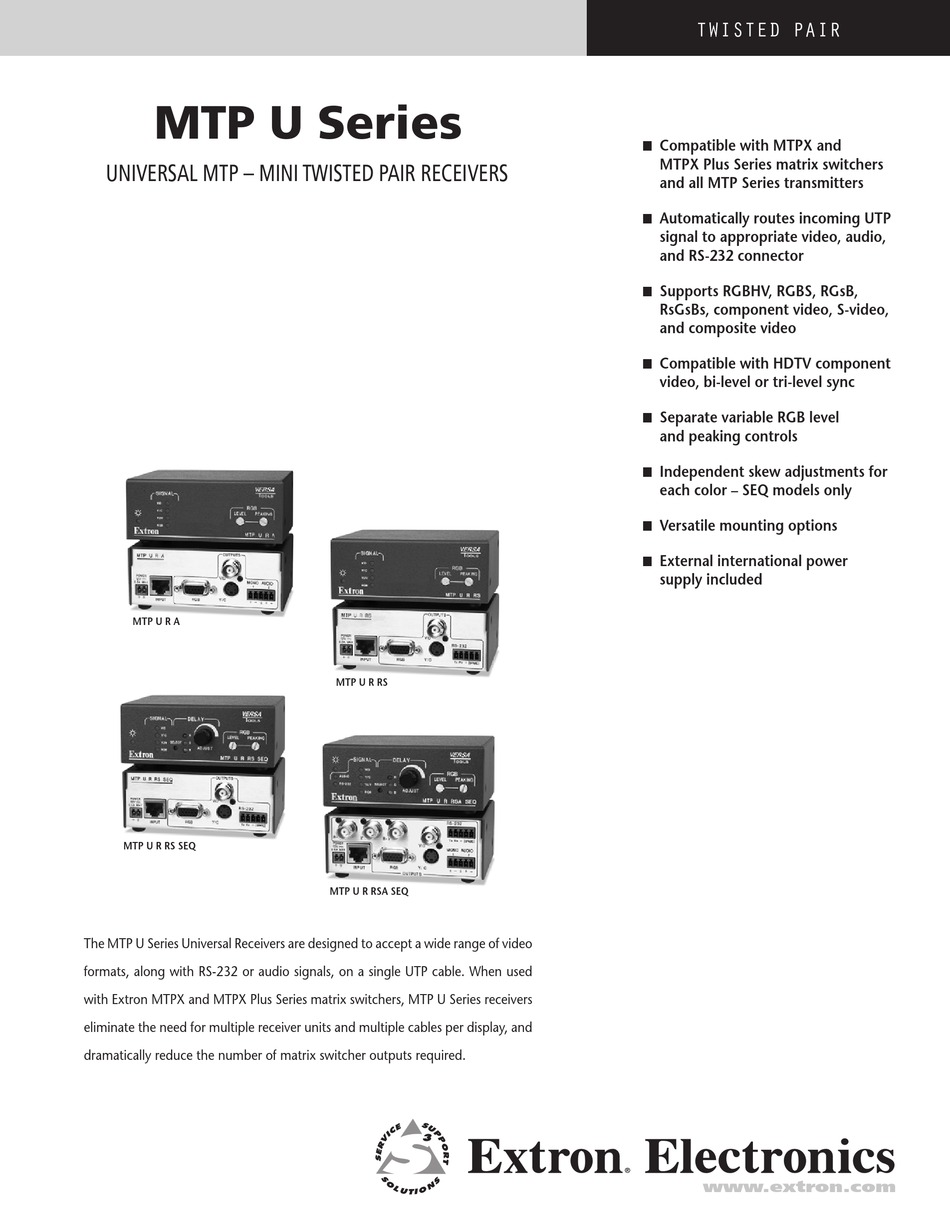

MTP U Series
Universal MTP – Mini TwisTed Pair receivers

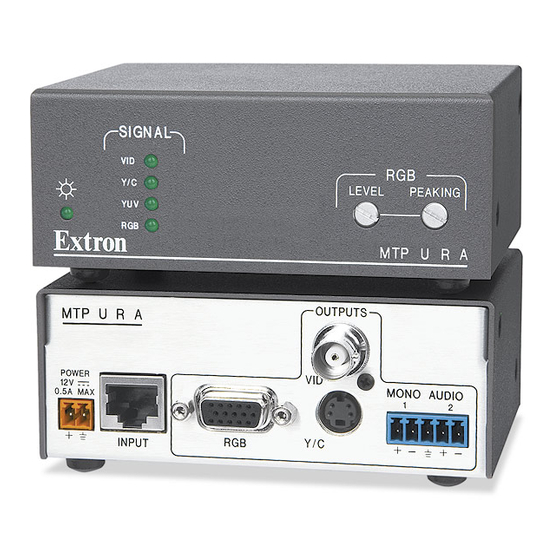

MTP U R A
MTP U R RS SEQ
The MTP U Series Universal Receivers are designed to accept a wide range of video
formats, along with RS-232 or audio signals, on a single UTP cable. When used
with Extron MTPX and MTPX Plus Series matrix switchers, MTP U Series receivers
eliminate the need for multiple receiver units and multiple cables per display, and
dramatically reduce the number of matrix switcher outputs required.
MTP U R RS
MTP U R RSA SEQ
TwisTed Pair
Compatible with MTPX and
n
MTPX Plus Series matrix switchers
and all MTP Series transmitters
Automatically routes incoming UTP
n
signal to appropriate video, audio,
and RS-232 connector
Supports RGBHV, RGBS, RGsB,
n
RsGsBs, component video, S-video,
and composite video
Compatible with HDTV component
n
video, bi-level or tri-level sync
Separate variable RGB level
n
and peaking controls
Independent skew adjustments for
n
each color – SEQ models only
Versatile mounting options
n
External international power
n
supply included
www.extron.com
Advertisement
Related Manuals for Extron electronics Universal MTP - Minitwisted Pair Receivers MTP U Series
Summary of Contents for Extron electronics Universal MTP - Minitwisted Pair Receivers MTP U Series
- Page 1 MTP U Series Universal MTP – Mini TwisTed Pair receivers MTP U R A MTP U R RS SEQ MTP U R RSA SEQ The MTP U Series Universal Receivers are designed to accept a wide range of video formats, along with RS-232 or audio signals, on a single UTP cable. When used with Extron MTPX and MTPX Plus Series matrix switchers, MTP U Series receivers eliminate the need for multiple receiver units and multiple cables per display, and dramatically reduce the number of matrix switcher outputs required.
- Page 2 DesCRIPTION The Extron MTP U Series Universal Mini Twisted Pair Receivers accept a wide variety of video formats along with RS-232 or audio signals on a single UTP cable, providing dramatic cost savings with superior performance in complex twisted pair matrix switching applications. With advanced features, including the ability to automatically route the incoming UTP signal to the appropriate video, audio, and RS-232 output connector, systems require only one receiver, one cable, and...
-
Page 3: Specifications
sPeCIFICaTIONs Video Gain ... Unity Video input Number/signal type ... 1 set of proprietary analog signals Connectors ... 1 female RJ-45 Video output Number/signal type ... 1 RGBHV, RGBS, component video (bi-level and tri-level), S-video, composite video (follows input type) Connectors MTP U R RSA SEQ ... -
Page 4: Application Diagram
aPPlICaTION DIagRaM Extron MTPX 1616 Plus MTP Matrix Switcher Sound System Extron MTP T SV A Transmitter PaNel DRawINgs SIGNAL AUDIO RS-232 MTP U R RSA SEQ - Front POWER 0.5A MAX INPUT MTP U R RSA SEQ - Back SIGNAL MTP U R A - Front M T P U R A...
