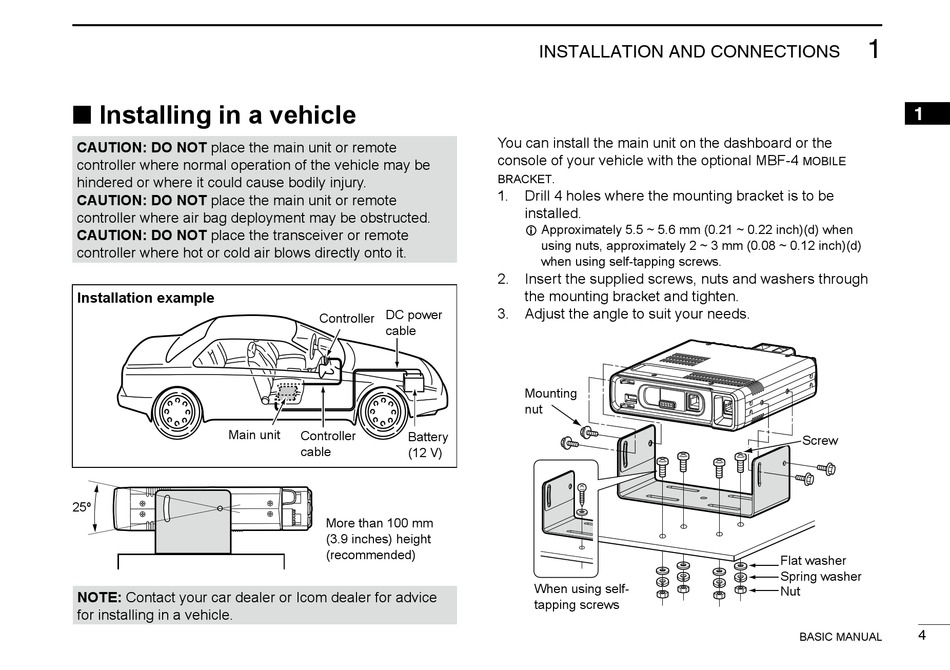

■ Installing in a vehicle

CAUTION: DO NOT place the main unit or remote
controller where normal operation of the vehicle may be
hindered or where it could cause bodily injury.
CAUTION: DO NOT place the main unit or remote
controller where air bag deployment may be obstructed.
CAUTION: DO NOT place the transceiver or remote
controller where hot or cold air blows directly onto it.
Installation example
Main unit
25º
NOTE: Contact your car dealer or Icom dealer for advice
for installing in a vehicle.
Controller DC power
cable
Controller
Battery
cable
(12 V)
More than 100 mm
(3.9 inches) height
(recommended)
INSTALLATION AND CONNECTIONS
You can install the main unit on the dashboard or the
console of your vehicle with the optional MBF-4
.
bracket
1. Drill 4 holes where the mounting bracket is to be
installed.
L Approximately 5.5 ~ 5.6 mm (0.21 ~ 0.22 inch)(d) when
using nuts, approximately 2 ~ 3 mm (0.08 ~ 0.12 inch)(d)
when using self-tapping screws.
2. Insert the supplied screws, nuts and washers through
the mounting bracket and tighten.
3. Adjust the angle to suit your needs.
Mounting
nut
When using self-
tapping screws
1
1
mobile
Screw
Flat washer
Spring washer
Nut
4
