Figure 3-48: Obs Course To Navaid; Figure 3-49: Map –Obs Start - BENDIXKing AV8OR User Manual

AV8OR User's Guide Aviation Mode Operation
VFR Moving Map Function

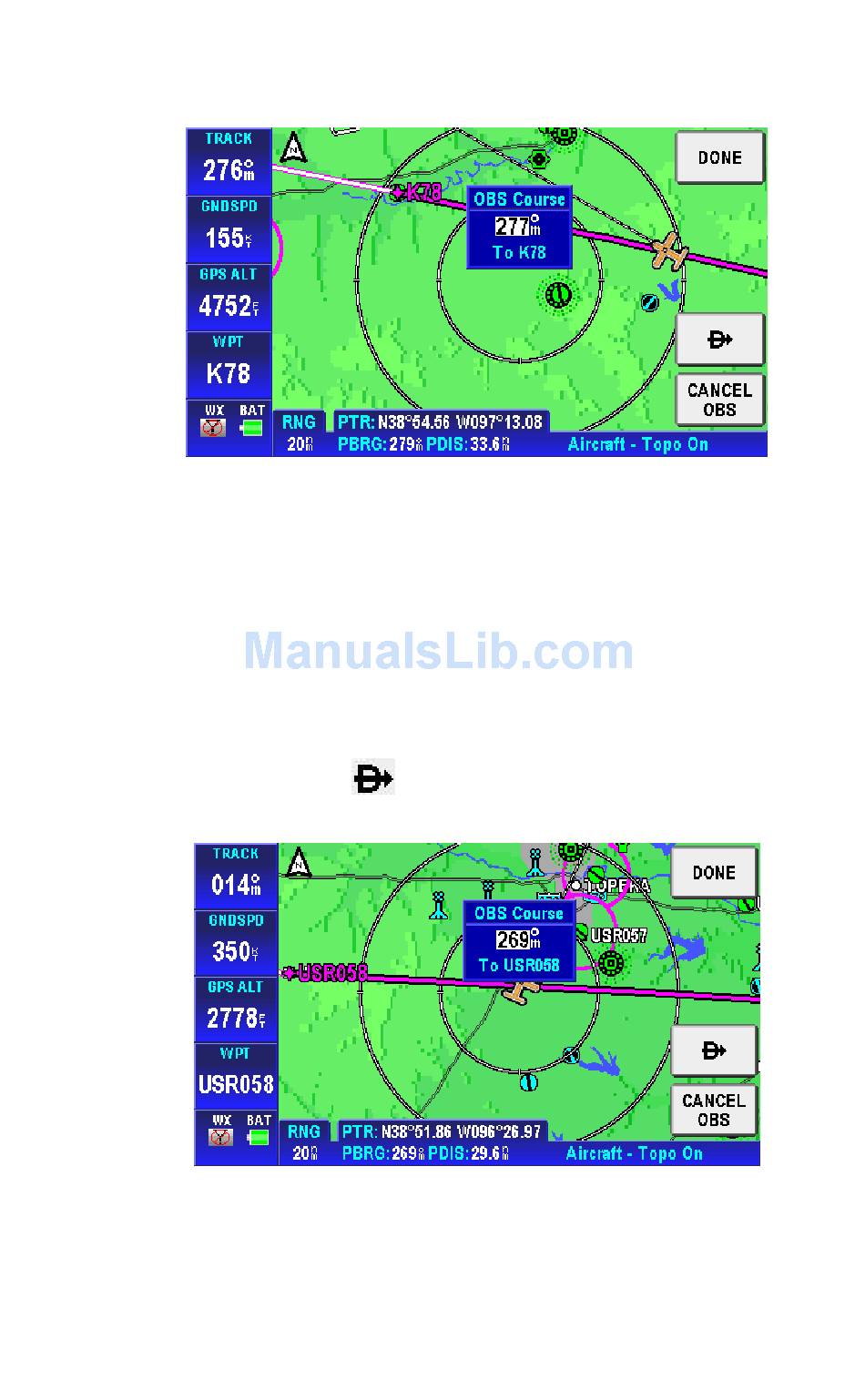

Figure 3-48: OBS Course to NAVAID

To select a user defined point on the map:
If the point the user touches is not a NAVAID point, then after the
OBS soft key is tapped, a temporary WPT is created at that position.
The OBS course ends at that user defined temporary WPT.
To edit the OBS Course Angle, double tap on the OBS Course
Window to open a key pad.
After the OBS point is selected the OBS course selection window is
shown and the DONE, and CANCEL OBS soft keys are
displayed, as shown in Figure 3-49.
Figure 3-49: Map –OBS Start
Tap the DONE soft key and the adjusted OBS course is activated
and a course is generated to the selected point, as shown in Figure
3-50.
Pub. No D200803000008 Page 3-39 Revision July 2008.
