AV8OR User's Guide

WxWorx XM Weather Receiver Serial Setup

To configure the AV8OR to receive weather data from the WxWorx
XM Weather Receiver, perform the following steps:
Attach the cable from the WxWorx XM Weather Receiver (supplied
with the WX XM Weather Receiver) to the USB port on the AV8OR.
From the Aviation Main Menu, tap the
System Setup Menu.
Highlight the Device Setup option and tap the SELECT soft key to
show the Device and Port Setup page.
On the Device and Port Setup page, the configuration steps are:
•
If the Position Source is set to Serial, it must be changed
to Internal or Bluetooth since there is only one RS232 port
available.
•
Set the Weather Port to Serial.
•
Set the Weather Type to "WxWorx". When finished the
Device and Port Setup page should look like Figure 7-3.

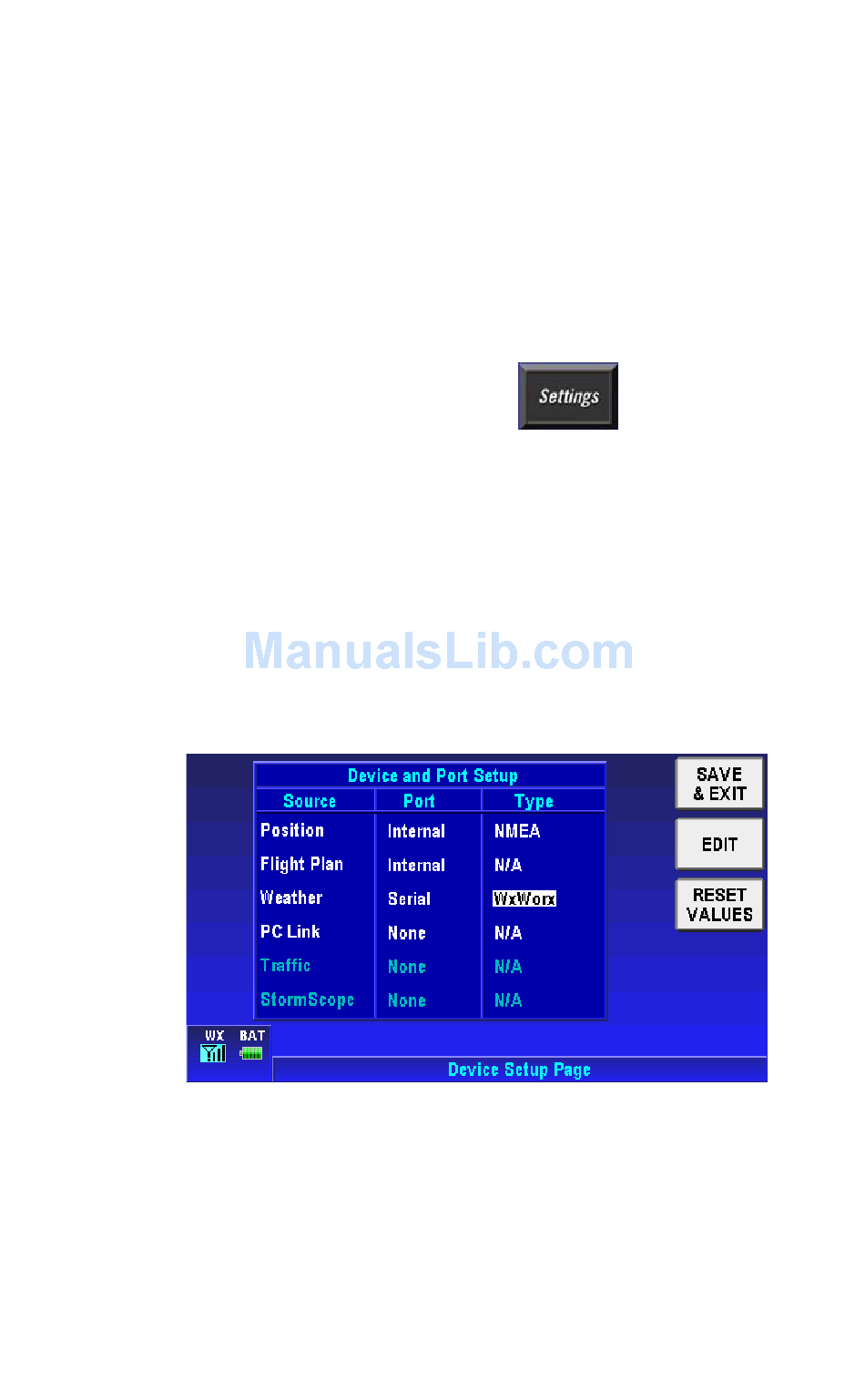

Figure 7-3: WxWorx XM Weather Setup

Refer to the WxWorx user guide for how to activate your subscription
to XM weather.
Pub. No D200803000008
© Honeywell International Inc. Do not copy without express permission of
Page 7-9 Revision July 2008.
Honeywell.
Appendix
soft key to open the
