VFR Moving Map Function

VFR MOVING MAP FUNCTION
The AV8OR features a real-time moving map that can do much more
than just plot your course. The core capability of AV8OR MAP mode
function is its intuitive mapping and navigation function, which is
capable of displaying highly detailed, vectored (point and line) maps.
This detailed vector data includes road over flown data, street
address data, airspace boundaries, airports, Navigational Aid
(NAVAID)s, lakes, rivers, coastlines, cities, highways and terrain
elevation data used to help situational awareness.

Main Map Display Window

On the Aviation Main Menu, tap on the
Main Map page, as shown in Figure 3-13.
• Data field information (1): The data field information is
displayed along the left side of the screen. For more information
about the data field window configuration please refer to Data
Fields in the next section.
• The ZOOM IN (2)
the map.
Pub. No D200803000008
© Honeywell International Inc. Do not copy without express permission of

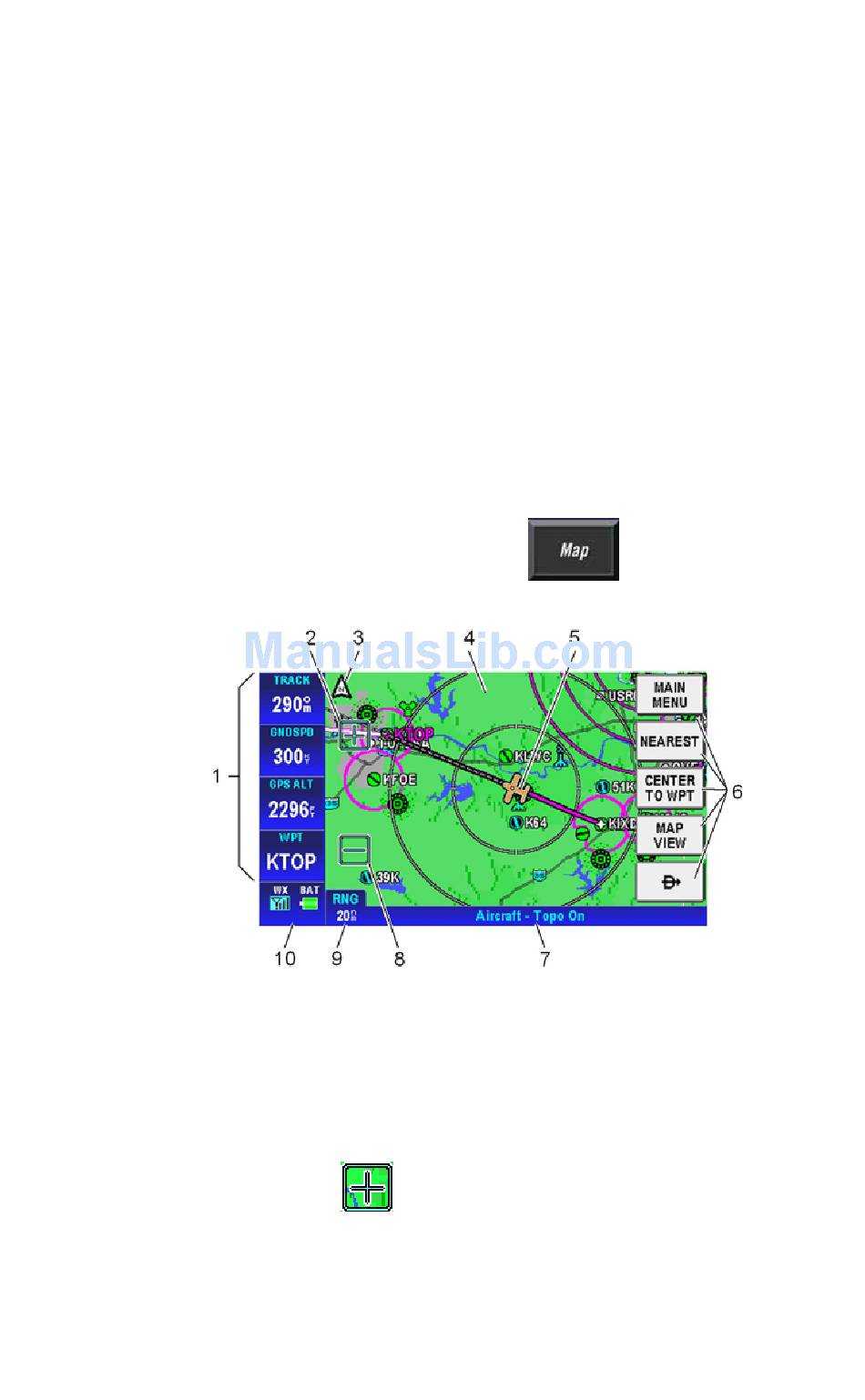

Figure 3-13: Main Map Display Page

icon decreases the displayed range of
Honeywell.
Aviation Mode Operation
Page 3-9 Revision July 2008.
soft key to enter the
