AV8OR User's Guide Aviation Mode Operation
VFR Moving Map Function

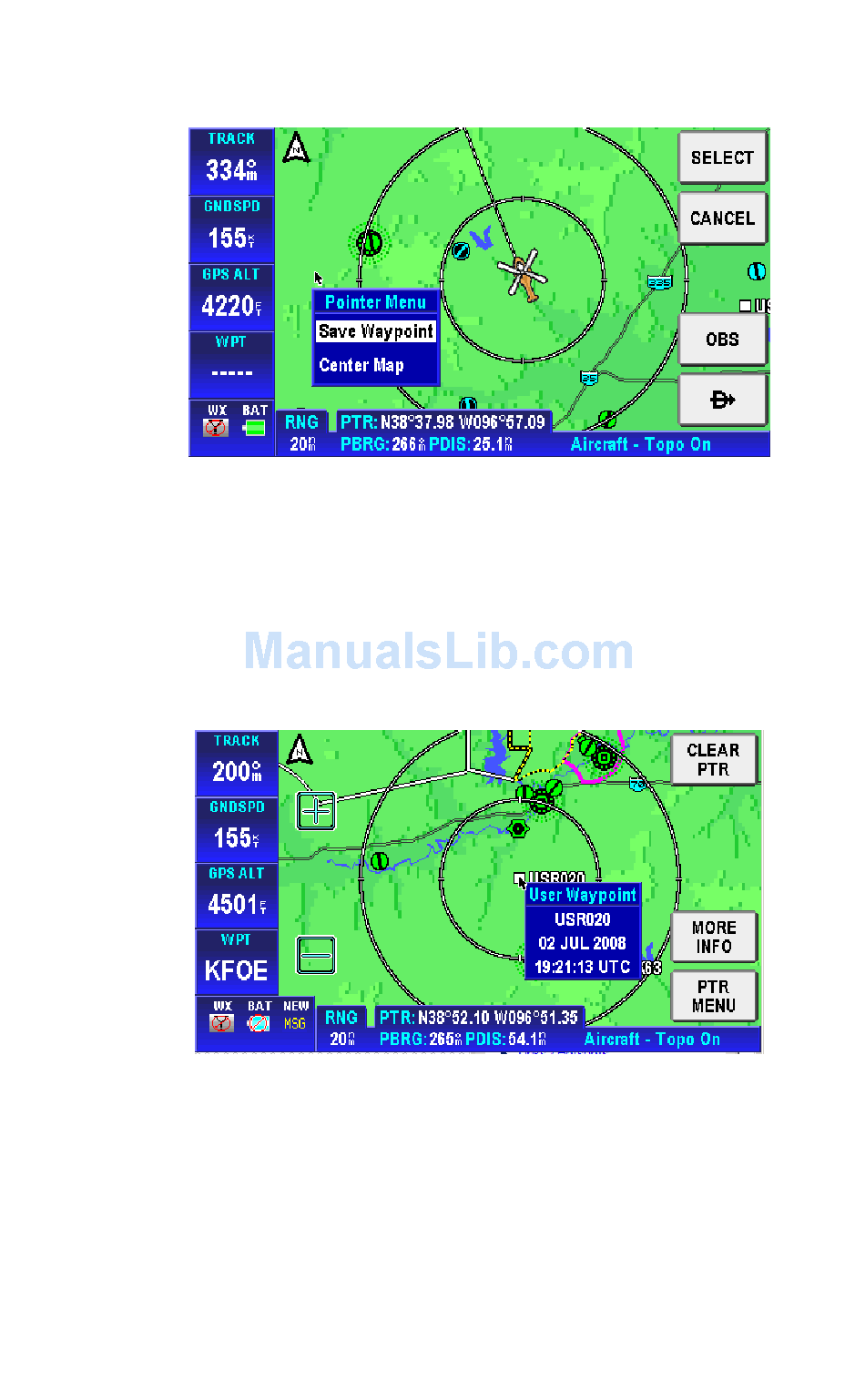

Figure 3-45: Map – User Defined Point PTR MENU
Choose the Center Map item and tap the SELECT soft key to display
the pointer position at the center of the map.
Choose the Save Waypoint item, and tap the SELECT soft key, a
user defined WPT is created at the point position on the map with
the name USRXXX, as shown in Figure 3-46.
Figure 3-46: Map – User Defined Waypoint
PTR MENU – DIRECT-TO Navigation
The DIRECT TO shows the course to navigate the aircraft to the
desired WPT directly when the WPT was selected from the pointer
map mode screen. When the user moves the pointer arrow to any
desired map location, the pointer's position (PTR), bearing (PBRG)
Pub. No D200803000008 Page 3-37 Revision July 2008.
