AV8OR User's Guide
System Setup Function
in feet. When meters are selected, runway lengths are
reported in meters.
• Req Runway Surface: The options are ANY and HARD
ONLY. The Required Runway Surface type is also used when
using the DIRECT TO soft key to search for the nearest
airports in VFR Moving Map mode. When runway surface is
set to ANY, airports with either hard or soft runways are
displayed. When surface is set to HARD ONLY, only airports
with hard surface runways are displayed and soft-runway
airports are ignored.
• MIN R/W LENGTH: This field contains the minimum length of
the main runway at those airports that are included when the
ten nearest airports are shown. Select the length field and use
set the minimum length value. The available values are
specified in steps of 100 feet from 0 to 16,000 feet or in steps
of 50 meters from 0 to 4900 meters when the runway length
units are set to meters. By setting a minimum length, airports
with shorter runway lengths are not included in the search for
the closest airport. To disable this filter set the minimum
runway length to 00000 feet.

Map Setup

The initial Map Systems Setup Options page allows different
mapping options to be configured. Refer to Figure 3-98.

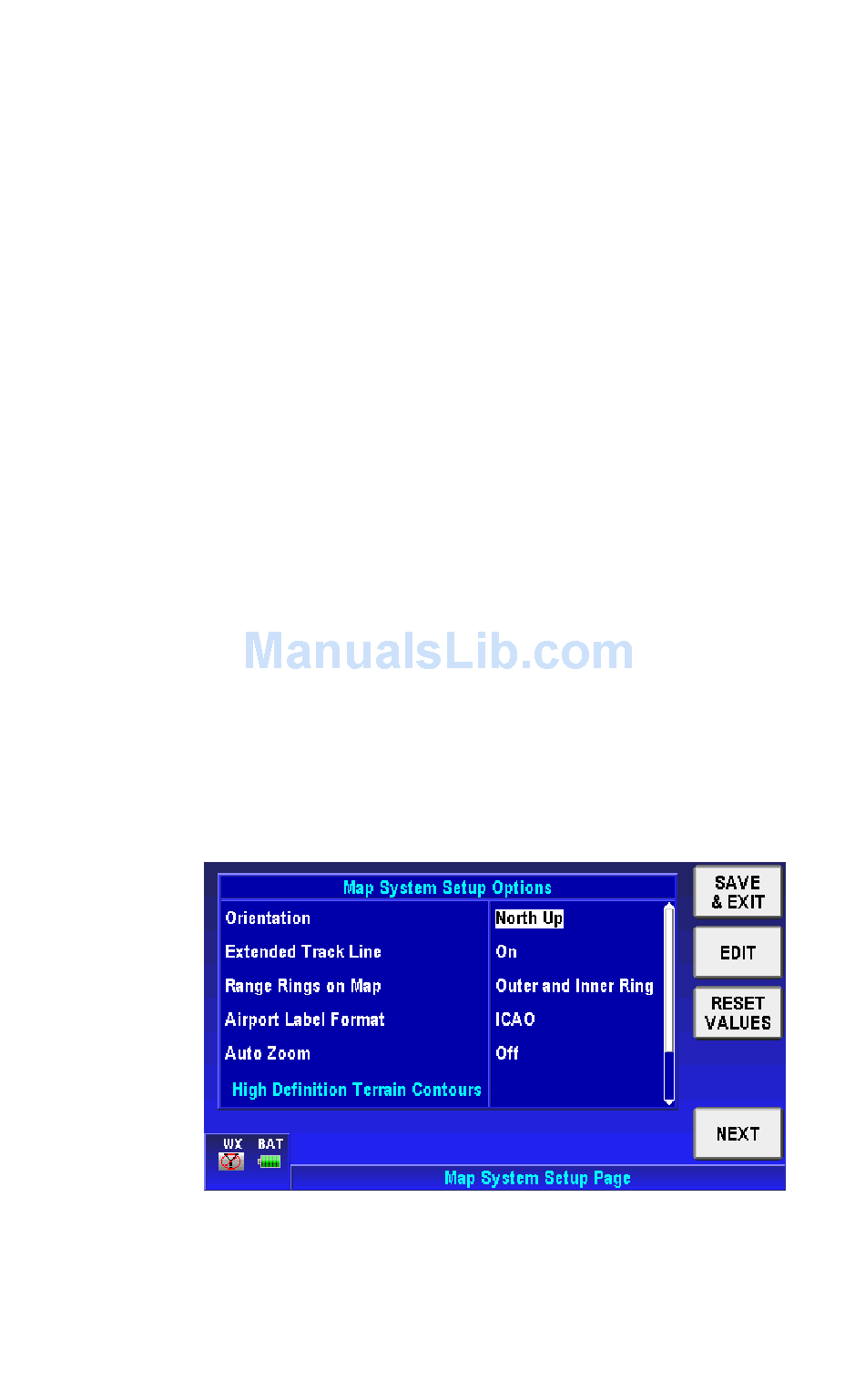

Figure 3-98: System Setup – Map System Setup Options
Tap the NEXT soft key to move to the next screen or the SAVE &
EXIT soft key to save any changes and go back to the previous
Pub. No D200803000008
© Honeywell International Inc. Do not copy without express permission of
Aviation Mode Operation
Page 3-75
Honeywell.
Revision July 2008.
