System Setup Function
feet the options are: 1500ft, 2000ft, 2500ft, 3000ft, 4000ft,
5000ft, 6000ft, 7000ft, 8000ft, 9000ft and Maximum.
There are four groups of features for each of the map layers.
They are: Point Features, Line Features, Airspace and Overlay.
Tapping the NEXT soft key displays the First feature screen:
Point Feature Setup, as shown in Figure 3-99.

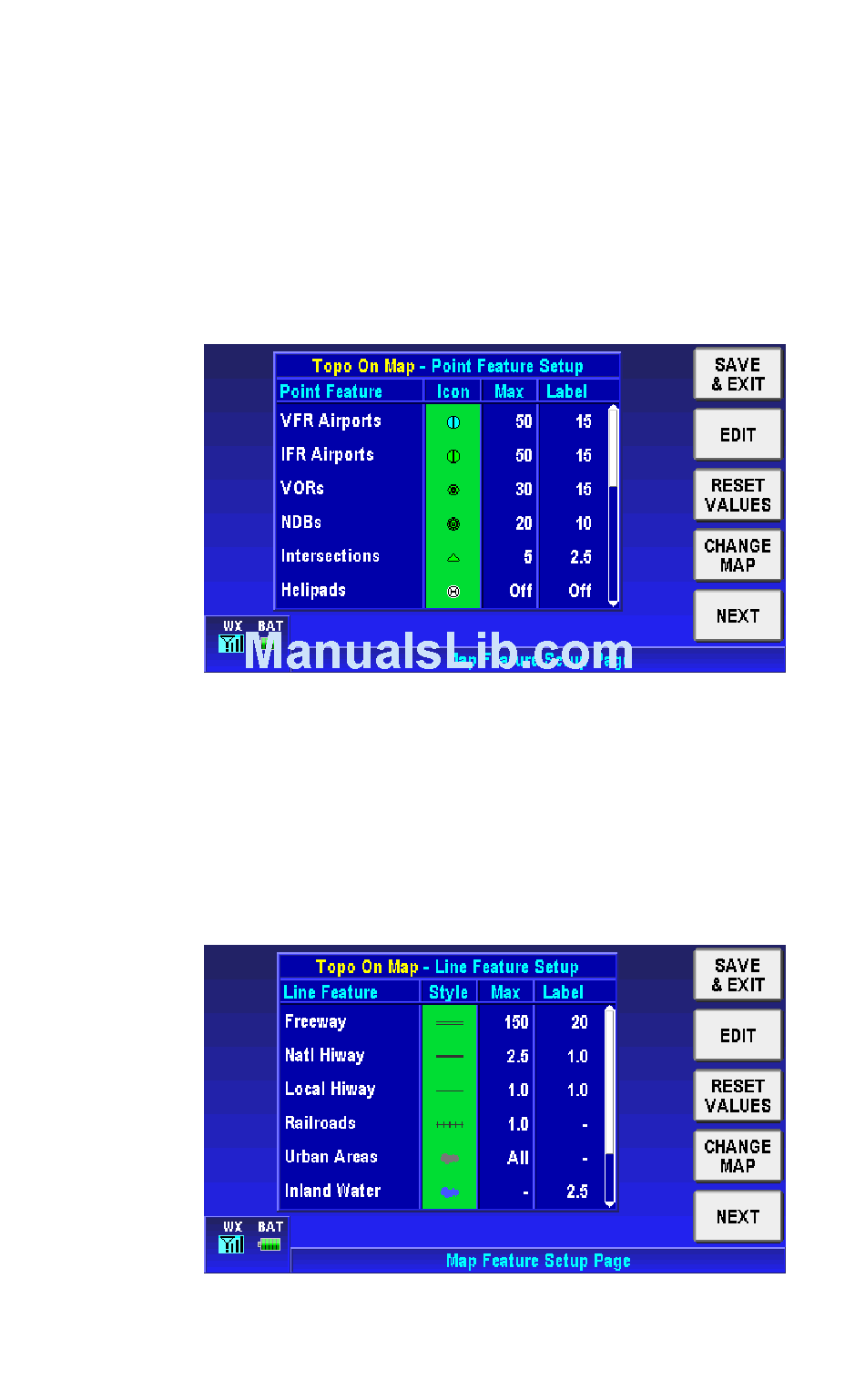

Figure 3-99: Map System Setup – Point Feature Setup
Tap the CHANGE MAP soft key to display the list of map layers.
Select the desired map or chart and then tap the SELECT soft
key to select that layer and return to the Map Features page.
Tapping the ALL MAPS soft key applies the current settings to all
maps. The next three features screens are each accessed in
sequence by repeatedly tapping the NEXT soft key. The NEXT
soft key on the last page loops back to the first page.
Figure 3-100: Map System Setup – Line Feature Setup
