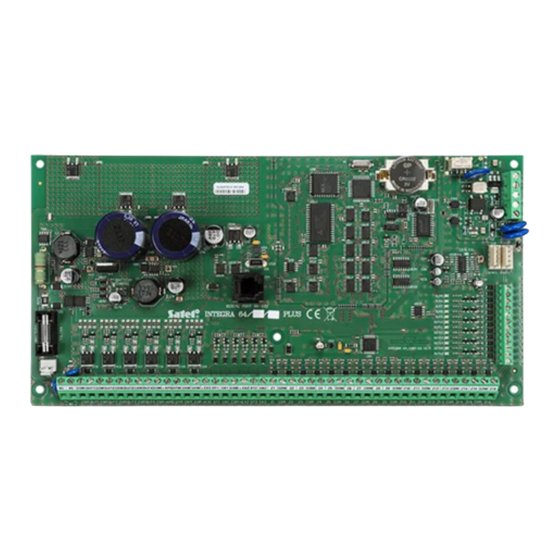

- Page 1 USER MANUAL SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.eu integra_plus_u_en 09/12...
- Page 2 (the alarm will be signaled optically and acoustically, appropriate services will be notified, etc.), which may deter the potential burglars. The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Table Of Contents
CONTENTS General..........................3 Technical reliability of the alarm system ................3 Alarm system operating costs................... 3 Authorization of users ....................... 4 Authorization with two identifiers ................4 Factory default codes ....................4 Operation under duress..................... 5 Operating the alarm system by means of LCD keypad............. 5 Keypads description .................... - Page 4 User Manual SATEL 5.11.1 Viewing all events.....................30 5.11.2 Viewing the events required for Grade 3 ............30 5.11.3 Viewing the selected events ................30 5.11.4 Way of presenting events .................31 5.12 Programming the partition timer................31 5.13 Zone testing ......................32 5.14 Outputs control ......................33 5.14.1...
-
Page 5: General
The SATEL Company is manufacturer of a broad range of devices dedicated for use in security alarm systems. Further information is available on our website www.satel.eu or at the points of sale offering our products. -
Page 6: Authorization Of Users
User Manual SATEL 4. Authorization of users Operation of the alarm system is possible after the user authorization, which allows the control panel to verify that the user is authorized to perform the given operation. The authorization can be done on the basis of: ... -
Page 7: Operation Under Duress
25). SER TYPES 5. Operating the alarm system by means of LCD keypad SATEL offers the following keypads for INTEGRA Plus control panels: INT-KSG – LCD keypad with touch keys; INT-KLCD – LCD keypad with mechanical keys; INT-KLCDR – LCD keypad with mechanical keys and built-in proximity card reader;... - Page 8 User Manual SATEL Fig. 1. Keypads with flap. Fig. 2. Keypads without flap.
-
Page 9: Led Indicators
SATEL INTEGRA Plus 5.1.2 LED indicators Color Function description green ON – all keypad operated partitions are armed blinking – some keypad operated partitions are armed or exit delay countdown is running ON or blinking – alarm or alarm memory yellow blinking –... -
Page 10: Built-In Proximity Card Reader
User Manual SATEL 8 - enable/disable chime signal in the keypad; 9 - toggle the display between the standby mode and partition state display mode. The other keys enable you to: - enter the user menu (after entering the code);... -
Page 11: Code] - Arming / Disarming Menu
SATEL INTEGRA Plus 2 long beeps – invalid code/card, function not available or exiting the function without confirmation of the data entered (e.g. by using the key). 3 long beeps – unavailable function. Events signaled by sounds Only installer selected events are signaled. -
Page 12: Code] - User Menu
User Manual SATEL Two functions are available in the menu: Disarm all disarming all partitions Disarm selected disarming selected partitions [Code] – user menu After you enter the code and confirm using the key, the user menu will be displayed. The list of available functions depends on the user authority level, as well as the system status and configuration. -
Page 13: Edit User
SATEL INTEGRA Plus New RX key fob add keyfob supported by INT-RX module Rem. RX key fob remove keyfob supported by INT-RX module Button 1 assign function to keyfob button 1 Button 2 assign function to keyfob button 2 Button 3... - Page 14 User Manual SATEL Edit master edit existing master [select master] [list of parameters identical as in case of a new master] Remove master remove master Zone bypasses Inhibit temporary zone bypass Isolate permanent zone bypass Set time set control panel clock...
-
Page 15: Starting Functions
SATEL INTEGRA Plus Station 2B test start test transmission to station 2 – backup phone number Messaging test start messaging test Answering test display information on answered tel. call Prox. card test check proximity card number CA-64 PTSA test start mimic board test... -
Page 16: Entering Data By Means Of The Lcd Keypad
User Manual SATEL [52] All events [6] Set time [7] System state [8] Outputs control [9] Service mode [0] Downloading [01] Start DWNL-RS [02] Finish DWNL-RS [03] Start DWNL-MOD. [04] Start DWNL-TEL [07] ETHM-1 – DloadX [08] ETHM-1 – GuardX 5.3.4 Entering data by means of the LCD keypad... -
Page 17: Description Of User Functions
SATEL INTEGRA Plus Fig. 3. Example of how information is presented in the graphic programming mode. The blank fields are not available for editing. Entering decimal and hexadecimal values Digits are entered by pressing the suitable keys. Characters from A to F are available under the keys with numbers 2 and 3. - Page 18 User Manual SATEL Clear alarm – allows to silence the alarm. Clear other alarms – allows to silence the alarms from other partitions, to which the user has normally no access. Abort voice messaging – terminates the telephone messaging. The messaging can be cancelled automatically together with alarm clearing. The messaging cancellation rules are defined by the installer.
- Page 19 SATEL INTEGRA Plus The administrator defines whether the installer is to have access to the U SERS submenu (S option in the C submenu). CAN EDIT HANGE OPTIONS Masters – the submenu provides the following functions available to the installer: New master –...
- Page 20 User Manual SATEL things, enables the control panel to be programmed by using LCD keypad or D LOAD program. Enabling P option will clear the installer access time ERMANENT SERVICE ACCESS programmed with the S function. On the other hand, programming the...
- Page 21 SATEL INTEGRA Plus Zones – allows to check the status of zones in the partitions accessible to the user and operated from the keypad. The zone status is presented by means of a symbol. The numbers placed on the glass allow you to identify the zone numbers. On starting the function, the status of zones 1-32 is displayed.
- Page 22 User Manual SATEL CA-64 PTSA test – allows to test the mimic board. View masters – available to the administrator. It makes it possible to check in which objects the master users are created. Keypad name – allows to check the given keypad name.
-
Page 23: Arming
SATEL INTEGRA Plus Arming This section describes the operations that must be carried out by the user from the keypad in order to initiate the arming procedure. The arming procedure is ended at the running out of the exit delay time (if the procedure is ended successfully, the system becomes armed – see also F p. -
Page 24: Denial Of Arming
User Manual SATEL 1. Select the arming mode (press one of the keys: 0 – full arming; 1 – full arming + bypasses; 2 – arming without interior; 3 – arming without interior and without entry delay). 2. Press the key. -
Page 25: Two-Code Arming / Disarming
SATEL INTEGRA Plus Two-code arming / disarming If the partition is to be armed / disarmed with 2 codes, the user entering the first code must: 1. Enter the code and confirm with the key . 2. Scroll through the menu using the key until the A... - Page 26 User Manual SATEL Blocking time – parameter for the B type code (see: section U LOCKING PARTITION SER TYPES p. 25). Rights – define which functions can be used by the user. The following rights (permissions) are available: – Arming –...
-
Page 27: User Types
SATEL INTEGRA Plus ABAX confirmation – if an ABAX system keyfob has been assigned to the user, it is possible to determine the status of which outputs will be presented on the keyfob LEDs on pressing any button. Name – individual user name. -
Page 28: Edit User
User Manual SATEL At least one identifier, i.e. code, proximity card, DALLAS iButton or keyfob, must be assigned to the user. The new user may not be granted a higher authority level than the person who is adding that user to the system. -
Page 29: Adding Keyfob
SATEL INTEGRA Plus 5. If the number of card / iButton is to be entered, enter it from the keypad, and then press key. 7. You will be brought back to the list of functions for defining the user parameters. Instead... -
Page 30: Removing Keyfob
User Manual SATEL get confirmation that the function has been executed or information on the current status of the system. The installer can define the list of outputs by means of the keypad (ABAX CONFIRMAT S E ABAX function [S... -
Page 31: Zone Inhibiting
SATEL INTEGRA Plus For security considerations, the installer may reduce the number of zones that the user will be allowed to bypass. 5.10.1 Zone inhibiting The zones can be inhibited by the users having the Z right. The inhibited ONES BYPASSING zone will be bypassed until the partition to which the zone belongs is disarmed, or until the zone is unbypassed by the user. -
Page 32: Viewing The Event Log
User Manual SATEL shown in the upper right-hand corner of the display, if the zone is to be unbypassed upon pressing the key. 5.11 Viewing the event log The events viewing function, when started by the administrator or the ordinary user, provides no information about: ... -
Page 33: Way Of Presenting Events
SATEL INTEGRA Plus 5.11.4 Way of presenting events The following information is shown in the display upper line: – date and time of event occurrence; – additional information on the events in shortened form, e.g. number of partition, zone, user, timer, expander, keypad, etc. -
Page 34: Zone Testing
User Manual SATEL 15. After the arming time has been programmed, an additional function will be displayed, which allows you to define which arming mode will be activated by the given timer. By default, the timer activates the full arming mode. If another arming mode is to be activated, run this function (for the daily timer or individually for each day of the week) and, using the ... -
Page 35: Outputs Control
SATEL INTEGRA Plus 13. Look through the test results. To do so, enter again the Z submenu (see: steps ONES 1-5) and start the V function. You can scroll through the list of results, using IEW RESULTS the and keys. Press the or key to switch over the display to the graphic mode,... -
Page 36: Controlling The Remote Switch Type Of Outputs
The main task of the partition keypad is to arm/disarm one partition. Additionally, it offers a number of other functions, including e.g. the access control (supervision of a single door). Fig. 4. Partition keypads (INT-S and INT-SK keypads are shown without flaps). SATEL offers the following partition keypads: INT-S;... -
Page 37: Description Of Partition Keypads
SATEL INTEGRA Plus INT-SK; INT-SCR (multifunction keypad, offering the partition keypad functionality). The keypads are available with keys backlight in various color versions. The color version is indicated by an additional letter symbol included in the keypad designation (e.g. INT-S-GR –... -
Page 38: Sound Signaling
User Manual SATEL 6.1.4 Sound signaling Beeps generated when operating The installer can disable the sound signaling or replace it with blinking of the keys backlight. 1 short beep – pressing any digit key, confirmation that code has been entered or card has been read. -
Page 39: Code]
SATEL INTEGRA Plus – guard round confirmation; – enabling temporary partition blocking. Most of the abovementioned functions are available after enabling the L ] option for the partition keypad. Whether the functions are available may also FEATURE depend on the other keypad options (e.g. if the lock operates in the ON IF PARTITION ] mode, most of the functions will be unavailable). -
Page 40: Using The Entry Keypad
– turning on the 24. MONO type outputs; SWITCH – guard round confirmation. 8. Using the code lock The basic task of the code lock is to execute the access control function (supervise a single door). SATEL offers the following code locks: INT-SZ; INT-SZK. -
Page 41: Description Of Code Locks
SATEL INTEGRA Plus The code locks are available with keys backlight in various color versions. The color version is indicated by an additional letter symbol included in the code lock designation (e.g. INT-SZ-GR – green backlight; INT-SZ-BL – blue backlight). -
Page 42: Functions Available From Code Lock
User Manual SATEL 1 short beep – pressing any digit key or confirmation that code has been entered. 4 short and 1 long beeps – confirmation of door unlocking or execution of another function. 2 long beeps – unknown code/card. -
Page 43: Call Answering And Telephone Control
SATEL INTEGRA Plus The installer can configure the control panel so that acknowledgement of receiving the message by the user will: clear messaging other users; allow to get access to the INT-VG module voice menu. 10. Call answering and telephone control The information below does not apply to the control panels to which the INT-VG module is connected. -
Page 44: Telephone Control
User Manual SATEL 10.2 Telephone control 1. Get access to the phone call answering function (steps 1-2 in section A NSWERING PHONE CALLS 2. Within up to 15 seconds, press in turn the 2 and # keys on the telephone keypad. 4 short beeps and 1 long beep will confirm that you have got access to the telephone control function. - Page 45 SATEL SATEL INTEGRA Plus INTEGRA Plus Fig. 7. T-4 keyfob. A – numeration of keyfob buttons. Fig. 7. T-4 keyfob. A – numeration of keyfob buttons.
-
Page 46: Brief Description Of Operating The System From Keypad
12. Brief description of operating the system from keypad – 1. group (numbers: 1-32 / addresses 00-1F) blinking – trouble or trouble memory / Grade 3: – 2. group (numbers: 33-64 / addresses 20-3F) trouble or trouble memory, bypassed zones or –...
