- Page 1 QUICK USER MANUAL The full user manual and other manuals are available on www.satel.eu SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. 58 320 94 00 www.satel.eu versa_us_en 04/16...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Operating The Alarm System From Keypad

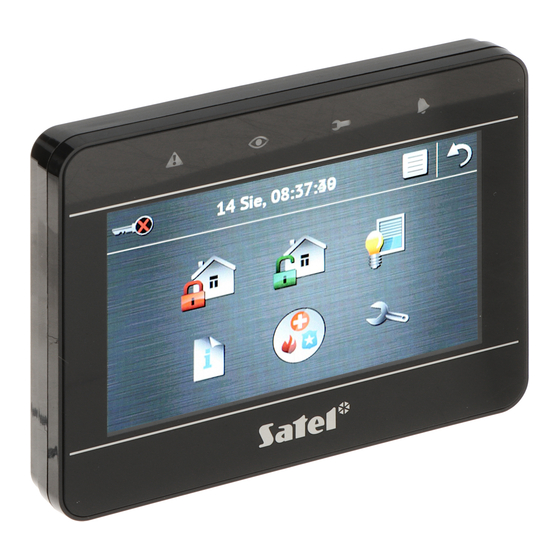

INT-TSH, please refer to the manual delivered with the keypad), VERSA-LCDM – hardwired LCD keypad with mechanical keys, VERSA-LCDR – hardwired LCD keypad with mechanical keys and built-in proximity card reader, VERSA-LCDM-WRL – wireless LCD keypad with mechanical keys and built-in proximity card reader, VERSA-LCD –... - Page 4 VERSA SATEL green LED – indicates the partition state (each red LED – indicates alarm or alarm memory in partition has its own LED) the partition (each partition has its own LED) ON – partition is armed The information is presented for 2 seconds and blinking –...
- Page 5 [94#] Manual MS tst [95#] MS1 test Triggering the alarm from keypad [96#] MS2 test fire alarm - press for 3 seconds [97#] VERSA version panic alarm - press for 3 seconds [98#] Expander ver. medical alarm - press for 3 seconds [99#] Supply volt.
-
Page 6: Proximity Cards
The factory default codes should be changed before you start using your alarm system (see: “Change own code”). 1.2 Proximity cards The VERSA-LCDR and VERSA-LCDM-WRL keypads have a built-in proximity card reader. You can use proximity cards (tags or other 125 kHz passive transponders) to: – arm the system, –... -
Page 7: Disarming And Alarm Clearing
In the day armed mode, the entry delay countdown may run, if the control panel is so configured by the installer. 1.3.5 Arming with proximity card VERSA-LCDR / VERSA-LCDM-WRL You can use one of the following methods to arm the system (consult with the installer which method is to be used): –... -
Page 8: Turning The Chime On /Off
VERSA SATEL 1.6 Turning the CHIME on /off The CHIME is five short sounds by means of which the keypad will inform you e.g. that a door / window is open, when the system is disarmed. The installer defines which zones of the alarm system can trigger the CHIME and whether it can be turned on/off by the users. - Page 9 SATEL VERSA If you want to see the status of all zones which you can inhibit/unbypass, press . The numbers around the display enable identification of the zones. Use the keys to move the cursor. To inhibit/unbypass a zone, hover the cursor over it and press any numeric key.
-
Page 10: Operating The Alarm System By Means Of Keyfob
The alarm system can be operated by means of keyfobs, if the 433 MHz keyfobs receiver expansion module (INT-RX-S / INT-RX), 433 MHz wireless system controller (VERSA-MCU) or ABAX wireless system controller (ACU-120 / ACU-270 / ACU-100 / ACU-250) is connected to the control panel. - Page 11 • enter the ID number of ETHM-1 Plus module (the individual identification number for the purpose of communication via the SATEL server), • enter the user code (which will be used when operating the control panel by means of the application), •...
