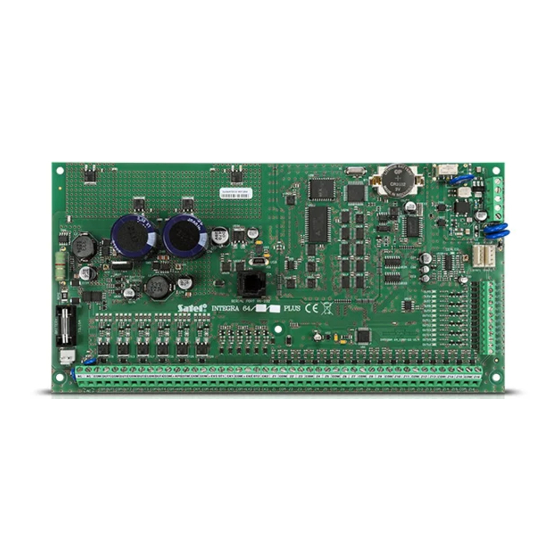

Summary of Contents for Satel Integra Plus

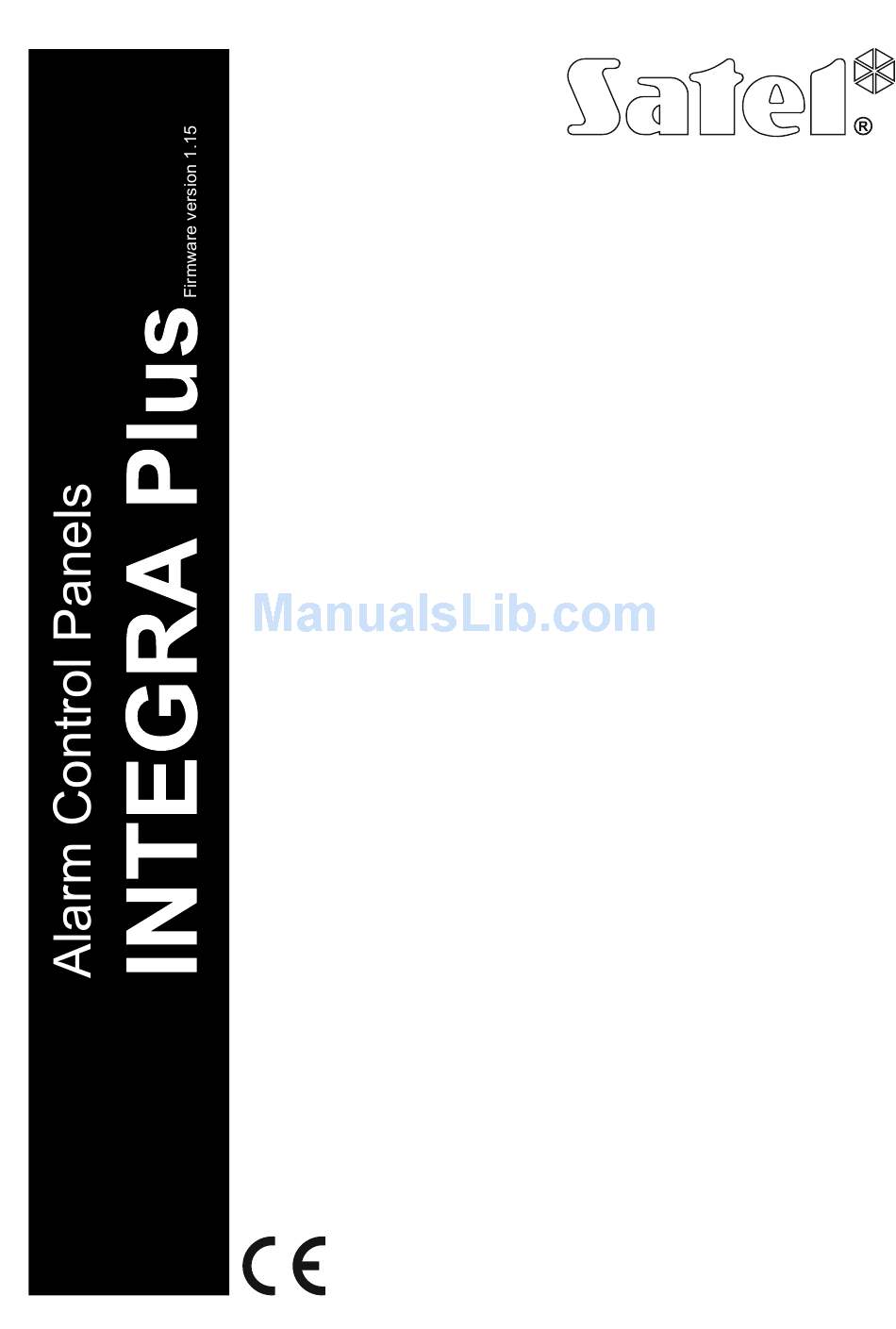

- Page 1 USER MANUAL SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. + 48 58 320 94 00 www.satel.eu integra_plus_u_en 04/16...
- Page 2 (the alarm will be signaled optically and acoustically, appropriate services will be notified, etc.), which may deter the potential burglars. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Table Of Contents
CONTENTS General..........................3 Technical reliability of the alarm system ................3 Alarm system operating costs................... 3 Authorization of users ....................... 4 Authorization with two identifiers ................4 Factory default codes ....................4 Operation under duress..................... 5 Operating the alarm system by means of LCD keypad............. 5 Keypads description .................... - Page 4 User Manual SATEL 5.11.1 Viewing all events.....................31 5.11.2 Viewing the events required for Grade 3 ............31 5.11.3 Viewing the selected events ................31 5.11.4 Way of presenting events .................31 5.12 Programming the partition timer................32 5.13 Zone testing ......................33 5.14 Outputs control ......................34 5.14.1...
-
Page 5: General
The SATEL Company is manufacturer of a broad range of devices dedicated for use in security alarm systems. Further information is available on our website www.satel.eu or at the points of sale offering our products. -
Page 6: Authorization Of Users
User Manual SATEL monitoring station, the control panel may repeat attempts every few minutes to send the code or to cease the attempts to send the code until a next event occurs. 4. Authorization of users Operation of the alarm system is possible after the user authorization, which allows the control panel to verify that the user is authorized to perform the given operation. -
Page 7: Operation Under Duress
URESS code (see “User types” p. 25). 5. Operating the alarm system by means of LCD keypad SATEL offers the following keypads for INTEGRA Plus control panels: INT-TSG – touchscreen keypad, INT-TSI – touchscreen keypad, INT-TSH – touchscreen keypad, INT-KSG –... - Page 8 User Manual SATEL Fig. 1. Keypads with flap. Entering the user code, i.e. the user authorization, will open a menu containing the functions that are available to the user. The functions are presented in two lines. The currently selected...
-
Page 9: Led Indicators
SATEL INTEGRA Plus function is indicated by the arrow on the left-hand side. How the function related information is presented depends on the specific character of the given function. The way of display backlighting is programmed by the installer. INT-KLCDS INT-KLCDL Fig. -
Page 10: Keys
User Manual SATEL If the installer has enabled the G 3 option: RADE the LEDs provide information about alarms only after the code has been entered and confirmed with the key, blinking of the LED means that there is a trouble in the system, some zones are bypassed, or that there was an alarm. -
Page 11: Code] - Arming / Disarming Menu
SATEL INTEGRA Plus 3 short beeps – signaling of: – starting the procedure of arming (there is exit delay in the partition) or arming (there is no exit delay in the partition), – disarming and/or alarm clearing, – turning output off, –... -
Page 12: Arming Menu
User Manual SATEL – one partition will be armed – if the user is authorized to arm the partition, has access to only one partition operated from the keypad and that partition is disarmed, – the arming/disarming menu will be displayed. - Page 13 SATEL INTEGRA Plus Arming mode select arming mode Cancel 1st code cancel consent to two code arming/disarming Change own code change own code Change tel.code change own telephone code Change prefix Prefix normal set normally used prefix Prefix duress set duress prefix...
- Page 14 User Manual SATEL Rem. prox. card remove proximity card New DALLAS add DALLAS iButton Remove DALLAS remove DALLAS iButton New RX keyfob add 433 MHz keyfob Rem. RX keyfob remove 433 MHz keyfob Button 1 assign function to keyfob button 1...
-
Page 15: Starting Functions
SATEL INTEGRA Plus Perm.DLOADX acc enable/disable permanent DLOADX access DLOADX IP set address of computer with DLOADX program GUARDX IP set address of computer with GUARDX program Erase s.message erase service note Tests Partitions check current state of partitions Zones... -
Page 16: Menu Shortcuts
User Manual SATEL 2. Press the or key to enter the submenu (the key allows to exit the submenu) or start the function. 5.3.3 Menu shortcuts Support for the user menu shortcuts can be disabled by the installer. - Page 17 SATEL INTEGRA Plus Selection from the multiple-choice list The functions that allow you to make multiple choice can be identified by an additional symbol situated at the right-hand side of the display: – displayed item is selected / option is enabled, –...
-
Page 18: Description Of User Functions
User Manual SATEL Characters available after next keystroke " & < > Table 3. Characters available when entering names. The upper case letters are available under the same keys (to change the letter case, press key. 5.3.5 Description of user functions View cleared alarms –... - Page 19 SATEL INTEGRA Plus [1] full arming + bypasses (allows the users to stay in the protected area) – the zones for which the option is enabled by the installer will be bypassed, BYPASSED IF NO EXIT [2] arming without interior (allows the users to stay in the protected area): ...
- Page 20 User Manual SATEL Events – the submenu contains functions which allow to view the events saved to the control panel memory (see: “Viewing the event log” p. 31). Reset zones – running the function will result in a temporary deactivation of the 43.
- Page 21 SATEL INTEGRA Plus communication with the GUARDX program through Ethernet, using the TCP/IP protocols (see: description of the ETHM-1 – GUARDX function, available in the submenu). It can be entered as a name or IP address. OWNLOADING Erase service message – allows the user to delete the service message.
- Page 22 local IP address, MAC number, public IP address, individual identification number for the purpose of communication via the SATEL server [ID]. Use the and keys to scroll the information. If several Ethernet modules are connected to the control panel, use the ...
-
Page 23: Arming
SATEL INTEGRA Plus The function is unavailable, if the time synchronization is running. Automatic time synchronization takes place every day at 05:30 and after the control panel restart. Service access – available to the master user (administrator). Allows to program the time period of installer access to the alarm system. -
Page 24: Full Arming The Selected Partitions
User Manual SATEL If the user can only arm one partition, the arming procedure will be initiated as soon as the code is entered and confirmed with the key. 5.4.2 Full arming the selected partitions 1. Enter the code and confirm with the key. -
Page 25: Failure Of Arming Procedure
SATEL INTEGRA Plus Bypassing violated zones when arming If the arming procedure could not be started, and a message on the display informs you that there are violated zones, you can review the list of such zones upon pressing the 2 key. To scroll through the list, use the ... -
Page 26: Triggering The Alarm From Keypad
User Manual SATEL reader (read-in of proximity card or DALLAS iButton). The installer can configure the alarm system so that the second code will have to be entered on another LCD keypad, partition keypad, etc. Triggering the alarm from keypad The installer can permit triggering alarms from the keypad. -
Page 27: User Types
SATEL INTEGRA Plus – Access temporary blocked partitions [Block p.access] – Change access code [Code changing] – Users editing – Zones bypassing [Zones inhibit] – Zone isolation [Zones isolate] – Clock setting – Trouble state checking [Troubles view.] – Event log reviewing [Events viewing] –... -
Page 28: Adding New User
User Manual SATEL Normal – basic type of user. One-time [Single] – the user will get one-time access. Renewable [Time renewable] – the user has access to the system for a defined period of time. The user validity time should be defined. Before the validity time expires, the control panel will prompt the user to change the code. -
Page 29: Edit User
SATEL INTEGRA Plus 5.8.3 Edit user The user can edit the users in relation to which he/she is the superior. For example, if the user A has created the user B, and the user B has created the user C, then the user A can edit the users B and C. -
Page 30: Adding Keyfob
User Manual SATEL 5.8.6 Adding keyfob 1. When adding or editing a user, run the N ABAX function KEYFOB KEYFOB (depending on which keyfob is to be added). 2. Using the and keys, select how the keyfob is to be added. The number of keyfob can be read during transmission by a device supporting keyfobs or entered manually. -
Page 31: Removing Keyfob
SATEL INTEGRA Plus Keyfobs are added to the master users (administrators) in the same way. 5.8.7 Removing keyfob 1. When adding or editing a user, run the R . RX .ABAX function KEY FOB KEYFOB (depending on which keyfob is to be removed). The appropriate function is only displayed when a keyfob has already been assigned to the user. -
Page 32: Zone Isolating
User Manual SATEL 2. Press in turn the 4 and 1 keys. The list of zones will be displayed. There is an additional symbol in the upper right-hand corner of the display to inform you about the given zone status: –... -
Page 33: Viewing The Event Log
SATEL INTEGRA Plus 5.11 Viewing the event log The events viewing function, when started by the administrator or the ordinary user, provides no information about: panic alarms, alarms triggered using the DURESS type code. 5.11.1 Viewing all events 1. -
Page 34: Programming The Partition Timer
User Manual SATEL – additional information on the events in shortened form, e.g. number of partition, zone, user, timer, expander, keypad, etc. Event description is displayed in the lower line. If no key is pressed for a few seconds, additional information on the event will be displayed, e.g. -
Page 35: Zone Testing
SATEL INTEGRA Plus activated, run this function (for the daily timer or individually for each day of the week) and, using the and keys, select another arming mode. Confirm, using the key. 16. Having programmed all parameters, press the key. -
Page 36: Outputs Control
User Manual SATEL Pressing the or key in the graphic mode will display information on another set of zones (see also description of the LEDs, p. 7). The test results can be deleted by means of the C function (T... -
Page 37: Controlling The Roller Shutter Outputs
6. Using the partition keypad The main task of the partition keypad is to arm/disarm one partition. Additionally, it offers a number of other functions, including e.g. the access control (supervision of a single door). SATEL offers the following partition keypads: INT-S, INT-SK, INT-SCR (multifunction keypad, offering the partition keypad functionality). -
Page 38: Description Of Partition Keypads
User Manual SATEL Description of partition keypads 6.1.1 LED indicators Color Function description green ON – partition armed ON or blinking – alarm or alarm memory yellow blinking – trouble or trouble memory Table 4. Description of LEDs in partition keypads. -
Page 39: Functions Available From The Partition Keypad
SATEL INTEGRA Plus 3 short beeps – signaling of: – starting the procedure of arming (there is exit delay in the partition) or arming (there is no exit delay in the partition), – disarming and/or alarm clearing. 4 short and 1 long beeps – confirmation that the function has been executed. -
Page 40: Code]
User Manual SATEL 6.2.2 [Code] Depending on the user type and authority level, keypad settings and the alarm system status, entering the code and confirming with the key will execute one or a few of the following functions: starting the partition arming procedure / arming, ... -
Page 41: Led Indicators
8. Using the code lock The basic task of the code lock is to execute the access control function (supervise a single door). SATEL offers the following code locks: INT-SZ, INT-SZK. The code locks are available with keys backlight in various color versions. The color version is indicated by an additional letter symbol included in the code lock designation (e.g. -
Page 42: Description Of Code Locks
User Manual SATEL Description of code locks Fig. 5. Code locks. 8.1.1 LED indicators Color Function description green ON – code lock is operated by the control panel ON – door unlocked yellow blinking – door open Table 5. Description of the code lock LEDs. -
Page 43: Functions Available From Code Lock
SATEL INTEGRA Plus 2 long beeps – unknown code/card. 3 long beeps – unavailable function. Events signaled by sounds Only installer selected events are signaled. t beeps – zone violation (CHIME). 5 shor door open too long Very short beeps –... -
Page 44: Call Answering And Telephone Control
User Manual SATEL allow to get access to the INT-VG module voice menu. 10. Call answering and telephone control The information below does not apply to the control panels to which the INT-VG module is connected. The call answering and telephone control functions are available to the users who have the one code. -
Page 45: Audio Alarm Verification
SATEL INTEGRA Plus 2. Within up to 15 seconds, pr ess in turn the 2 and # keys on the telephone keypad. 4 short beeps and 1 long beep will c onfirm that you have got access to the telephone control function. - Page 46 User Manual SATEL Fig. 6. APT-100 keyfob. A – numeration of LEDs. B – numeration of keyfob buttons. Fig. 7. T-4 keyfob (433 MHz keyfob). A – numeration of keyfob buttons. Fig. 8. MPT-300 keyfob (433 MHz keyfob). A – numeration of keyfob buttons. The button designated with digit 6 corresponds to the combination of buttons 1 and 3 in other 433 MHz keyfobs.
-
Page 47: Manual Update History
SATEL INTEGRA Plus 12. Manual update history Firmware Date Introduced changes version Information on INTEGRA 256 Plus control panel has been added. 2013-08 1.12 Information on INT-TSG keypad has been added (p. 5). Note about the user having S right has been added (p. -
Page 48: Brief Description Of Operating The System From Keypad
13. Brief description of operating the system from keypad – 1. group (numbers: 1-32 / addresses 00-1F) blinking – trouble or trouble memory / Grade 3: – 2. group (numbers: 33-64 / addresses 20-3F) trouble or trouble memory, bypassed zones or –...
