Summary of Contents for Satel Integra

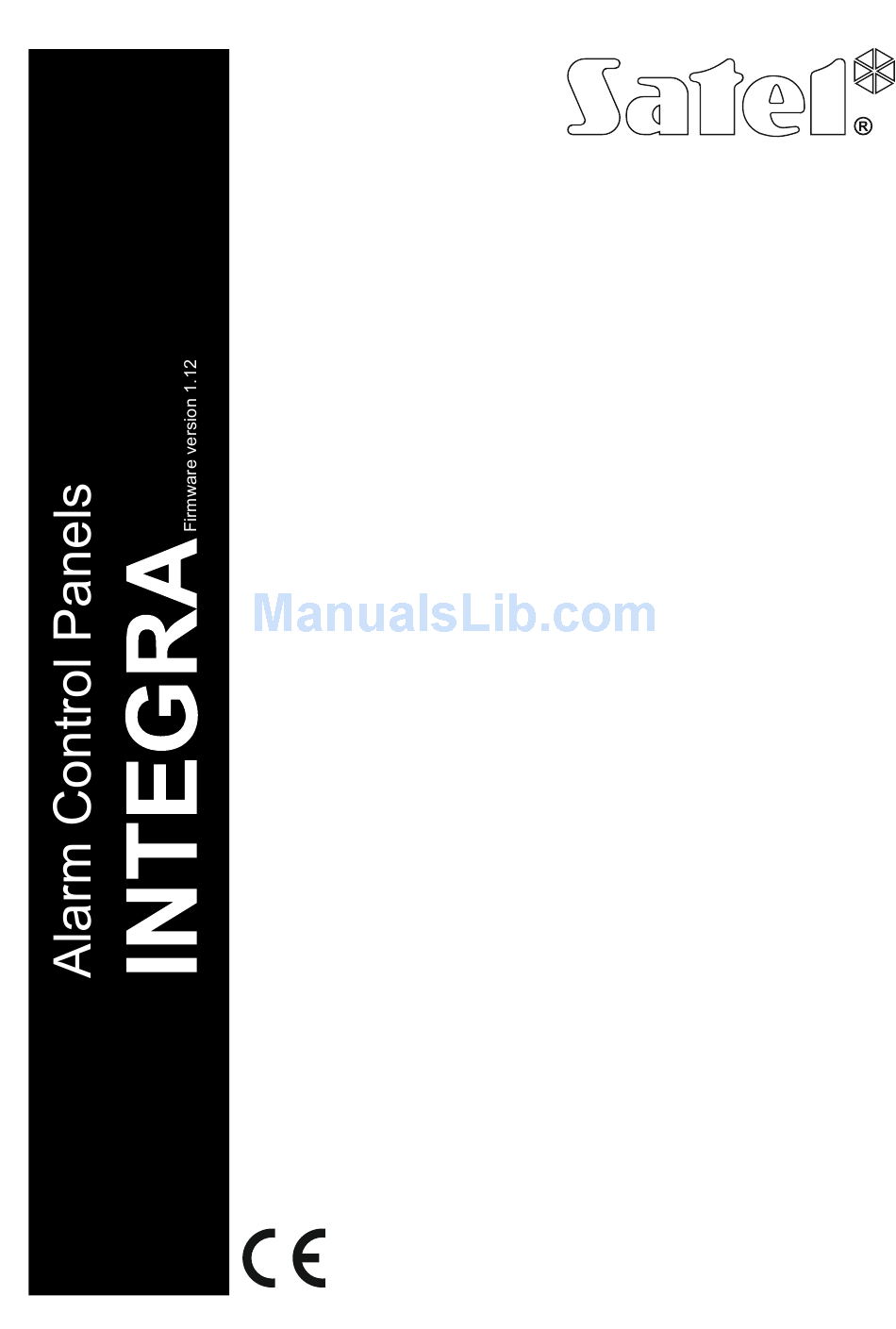

  • Page 1 USER MANUAL SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.eu integra_u_en 12/13...
  • Page 2 (the alarm will be signaled optically and acoustically, appropriate services will be notified, etc.), which may deter the potential burglars. The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
  • Page 3 Changes made to the firmware version 1.12 New keypads: System operation  INT-KLFR – LCD keypad with mechanical keys and built-in proximity card reader;  INT-TSG – touchscreen keypad;  INT-TSI – touchscreen keypad. New function: C User functions HANGE TEL CODE Zone test duration can be up to 50 minutes (earlier: up to 25 minutes).

  • Page 4: Table Of Contents

    User Manual SATEL CONTENTS General ..........................4 Technical reliability of the alarm system ................4 Alarm system operating costs ...................4 Authorization of users .......................5 Authorization with two identifiers................5 Factory default codes ....................5 Operation under duress .....................6 Operating the alarm system by means of LCD keypad.............6 Keypads description ....................6...
  • Page 5 Telephone control....................43 10.3 Audio alarm verification ................... 43 11. SMS control only INTEGRA 128-WRL................43 12. Operating the alarm system by means of keyfob............44 13. Manual update history ....................45 14. Brief description of operating the system from keypad ........... 46...

  • Page 6: General

    The SATEL Company is manufacturer of a broad range of devices dedicated for use in security alarm systems. Further information is available on our website www.satel.eu or at the points of sale offering our products.

  • Page 7: Authorization Of Users

    SATEL INTEGRA 4. Authorization of users Operation of the alarm system is possible after the user authorization, which allows the control panel to verify that the user is authorized to perform the given operation. The authorization can be done on the basis of: ...

  • Page 8: Operation Under Duress

    (see section U p. 26). SER TYPES 5. Operating the alarm system by means of LCD keypad SATEL offers the following keypads for INTEGRA control panels: INT-TSG – touchscreen keypad; INT-TSI – touchscreen keypad; INT-KSG – LCD keypad with touch keys;...

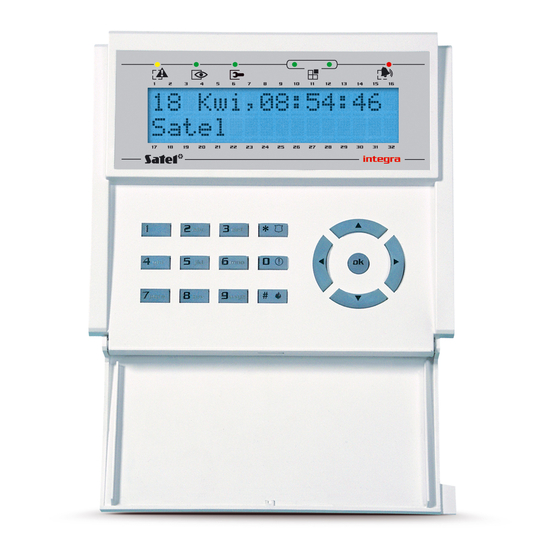

  • Page 9 SATEL INTEGRA INT-KLCD / INT-KLCDR INT-KLCDK INT-KLFR Fig. 1. Keypads with flap.

  • Page 10: Led Indicators

    User Manual SATEL INT-KLCDS INT-KLCDL Fig. 2. Keypads without flap. 5.1.2 LED indicators Color Function description green ON – all keypad operated partitions are armed blinking – some keypad operated partitions are armed or exit delay countdown is running ON or blinking – alarm or alarm memory yellow blinking –...

  • Page 11: Keys

    SATEL INTEGRA  blinking of the LED means that there is a trouble in the system, some zones are bypassed, or that there was an alarm. 5.1.3 Keys The keys designated with digits and letters enable entering the code and data, when using the functions available in the menu.

  • Page 12: Code] - Arming / Disarming Menu

    User Manual SATEL – toggling the display between the standby mode and the partition status presentation mode, using the 9 key; – exiting the function and returning to the menu after confirmation of the data entered. 4 short beeps and 1 long beep – signaling of: –...

  • Page 13: Disarming Menu

    SATEL INTEGRA – the user has access to a number of partitions operated from the keypad; – none of the partitions accessible to the user is armed; – there is no alarm. Two functions are available in the menu: Arm all...
  • Page 14 User Manual SATEL Users New user add new user Code set code Telephone code set telephone code Partitions assign partitions available to the user Type select type of code Schedule select time schedule Existence time set code validity time Bypass time...
  • Page 15 SATEL INTEGRA Button 4 assign function to keyfob button 4 Button 1 and 2 assign function to combination of keyfob buttons 1 & 2 Button 1 and 3 assign function to combination of keyfob buttons 1 & 3 Events (RX)

  • Page 16: Starting Functions

    LOAD Panel version display information on control panel firmware version STM prg.version display inf. on ABAX syst. firmware [only INTEGRA 128-WRL] GSM IMEI/v/sig. display information on GSM telephone [only INTEGRA 128-WRL] IP/MAC ETHM-1 display inf. on ETHM-1 module IP address and MAC number...

  • Page 17: Menu Shortcuts

    [01] Start DWNL-RS [02] Finish DWNL-RS [03] Start DWNL-MOD. [04] Start DWNL-TEL [05] Start DWNL-CSD [only INTEGRA 128-WRL] [06] Start DWNL-GPRS [only INTEGRA 128-WRL] [07] ETHM-1 – DloadX [08] ETHM-1 – GuardX 5.3.4 Entering data by means of the LCD keypad...
  • Page 18 User Manual SATEL – displayed item is not selected / option is disabled. Press any numeric key to change the currently displayed symbol to another one. To scroll the list of items, use the  (down) or  (up) key.

  • Page 19: Description Of User Functions

    SATEL INTEGRA Shown on the left side in the upper line of the display is information about the letter case: [ABC] or [abc] (it will be displayed after pressing any key and will be visible for a few seconds after the last keystroke).
  • Page 20 31). VENT LOG REVIEWING The content of received SMS messages is also saved to the events log of the INTEGRA 128-WRL control panel. Reset zones – running the function will result in a temporary deactivation of the 43. R...
  • Page 21 SATEL INTEGRA Change options – the following functions are available in the submenu: Keypad chime – turns on/off the chime signal in the keypad (signaling violations of selected zones). Outputs chime – allows to block the chime signal from selected partitions on the 11.
  • Page 22 User Manual SATEL - alarm, - fire alarm memory, - alarm memory, - armed, - disarmed, not ready to be armed (violated zones), - disarmed, ready to be armed. Zones – allows to check the status of zones in the partitions accessible to the user and operated from the keypad.
  • Page 23 STM program version – displays information on the program version of the processor used to operate ABAX system and control panel zones. only INTEGRA 128-WRL GSM IMEI/v/sig. – allows to check the level of signal received by the GSM telephone antenna, individual identification number of the telephone, and the telephone version.

  • Page 24: Arming

    Start DWNL-CSD – enables remote programming through the built-in GSM communicator, using CSD technology, by means of the D X program. LOAD only INTEGRA 128-WRL Start DWNL-GPRS – enables remote programming through the built-in GSM communicator, using GPRS (General Packet Radio Service), by means of the D LOAD program.

  • Page 25: Quick Arming

    SATEL INTEGRA 2. Using the  key, scroll through the menu until the A function is found. RMING MODE 3. Press the key. A list of arming modes will be displayed (see: description of the A RMING function, p. 17).

  • Page 26: Disarming And Alarm Clearing

    User Manual SATEL Disarming and alarm clearing Enter the code and confirm with the key (see: section [C – ARMING DISARMING MENU p. 10). If only selected partitions are to be disarmed (D function), the ISARM SELECTED partitions should be selected in the same way as when arming the selected partitions.
  • Page 27 SATEL INTEGRA The following data can be defined for the user: Code – a sequence of digits for authorization of the user when using keypads and code locks. The control panel supports codes consisting of 4 to 8 characters, however the installer can define the minimum length of the code.

  • Page 28: User Types

    / DALLAS iButton can be assigned to the user, which will allow the user to operate the system by means of readers. Keyfobs – in case of the INTEGRA 128-WRL control panel or any other control panel to which a module with keyfob support is connected (ACU-100, ACU-250, INT-RX or INT-RX-S), a keyfob can be assigned to the user, which will allow to operate the system remotely.

  • Page 29: Adding New User

    SATEL INTEGRA Cash machine zones bypassing [Acces.to cash m.] – the code to be used to unblock access to the cash dispenser (the 24H C type zones will be temporarily ASH MACHINE bypassed in the partition). Guard – using this code means having made the round (additionally, it can result in the partition being temporarily bypassed for the duration of guard round).

  • Page 30: Removing A User

    User Manual SATEL 5.8.4 Removing a user The user can remove the users in relation to which he/she is the superior. For example, if the user A has created the user B, and the user B has created the user C, then the user A can remove the users B and C.

  • Page 31: Removing Keyfob

    SATEL INTEGRA 7. Using the  key, find the B 1 function in the list, and then press the key. UTTON 8. Using the  and  keys, select which zone is to be violated on pressing the 1 button in the keyfob (you can also enter the zone number from the keypad), and then press the key.

  • Page 32: Master Users (Administrators)

    User Manual SATEL The administrators' keyfobs are removed in the same way. Master users (administrators) The master users (administrators) can be added, edited and removed by the installer. There can be 1 administrator in each object. The administrator has access to all partitions in the object and also specifies how the system can be accessed by using the service code.

  • Page 33: Unbypassing

    SATEL INTEGRA 1. Enter the code and confirm with the key . 2. Press in turn the 4 and 2 keys. The list of zones will be displayed. There is an additional symbol in the upper right-hand corner of the display to inform you about the given zone status: –...

  • Page 34: Viewing The Selected Events

    User Manual SATEL 5.11.3 Viewing the selected events 1. Enter the code and confirm with the key . 2. Press in turn the 5 and 1 keys. 3. When the S function is displayed, press the key. The list of event types ELECT EVENTS will be displayed.

  • Page 35: Zone Testing

    SATEL INTEGRA 6. Using the  and  keys, find in the list the partition for which the timer is to be programmed. 7. Press the key . 8. When the A option is displayed, make sure it is enabled (the...

  • Page 36: Outputs Control

    User Manual SATEL 11. Press the key . The zone test will start. Beginning of the zone test in any partition will start the test mode in all ABAX system wireless devices which are used together with the control panel (the wireless detectors will signal violations by means of LEDs).

  • Page 37: Controlling The Mono Switch Type Of Output

    The main task of the partition keypad is to arm/disarm one partition. Additionally, it offers a number of other functions, including e.g. the access control (supervision of a single door). SATEL offers the following partition keypads: INT-S ; INT-SK ;...

  • Page 38: Description Of Partition Keypads

    User Manual SATEL INT-S INT-SK INT-SCR Fig. 4. Partition keypads (INT-S and INT-SK keypads are shown without flaps). Description of partition keypads 6.1.1 LED indicators Color Function description green ON – partition armed ON or blinking – alarm or alarm memory yellow blinking –...

  • Page 39: Built-In Proximity Card Reader

    SATEL INTEGRA In the INT-SCR keypad, the button is additionally available. It controls the keypad OC type output (the output is active, when the button is pressed). 6.1.3 Built-in proximity card reader The INT-SCR keypad has a built-in reader which enables operation by means of proximity cards (proximity tags or other 125 kHz passive transponders).

  • Page 40: Functions Available From The Partition Keypad

    User Manual SATEL Functions available from the partition keypad 6.2.1 [Code] Depending on the user type and authority level, keypad settings and the alarm system status, entering the code and confirming with the key will result in: – unlocking the door (activating the relay);...

  • Page 41: Code Changing

    SATEL INTEGRA 6.2.6 Code changing The installer can permit the change of own code by means of the partition keypad. 1. Press the 1 key for 3 seconds. 2. When the LEDs start blinking alternately, enter the old code and confirm it with the key.

  • Page 42: Using The Code Lock

    8. Using the code lock The basic task of the code lock is to execute the access control function (supervise a single door). SATEL offers the following code locks: INT-SZ ; INT-SZK . The code locks are available with keys backlight in various color versions. The color version is indicated by an additional letter symbol included in the code lock designation (e.g.

  • Page 43: Sound Signaling

    SATEL INTEGRA 8.1.3 Sound signaling Beeps generated when operating The installer can disable the sound signaling or replace it by blinking of the keypad backlight. 1 short beep – pressing any digit key or confirmation that code has been entered.

  • Page 44: Call Answering And Telephone Control

    User Manual SATEL 2 long beeps – an invalid code has been entered (the message has not been confirmed). If the control panel is sending messages about several events and confirmation of the voice messages is required, each message should be confirmed. The first message must be confirmed before the second message can be played back, an so on.

  • Page 45: Telephone Control

    11. SMS control only INTEGRA 128-WRL The INTEGRA 128-WRL control panel can be operated by means of the SMS messages containing suitable control commands. The content of commands and the additional rules of how to use them (using the lower case and upper case letters, adding the telephone code to the content of sent SMS message, etc.) are to be defined by the installer.

  • Page 46: Operating The Alarm System By Means Of Keyfob

    User Manual SATEL – send the USSD codes to the operator of SIM card installed in the module (e.g. to check the card account status or recharge it). The answer received from the operator is forwarded in the form of SMS message to the telephone number from which the control command was sent.

  • Page 47: Manual Update History

    SATEL INTEGRA For the INTEGRA 128-WRL control panel or any other control panel to which the ACU-100, ACU-250, INT-RX or INT-RX-S module is connected, you can control the system using the keyfob. The user can have up to 2 keyfobs: –...

  • Page 48: Brief Description Of Operating The System From Keypad

    03 Start DWNL-MOD. 9 – toggle display between standby mode and partition 04 Start DWNL-TEL status mode 05 Start DWNL-CSD [INTEGRA 128-WRL] – trigger medical (aux) alarm 06 Start DWNL-GPRS [INTEGRA 128-WRL] – trigger fire alarm 07 ETHM-1 – DloadX –...
