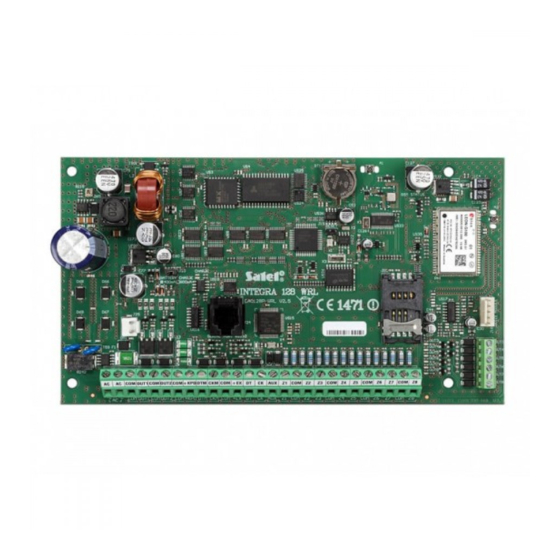

Satel Integra 128-WRL Programming Manual

Alarm control panels
Hide thumbs Also See for Integra 128-WRL:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
PROGRAMMING
integra_p_en 08/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Integra 128-WRL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Satel Integra 128-WRL

Summary of Contents for Satel Integra 128-WRL

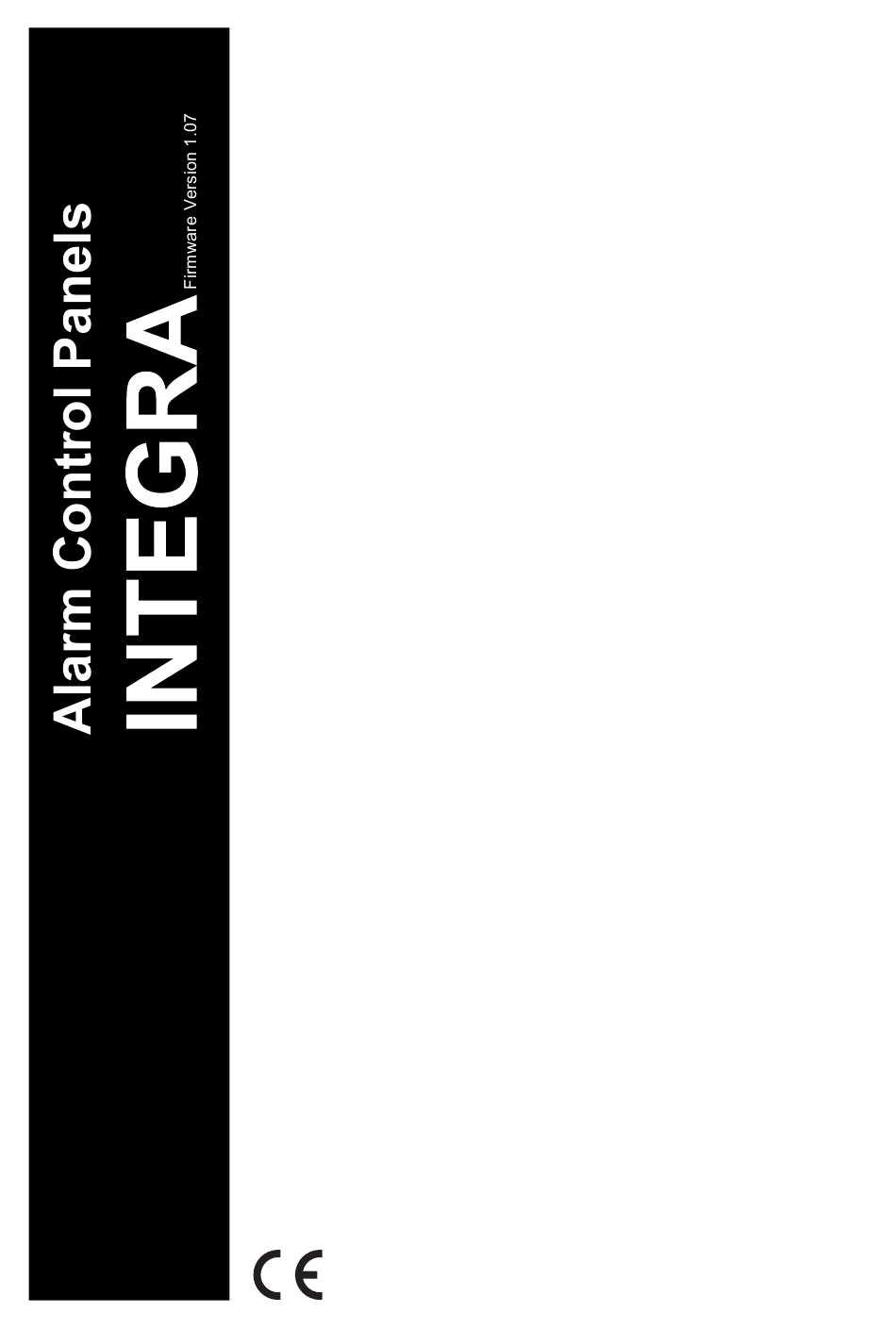

  • Page 1 PROGRAMMING integra_p_en 08/09...
  • Page 2 The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website. Please visit us: http://www.satel.eu DECLARATION OF CONFORMITY...
  • Page 3 New functions of INTEGRA control panels in version 1.07 Zones Option to use resistors of different values in 2EOL configuration. Zone types: – 63. T ROUBLE – 91. D ETECTOR MASK Option N for zone type 47: N O RESTORE EVENT O ALARM ACTION Option D for zone type 91: D...

  • Page 4: Table Of Contents

    INSTALLER PROGRAM 3.2.1 Local programming........................... 32 3.2.2 Remote programming with the use of modem ................. 33 3.2.3 Remote programming with the use of GPRS technology only INTEGRA 128-WRL ....... 38 3.2.4 Remote programming through the Ethernet (TCP/IP) network............39 X–...
  • Page 5 11.1 Activation of the phone calls answering ................. 87 11.2 Activation of the remote control....................87 12. SMS control only INTEGRA 128-WRL ................. 88 12.1 Activation of the SMS control ....................88 13. Control of outputs from LCD keypad................89 14.

  • Page 6: General

    Information relating to the INTEGRA 128-WRL only is additionally highlighted. 2. Control Panel Firmware Replacement Available on the www.satel.eu website is the current version of control panel firmware and the F X program enabling to write it to the control panel. The firmware replacement,...

  • Page 7: Programming

    INTEGRA Programming In order to begin the firmware replacement, launch the STARTER program in the control panel. It can be done in two ways: 1. Select the function from the service mode menu ( S ERVICE MODE ESTARTS TARTER 2. Short-circuit the RESET pins when starting the control panel. Remove the short-circuit immediately after power-up (approx.

  • Page 8: Service Mode

    SATEL INTEGRA 3.1.1 Service mode In order to start the service mode: 1. Enter the service code (by default 12345) and press [ * ]. 2. Using the key, select the item S from the list and press the [#] or [ ] ERVICE MODE key.
  • Page 9 INTEGRA Programming Note: After identification, the addresses in keypads and expanders must not be changed. 7. End the service mode with the function E . When the keypad displays ND SERVICE the message "Save data to FLASH memory? 1=Yes", press the key with number 1 to save the new settings.

  • Page 10: Service Mode Menu

    SATEL INTEGRA 3.1.3 Service mode menu [SERVICE CODE][ * ][9] (starting the service mode with a shortcut) Note: Functions relating to INTEGRA 128-WRL control panel only are highlighted by white font on black background. Service end Configuration Service code INTEGRA ident.
  • Page 11 INTEGRA Programming Exit delay Auto-arm delay Al. verify time (prealarm) Al. verify time (audible) Guard – armed Guard – disarm. Time for guard. C. mach. blk.del. C. mach. blk. time Zones Name Names (by numbers) (Functions relating to the Hardware LCD keypads Settings Name...
  • Page 12 SATEL INTEGRA Alarm messages Part. al. mess. Zone al. mess. Alarms Fire alarm Medical alarm Panic alarm Silent panic 3 wrong codes Options Entry time s. Exit time sig. Alarm signal. New trbl. sign. Key sounds Trbl. in p.arm. Zone violation Auto-arm delay Unkn.
  • Page 13 INTEGRA Programming State part. (select) Zone characters Part. characters Code+arrows Code function ( Code part ( Code outputs ( Code zones ( Sensitivity** Card close Card close long Door to open Kpd tamper Z1 (n) in kpd (n – zone no. in system) Z2 (n) in kpd Names (by addresses) DTM short...
  • Page 14 SATEL INTEGRA Names DT1 short Loud tamp.DT1 DT2 short Loud tamp.DT2 Identification LCD keypads id. Expanders id. (Ident. of addressable zones) Keypads addr. EOL R1 resistor EOL R2 resistor Use GSM phone PIN code: PUK code: Modem format SMS centre:...
  • Page 15 INTEGRA Programming Options Tel. options. Mon. TELEPHONE Mon.GPRS Mon.SMS Mon. ETHM-1 Tel. messaging Modem answer. Voice answer. Remote control Tone dialing Groud start No dialton.tst No answer test Dbl. voice msg. Double call External modem ISDN/GSM modem Pulse 1/1.5 Printer options Printing Monitor.
  • Page 16 SATEL INTEGRA Various options Simple codes Notify of code Confirm with 1 Autoabort msg. (cancel messaging together with alarm clearance) SM -> menu (reset) Tests -> menu (reset) Powersaver (switch off display/keys backlighting on AC loss) Fast exp. bus (fast data transmission on expander buses) No rest.
  • Page 17 Daylight saving Summer time Winter time Time server (address of time synchronization server; Ethernet module or control panel INTEGRA 128-WRL is required to execute the function) Time zone (zone must be defined for the time synchronization to work properly) Zones Details Sensitivity [x20ms] / Pulses duration / Sensitivity.
  • Page 18 SATEL INTEGRA Parameters Partition (by zone nos.) (by zone nos.) Sensit. [x20ms] (by zone nos.) Type (by zone nos.) Entry delay (by zone nos.) Max. violat. time (by zone nos.) Max. no-viol.t. (by zone nos.) Zone options (by details & zone nos.)
  • Page 19 INTEGRA Programming Test Names (by output nos.) Outputs groups Group 1 (2, 3, 4) outputs Group 1 (2, 3, 4) name Outs state by Timers Times Timer 1 (2...64) Names Timer 1 (2...64) User schedules Settings Schedule 1 (2...8) (assign timers to schedule) Names Monitoring Mon.
  • Page 20 SATEL INTEGRA Station 1 Tel. 1 number Tel. 2 number Tel. 1 format Tel. 2 format Server address Server port Key (server) Key (GPRS) Key (ETHM-1) Tel.num.for SMS SMS format Repetition cnt. Suspension time TELIM/SIA prefix Identifier 1 (2...8) Identifier sys.
  • Page 21 INTEGRA Programming Id. assignment Partitions Zones LCD keypads Expanders TELIM codes Event codes Identifier 1 (2...8) Zones Alarm Restore Tamper Tamper rst. Trouble Trouble rst. Bypass Unbypass Violation Partitions Disarm Clear alarm Duress alarm Defer autoarm No guard LCD keypads Panic alarm Fire alarm Medical alarm...
  • Page 22 SATEL INTEGRA Identifier sys. Troubles AC (230V) loss Battery trouble Settings clear Monitoring trouble Fire zones test Burglary zones test Real-time clock trouble OUT1 trouble OUT2 trouble OUT3 trouble OUT4 trouble LCD keypads supply trbl. Expanders supply trbl. DTM bus trouble.
  • Page 23 INTEGRA Programming Other RAM memory error Call back DWNL finished Unsuccessful DWNL attempt Manual test of monitoring Periodical test of monitoring Monitoring test Start of service mode End of service mode Main panel restart Event log 50% full Event log 90% full Test at Test every Messaging...
  • Page 24 SATEL INTEGRA Assignment Zone alarms Synthesizer Pager message Telephones Zone tampers Burglary alarms Fire alarms Medical alarms Duress alarms Tampers AC (230V) loss Outputs Messages Message 1 (2...64) Pager types Pager 1 (2...3) Pager params Msg. abort in P. Tel. 1 (2...16) Msg.
  • Page 25 INTEGRA Programming SMS control SMS -> z.viol. SMS n [n – SMS message number: 1...32] SMS n - zones SMS -> function SMS n SMS n – fun. SMS n – part. SMS n – zones SMS n – outs. SMS n –...
  • Page 26 SATEL INTEGRA Menu of service functions for modules to be connected to the keypad bus Structure Hardware LCD keypads Settings). Settings CA-64 PTSA Zones Bypass pattern Long violation pattern No violation pattern Tamper alarm pattern Alarm pattern Tamper memory pattern...
  • Page 27 INTEGRA Programming ETHM-1 Use DHCP DHCP-DNS Port (WWW) Address IP Netmask Gateway Port (DloadX) Port (others) Key (DloadX) Key (others) Connect DloadX Connect GuardX Connect Intern. Connect GSM Tamper Fail. – event Fail. – alarm INT-RS DSR control RX control Tamper in part.:...
  • Page 28 SATEL INTEGRA Menu of service functions for modules to be connected to the keypad bus Structure Hardware Expanders Settings). Settings INT-S / INT-SK Lock feature Lock Lock feature Relay ON time Relay type Unauth. event Unauth. alarm Max. door open...
  • Page 29 INTEGRA Programming Confirmation Backlight Auto backlight No autorst.3t. Partition INT-SZ / INT-SZK Lock Lock feature Relay ON time Relay type Unauth. event Unauth. alarm Max. door open Dependent door1 Dependent door2 Doors on fire Master users Users Alarms Fire alarm Medical alarm Panic alarm Silent panic...
  • Page 30 SATEL INTEGRA INT-SCR Lock feature Lock Lock feature Relay ON time Unauth. event Unauth. alarm Max. door open Dependent door1 Dependent door2 Doors on fire Master users Users Alarms Fire alarm Medical alarm Panic alarm Silent panic 3 wrong codes...
  • Page 31 INTEGRA Programming Confirmation Backlight Auto backlight No autorst.3t. Partition INT-ENT Master users Users 3 wrong codes BI outs ctrl. MONO outs ctr. Guard control Signalling Delay act. time Code entered Confirmation Backlight Delay act. time No autorst.3t. Partition ACU-100 No autorst.3t. Tamper Response period New device...
  • Page 32 SATEL INTEGRA CA-64 SR / CA-64 DR Lock feature Lock Lock feature Relay ON time Unauth. event Unauth. alarm Max. door open Dependent door1 Dependent door2 Doors on fire Master users Users Readers Reader A Reader A sound Reader A LED.
  • Page 33 INTEGRA Programming No autorst.3t. Partition INT-RX No autorst.3t. Partition CA-64 E / CA-64 O / INT-ORS / No autorst.3t. INT-IORS / CA-64 SM Tamper in part. CA-64 Ei (v. 2.00/2.01) No autorst.3t. Tamper in part. EOL Rp resistor CA-64 Ei (v. 4.00) No autorst.3t.

  • Page 34: Dload X- Installer Program

    (RJ type socket) to the computer COM port. The connection should be made as shown in Fig. 1 on page 4 (you can buy a ready-made cable, manufactured by SATEL). 2. In case of remote programming, communication with the control panel can be established in several ways: –...

  • Page 35: Remote Programming With The Use Of Modem

    The GSM communicator of INTEGRA 128-WRL control panel supports sending data with the use of CSD technology, i.e. at a rate of 9.6 kb/s. In case of the other control panels, higher transmission rates can be obtained after an external modem is connected.
  • Page 36 4. Connection initialized by means of SMS, after reception of which the control panel sets up the connection (GSM module operating as an external modem, INTEGRA 128-WRL control panel). Irrespective of the chosen method of establishing communication, you must start the D LOAD program on your computer and initialize the modem connected to the computer.
  • Page 37 INTEGRA Programming on the control panel side. This will open a window in which information on the modem initialization will be displayed. In the modem programming mode, access to the control panel is protected by a ten-byte code (over 1.2x10 combinations).
  • Page 38 SATEL INTEGRA 3. If the parameters mentioned above are set correctly, the modem is ready for operation with the control panel. If any parameter is set to other value, set it properly. Command for parameter setting consists of fixed prefix AT and parameter value required (for example, when profile specifies E0 V0, the command for setting the proper parameter value is ate1v1 , after which the modem answers OK).
  • Page 39 OUBLE CALL external ISDN or GSM modem. In case of the INTEGRA 128-WRL control panel, they are only meaningful when communication is to be effected at a rate of 300 bps or an external analog modem is connected.

  • Page 40: Only Integra 128-Wrl

    Connection initialized by means of SMS, after reception of which the control panel sets up the connection Send an SMS message to the INTEGRA 128-WRL control panel / to the GSM module connected to the alarm control panel. In case of the INTEGRA 128-WRL control panel the SMS message should look as follows: „xxxx=csd=”...

  • Page 41: Remote Programming Through The Ethernet (Tcp/Ip) Network

    Connection initiated by SMS message, after reception of which the control panel establishes connection An SMS message should be sent to the INTEGRA 128-WRL control panel. The message should look as follows: „xxxx=gprs=” („xxxx” denotes the code defined in control panel which triggers communication with D X program) –...

  • Page 42: Guard X- User Program

    – through external modem connected to the RS-232 port on control panel mainboard, by means of telephone network; – through SATEL made GSM module, operating as an external modem with the use of CSD technology, by means of GSM cellular telephony network;...
  • Page 43 INTEGRA Programming PIN Code – PIN code of the SIM card. Entering a wrong code may result in blocking the SIM card. Note: If the PIN code of SIM card is inconsistent with that entered in the control panel settings, the control panel will inform of it by means of a suitable message and an audible signal in the LCD keypad.

  • Page 44: Wireless System Only Integra 128-Wrl

    5. Wireless System only INTEGRA 128-WRL The INTEGRA 128-WRL control panel can directly support (without connecting any additional modules) up to 48 wireless devices (up to 48 wireless zones/outputs) and 248 key fobs of ABAX system. The ABAX system uses two-way communication in 868.0 MHz – 868.6 MHz frequency band.

  • Page 45: Hardwired Zones/Output Expanders

    Remove ABAX keyfobs – function only available in LCD keypad. It enables deletion of all data regarding the ABAX system key fobs in INTEGRA 128-WRL control panel (in ACU-100 controllers connected to the control panel). It also applies to information on the zones assigned to buttons of individual users' key fobs.

  • Page 46: Wireless Detectors

    SATEL INTEGRA Note: If the communication with control panel is lost, all of the previously activated outputs will enter the inactive state after 20 response periods. Additionally, the ACX-201 expander will transmit information on: – status of AUX1, AUX2 supply outputs – overload information is sent when the AUX1 or AUX2 output load exceeds 0.5 A.

  • Page 47: Apmd-150 Detector Configuration

    INTEGRA Programming keys. The pet immunity option can be enabled (the symbol on the display) or disabled by pressing any numerical key, In the D X program, a two-digit sequence is to be entered. The first digit refers to LAOD the sensitivity (see Table 3), and the other –...

  • Page 48: Agd-100 Detector Configuration

    SATEL INTEGRA function). Use the keys to select the reed switch. In order to ONFIGURATION configure operating parameters of the input for roller shutter detector, select the second one of the two zones to which the detector is assigned. The...

  • Page 49: Asd-100 Detector Configuration

    INTEGRA Programming 5.2.7 ASD-100 detector configuration The ASD-100 wireless smoke and heat detector takes up 1 zone in the system. The following items are remotely programmed for the detectors: • working mode of heat sensor – you can disable the sensor or select the detection class (A1, A2 or B), in conformity with the EN 54-5 standard.

  • Page 50: Asp-105 Siren Configuration

    SATEL INTEGRA Note: After starting the S or T as well as for 40 seconds after turning ERVICE MODE EST MODE power on, the signaling in the siren is blocked. This enables carrying out installation operations. Opening the tamper contact will not trigger loud signaling, but information on the tamper will be sent (when in service mode, the control panel does not signal tamper alarms).

  • Page 51: 230 V Ac Wireless Controllers

    INTEGRA Programming In LCD keypad, having started the C function, you should configure both zones ONFIGURATION to which the siren is assigned, i.e. the two signaling methods. After selection of the zone, the keys enable movement between the parameters being programmed: –...

  • Page 52: System Structure

    SATEL INTEGRA For the ASW-100 E or ASW-100 F controller, carefully select the F value, i.e. ILTER the number of response periods with no response, after which loss of communication with the ASW-100 controller will be reported. The 230 V sockets are installed at low position, hence the ASW-100 controllers mounted in them are exposed to the risk of being covered by personnel moving around the premises.

  • Page 53: Partitions

    INTEGRA Programming For other formats, the events are assigned to identifiers by the installer, according to the assignment of system components (zones, partition, users) to individual objects. Partitions The partition is a group of zones to supervise a selected part of the object, which are armed or disarmed at the same time.
  • Page 54 SATEL INTEGRA Disarming of this partition is only possible after expiry of the blockage time. To disarm the partition before the blockage time is up you have to use a code with ACCESS TO authority, or another code, if an alarm occurred in that TEMPORARY BLOCKED PARTITIONS partition.
  • Page 55 INTEGRA Programming Controlled by timer – the partition, which is armed in time periods determined by selected timers, and may also be controlled by the user code. When creating the partition, you should specify the ONTROLLED BY TIMER list of timers which set the periods when the partition is armed.
  • Page 56 SATEL INTEGRA 255 seconds can be programmed. The exit delay time can be reduced in the following cases: – violation of zones type: 85. Z – , 86. Z – F ONES UTPUTS CONDITIONAL ONES UTPUTS INAL or 89. F in the partition;...

  • Page 57: Zones

    • wireless – the INTEGRA 128-WRL control panel, as well as the control panels to which the ACU-100 controller is connected. The number of available wireless zones depends on the number of wireless devices registered in the system and is determined during the procedure of adding wireless devices.

  • Page 58: Parameters

    SATEL INTEGRA • numbers of the wireless zones supported by the mainboard of INTEGRA 128-WRL control panel are set during the procedure of adding wireless devices. Free and available numbers are assigned. Note: Numeration of wireless devices supported by the mainboard of INTEGRA 128-WRL control panel need not be continuous.
  • Page 59 – the zone supports a roller shutter detector (the configuration available for the zones on the electronics board of INTEGRA 128-WRL control panel, in CA-64 E expander with electronics version 2.1 or later and program version 2.0 or later, and in CA-64 EPS expander with electronics version 2.0 or later and program version 2.0 or...

  • Page 60: End Of Line Resistors

    The value of resistors used in EOL and 2EOL configurations is programmable within the range from 500 Ω to 15 kΩ for the zones on the INTEGRA 128-WRL control panel mainboard and in the zone expanders identified by the control panel as CA-64 Ei and CA-64 EPSi: •...

  • Page 61: Options

    LOAD "Hardware" tab, after indicating the mainboard or selected zone expander in the list. In the keypad, program the resistor value as follows: – for the INTEGRA 128-WRL control panel mainboard – use the EOL R1 and EOL RESISTOR functions (S...
  • Page 62 SATEL INTEGRA Clearing Autoreset – alarm counters for the zones for which the A 3 or RESET 1 option is enabled can be automatically reset at midnight (violations of these RESET zones will be able to trigger alarms again). Prealarm – zone with alarm verification.

  • Page 63: Zone Type

    INTEGRA Programming Always loud tamper alarm – if this option is on, tamper alarm is always loud (if option is off – tamper alarm is loud only when armed). Reporting delay – an option for the reaction types 4–7 and 64–79. During the entry delay time the information on alarm will not be sent to the monitoring station instantly, but delayed by maximum 30 seconds.
  • Page 64 SATEL INTEGRA the 9. DAY A , 12. S and 116. I type outputs. If the LARM ILENT ALARM NTERNAL IREN observation time is not programmed, the alarm will be generated upon the first violation. 9. 24 – permanently armed zone, intended for the tamper circuits. Violation AMPER of the zone is additionally signaled as a trouble.
  • Page 65 INTEGRA Programming 40. 24 IRE SUPERVISORY 41. 24 OW WATER PRESSURE 42. 24 43. 24 ATER GATE DETECTOR 44. 24 OW WATER LEVEL 45. 24 UMP ACTIVATED 46 24 UMP FAILURE 47. N – zone intended for activating the outputs (e.g. Z , READY O ALARM ACTION ONE VIOLATION...

  • Page 66: Zone Testing

    SATEL INTEGRA • B – the zones belonging to the group will remain bypassed as long as YPASS ON the bypassing zone is violated (they can also be unbypassed by using the I NHIBIT user function). 80. A – violation of the zone will arm the partition to which the zone belongs.

  • Page 67: Outputs

    The hardwired outputs are provided with LEDs indicating their current status. • wireless – the INTEGRA 128-WRL control panel and the panels to which the ACU-100 controller is connected. The number of available hardwired outputs depends on the number of wireless devices registered in the system and is determined during the procedure of adding wireless devices.

  • Page 68: Parameters

    SATEL INTEGRA 6.4.1 Parameters Output name – up to 16 characters. Output type (see the list of output types) Cut off time – refers to the outputs responding to events (alarm, video control outputs, etc.), for the status indicating outputs this time is irrelevant.

  • Page 69: Clearance Availability

    INTEGRA Programming Triggering from control outputs – indication of the outputs, activation of which will activate the output. Triggering from expansion modules – indication of the expanders which under specified circumstances will activate the output. Triggering by telephone line trouble – selection of the type of failure to be signaled at the output.
  • Page 70 SATEL INTEGRA 4. K – signals alarms (fire, panic, auxiliary) triggered from keypad. EYPAD ALARM 5. K – signals the fire alarms triggered from keypad. EYPAD FIRE ALARM 6. K – signals the loud panic alarms triggered from keypad. EYPAD PANIC ALARM 7.
  • Page 71 INTEGRA Programming 21. A – the output activated when at least one of the selected partitions is armed. RM STATUS 22. F – the output activated if all of the selected partitions are armed. ULL ARM STATUS 23. A – signals arming/disarming of one selected zone (1 signal 0.3 ISARM CKNOWLEDGE sec.
  • Page 72 SATEL INTEGRA 37. M – the output activated after successful completion ONITORING ACKNOWLEDGE of connection with the monitoring station. 38. S – signals activation of the service mode on one of the control ERVICE MODE INDICATOR panel LCD keypads. 39. V –...
  • Page 73 INTEGRA Programming Output 2, to which the siren is connected, is programmed as L AND type of OGICAL output, while outputs 1 and 62 are indicated as control outputs. As a result, output 2 will signal alarms and confirm arming/disarming of the partition, but only between the hours 16:00 and 8:00, outside this time period the output being inactive.
  • Page 74 – no dial tone – Monitoring Station 1 trouble – Monitoring Station 2 trouble Note: In case of the INTEGRA 128-WRL control panel, the name of the output type 96 is . The output can inform of the following troubles: TROUBLE –...
  • Page 75 INTEGRA Programming 103. L – – the output signals lack of communication with INK TROUBLE WIRELESS OUTPUT wireless devices assigned to the indicated outputs. 104. W – – the output signals some problems with power supply IRELESS DEVICE LOW BATTERY of wireless devices (low battery, discharged (storage) battery, or lack of external power supply).

  • Page 76: Output Groups

    SATEL INTEGRA 114. Z – the output activates after starting the zone test in the selected ONE TEST STATUS partitions. It can be used, e.g. to control operation of the LED in the detectors of GRAPHITE and SILVER types. 115. A –...

  • Page 77: Output Testing

    INTEGRA Programming Note: If the outputs are only assigned to one output group, starting the O UTPUTS CONTROL function will not be followed by displaying the list of output groups in the keypad, but immediately by the list of controllable outputs. The output status can be presented as per the zone state.
  • Page 78 SATEL INTEGRA maximum number of zone modules are connected. Options make it possible for each of the keypad zones to determine whether or not it will be used in the keypad. Auto-backlight – determines whether the automatic illumination of the keypad is to come on after the particular system event, i.e.
  • Page 79 INTEGRA Programming Alarms – the options determine if the following alarms can be called from the given LCD keypad: - FIRE – fire alarm triggered by holding down the key with symbol, - PANIC – panic alarm triggered by holding down the key with symbol, - AUX.
  • Page 80 SATEL INTEGRA Functions/reviews – options which make it possible to: program the access to key functions ("press and hold down" type) – for scrolling through system memory and status; define the characters to signal the status of zones and partitions in the viewing functions;...

  • Page 81: Codes And Users

    INTEGRA Programming Fig. 16. Handling proximity cards. 8. Codes and users The INTEGRA control panel distinguishes three code types, i.e. service, master user (administrator), and user codes. The service and master codes are stored in the EEPROM memory. The other users' codes are written to the RAM (they will be erased after removal of jumper from the MEMORY pins).

  • Page 82: Monitoring

    SATEL INTEGRA default programmed as 4 or 44, or 444 ... (the number of fours depends on the length of prefix). Using this prefix before the code results in the duress alarm code being sent to the monitoring station and activation of the DURESS ALARM output.
  • Page 83 The events can be sent to the monitoring station: • over the Ethernet (TCP/IP) network – if ETHM-1 module is connected, • using GPRS technology – INTEGRA 128-WRL control panel or if GSM/GPRS module is connected (e.g. GSM-4S or GSM LT-2S), •...
  • Page 84 • It is advisable to correctly indicate to how many stations the events are to be reported. • The SIA format can only be used for telephone monitoring. • GPRS monitoring can be performed by the INTEGRA 128-WRL control panel and by any other INTEGRA series control panel to which the GSM-4S module (firmware version 4.11 or later) or the GSM LT-2S module (firmware version 2.11 or later) is connected.
  • Page 85 INTEGRA Programming - partition. For formats other than Contact ID, only account number and event code are sent. Question marks will be sent instead of the other information. • When the „Contact ID (selected)" or „SIA (selected)” format is selected, the control panel will only transmit the events which can be transmitted in pulse formats.
  • Page 86 SATEL INTEGRA • For the S 2 operating mode (as well as for the S , with TATION TATION TATION ONLY both numbers entered), do not select the „Contact ID (full)” or „SIA (full)” format for one number, and different formats for the other numbers.

  • Page 87: Messaging

    All the INTEGRA series control panels can inform of events in the system by means of voice messages (connection of voice synthesizer is required) and PAGER type text messages. The INTEGRA 128-WRL control panel can additionally notify by means of SMS messages. The SATEL made GSM modules offer optional conversion of PAGER messages into SMS messages, thus enabling this form of messaging to be used also in case of the other INTEGRA control panels.
  • Page 88 SATEL INTEGRA 4. Program the data for at least one telephone to which the messages are to be sent: – name (up to 16 characters), – telephone number, – type of messaging (voice message, PAGER or SMS messages), – number of rounds – the number of attempts taken by the control panel to notify the indicated telephone number of the event, unless reception of the message has been acknowledged.

  • Page 89: Answering Phone Calls And Remote Control

    INTEGRA Programming 11. Answering phone calls and remote control The call answering function allows the control panel users to receive information on the partition status (arm mode, alarms). Owing to the telephone control function, the users can control the R type of outputs by means of a telephone.

  • Page 90: Only Integra 128-Wrl

    12. SMS control only INTEGRA 128-WRL The INTEGRA 128-WRL control panel makes the SMS message control function available to the users. Receiving by the control panel of a message containing the suitable command may result in zone violation, starting the selected function, or sending the return message with information on system status.

  • Page 91: Control Of Outputs From Lcd Keypad

    INTEGRA Programming programmed for them must be different from "Not used" or "Follow output". You can program any type of reaction. Note: When programming the control commands, remember that: • the command may include up to 16 characters, • the command may not contain diacritic characters and/or spaces, •...
  • Page 92 SATEL INTEGRA • enable the options W ARN WHILE ARMING IF TROUBLE IOLATED YPASSED ZONES PREVIEW WHEN ARMING O NOT ARM IF TAMPER O NOT ARM IF BATTERY TROUBLE O NOT ARM IF and D TROUBLE O NOT ARM IF OUTPUTS TROUBLE O NOT ARM IF REPORTING TROUBLE •...

  • Page 93: History Of The Manual Updates

    • Q LCD keypad parameter has been supplemented (p. 75). UICK ARM • Information on INTEGRA 128-WRL control panel has been included in the manual. 2008-06 1.06 • Because of substituting RJ type of socket for PIN-5 socket on the control panel electronics board, the drawing illustrating computer connection to control panel has been replaced (p.
  • Page 94 NSWERING PHONE CALLS AND REMOTE CONTROL supplemented (p. 87). • Section about controlling operation of INTEGRA 128-WRL control panel by means of SMS messages has been added (p. 88). • Section C has been modified (p. 89).
  • Page 95 SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.eu...
