AT530P User Manual

Config Manage

2.7
Save Config: save current settings.
Clear Config: restore to default settings.
Backup Config: Backup the config file, via point the right key of mouse-
as....- will pop a save window, then type the config file name in the File name(the file type is
text file)
Notice: clear config in admin mode, all settings restores to factory default; clear config in guest
modem, all settings except sip, advance sip restore to factory default.

Update

2.8

2.8.1 Web Update:

Update IP phone's settings or firmware. Firmware file is .z extension when configure file
is .cfg extension, AT530P will auto select configure update or firmware update according the
extension.

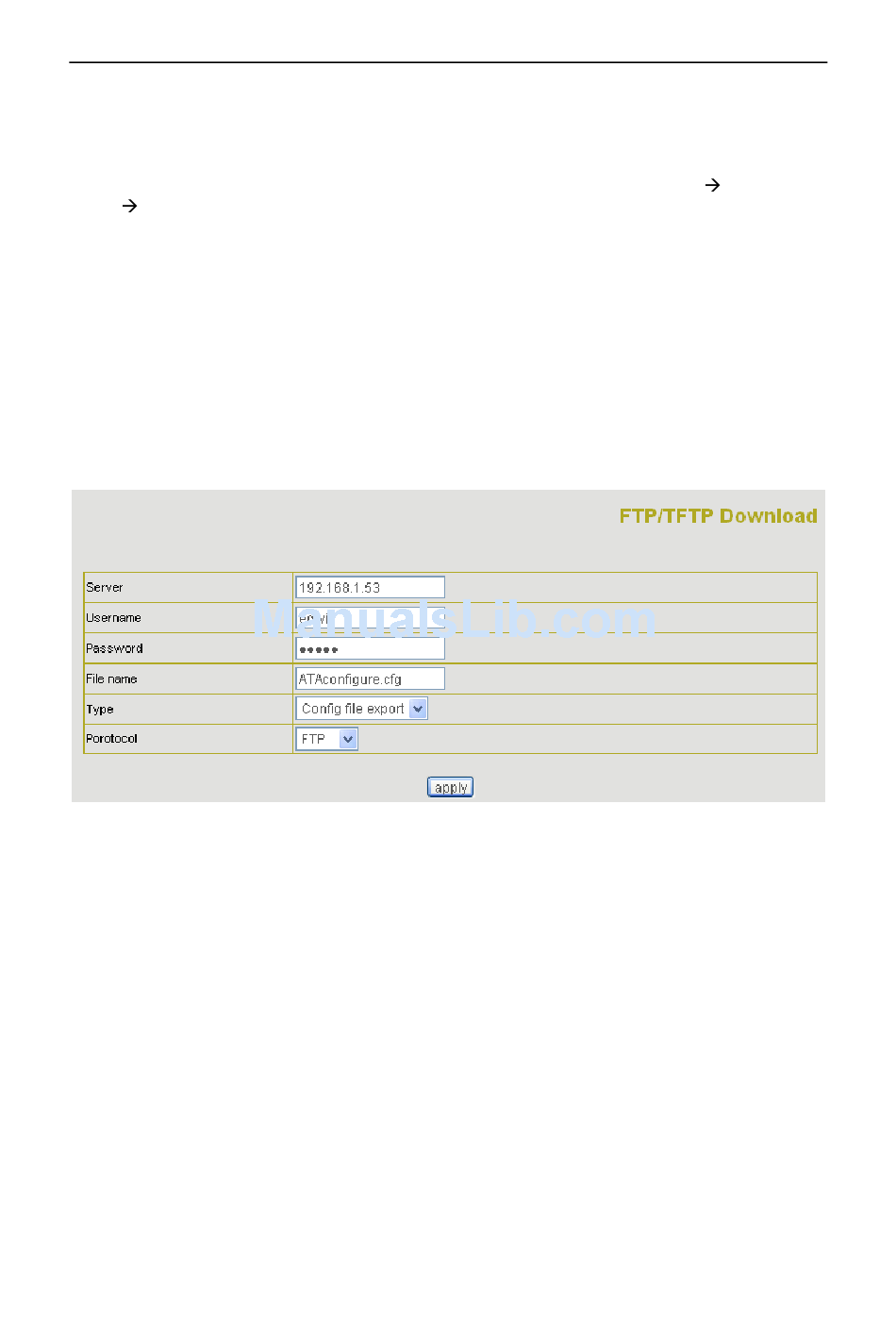

2.8.2 TFTP/FTP Update:

upload/download the configure file with FTP or TFTP server. or download firmware from FTP
or TFTP server
Back up configure file to your FTP/TFTP server.
configure use .cfg extension.
The Type includes two parts of config file export and config file import
Config file export:export the config file
Config file import:import the config file

2.8.3 Auto Provisioning:

AT530P IP phone support FTP and TFTP auto update. The gateway will auto obtain the
configure file from your update server if configured. To obtain the original configure file, you
can use the FTP/TFTP back up as describe above. Configure file using module structure,
user may remain the concerned modules and remove other modules. Put the configure file in
the root directory of update serve when finish editing.
save target
25/49
