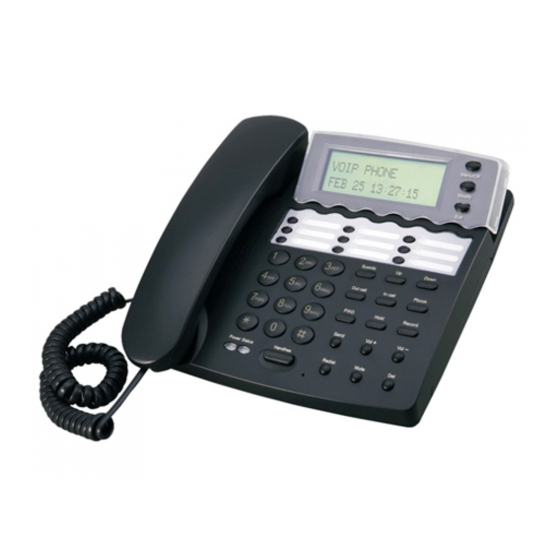

ATCOM AT530P Setup Manual
  1. Manuals
  2. Brands
  3. ATCOM Manuals
  4. IP Phone
  5. AT530P
  6. Setup manual

ATCOM AT530P Setup Manual

Elastix server
Hide thumbs Also See for AT530P:

Advertisement

Quick Links

Download this manual See also: User Manual
Atcom AT530P and Elastix Server
Atcom AT530P and Elastix Server
Atcom AT530P and Elastix Server
http://www.elastix.org
http://www.elastix.org
http://www.elastix.org
Setup Guide
Setup Guide
Setup Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the AT530P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATCOM AT530P

Summary of Contents for ATCOM AT530P

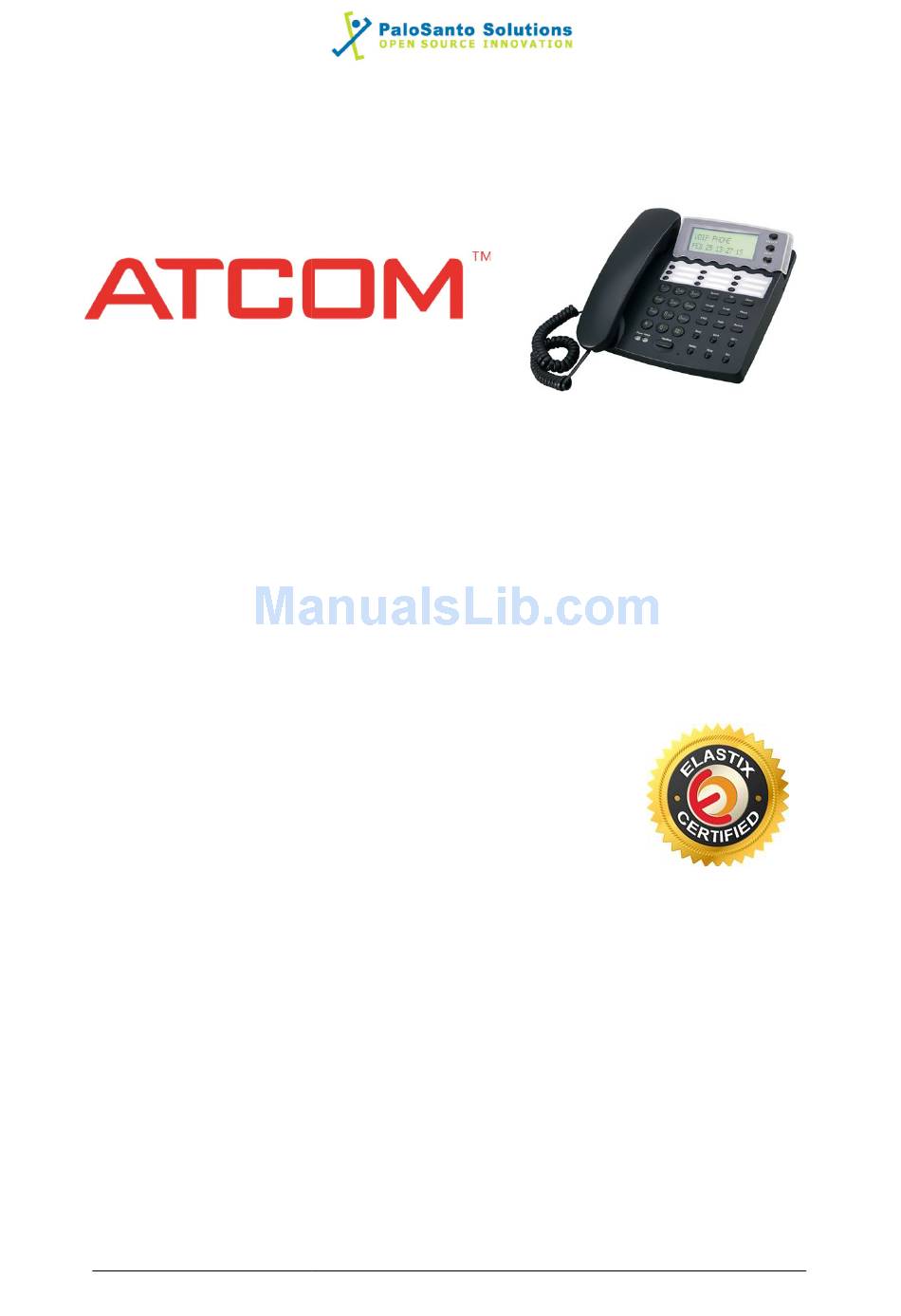

  • Page 1 Atcom AT530P and Elastix Server Atcom AT530P and Elastix Server Atcom AT530P and Elastix Server Setup Guide Setup Guide Setup Guide http://www.elastix.org http://www.elastix.org http://www.elastix.org...

  • Page 2: Setup Diagram

    Figure 1-1 Figure 1-1 is a setup diagram for a single IP Phone AT530P configuration. The phone is is a setup diagram for a single IP Phone AT530P configuration. The phone is is a setup diagram for a single IP Phone AT530P configuration. The phone is setup as a SIP telephony device.

  • Page 3: Setup Procedure

    4.0 Setup Procedure Atcom AT530P Server Setup Guide To set up the Elastix Server for the Atcom AT530P, 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.1.65 2.
  • Page 4 PaloSanto Solutions PaloSanto Solutions PaloSanto Solutions Atcom AT530P Server Setup Guide Atcom AT530P Server Setup Guide Atcom AT530P Server Setup Guide Figure 4-3. Add an Extension Figure 4-3. Add an Extension Figure 4-3. Add an Extension 6. On the Add SIP Extension page (Figure 4-4), fill in the following information: 6.
  • Page 5 9. With this you have just finished creating a SIP extension that will be used by the Atcom AT530P to register with the Elastix Server. Repeat Steps 5 through 8 to similarly Atcom AT530P to register with the Elastix Server. Repeat Steps 5 through 8 to similarly Atcom AT530P to register with the Elastix Server.
  • Page 6 PaloSanto Solutions Atcom AT530P Server Setup Guide Figure 4-7. Atcom AT530P WebUI To register the Atcom Phone we have two methods: Manual Configuration and AutoProvisioning using Elastix’s Endpoint Configurator.

  • Page 7: Manual Configuration

    Atcom AT530P Server Setup Guide MANUAL CONFIGURATION 1. Use the information from the Add SIP Extension page (Figure 4-4) to enter the following necessary information on “VoIP => SIP Config” section of the Atcom Phone WebUI:  Register Server Addr: Elastix Server’s IP Address (192.168.1.65 in this example) ...
  • Page 8 PaloSanto Solutions Atcom AT530P Server Setup Guide 4. To test the Atcom AT530P, pick up the previously configured IP (SIP) Phone and call the AT530P’s extension number (301 in this example). When the call is established, speak into the phone and verify that the other IP (SIP) Phone can hear your voice.
  • Page 9 PaloSanto Solutions PaloSanto Solutions PaloSanto Solutions Atcom AT530P Server Setup Guide Atcom AT530P Server Setup Guide Atcom AT530P Server Setup Guide AUTOPROVISIONING USING ELASTIX’S ENDPOINT AUTOPROVISIONING USING ELASTIX’S ENDPOINT AUTOPROVISIONING USING ELASTIX’S ENDPOINT CONFIGURATOR CONFIGURATOR CONFIGURATOR 1. In the Elastix WebUI go to “PBX => Endpoint Configurator” (Figure 4-10).
  • Page 10 5. Configure the other IP (SIP) Phone with the correct parameters. 6. To test the Atcom AT530P, pick up the previously configured IP (SIP) Phone and 6. To test the Atcom AT530P, pick up the previously configured IP (SIP) Phone and 6.
