set peer to peer call, please input destination IP address or domain name. If you
want to use this dial rule in SIP2 line, you need input 0.0.0.2 in it. If not config,
default sip1 as 0.0.0.0.
Port: Set the Signal port, the default is 5060 for SIP;
Alias: Set alias. This is optional config item. If you don't set Alias, it will show no
alias.
Note: There are four types of aliases.
1) add: xxx, it means that you need dial xxx in front of phone number, which will
reduce dialing number length.
2) all: xxx, it means that xxx will replace some phone number.
3) del: It means that phone will delete the number with length appointed.
4) Rep: It means that phone will replace the number with length and number
appointed. You can refer to the following examples of different alias application
to know more how to use different aliases and this dial rule.
Call Mode: Select difference signal protocol, SIP or IAX2;
Suffix: Set suffix, this is optional config item. It will show no suffix if you don't
set it;
Delete Length: Set delete length. This is optional config item. For example: if
the delete length is 3, the phone will delete the first 3 digits then send out the
rest digits. You can refer to examples of different alias application to know how
to set delete length;

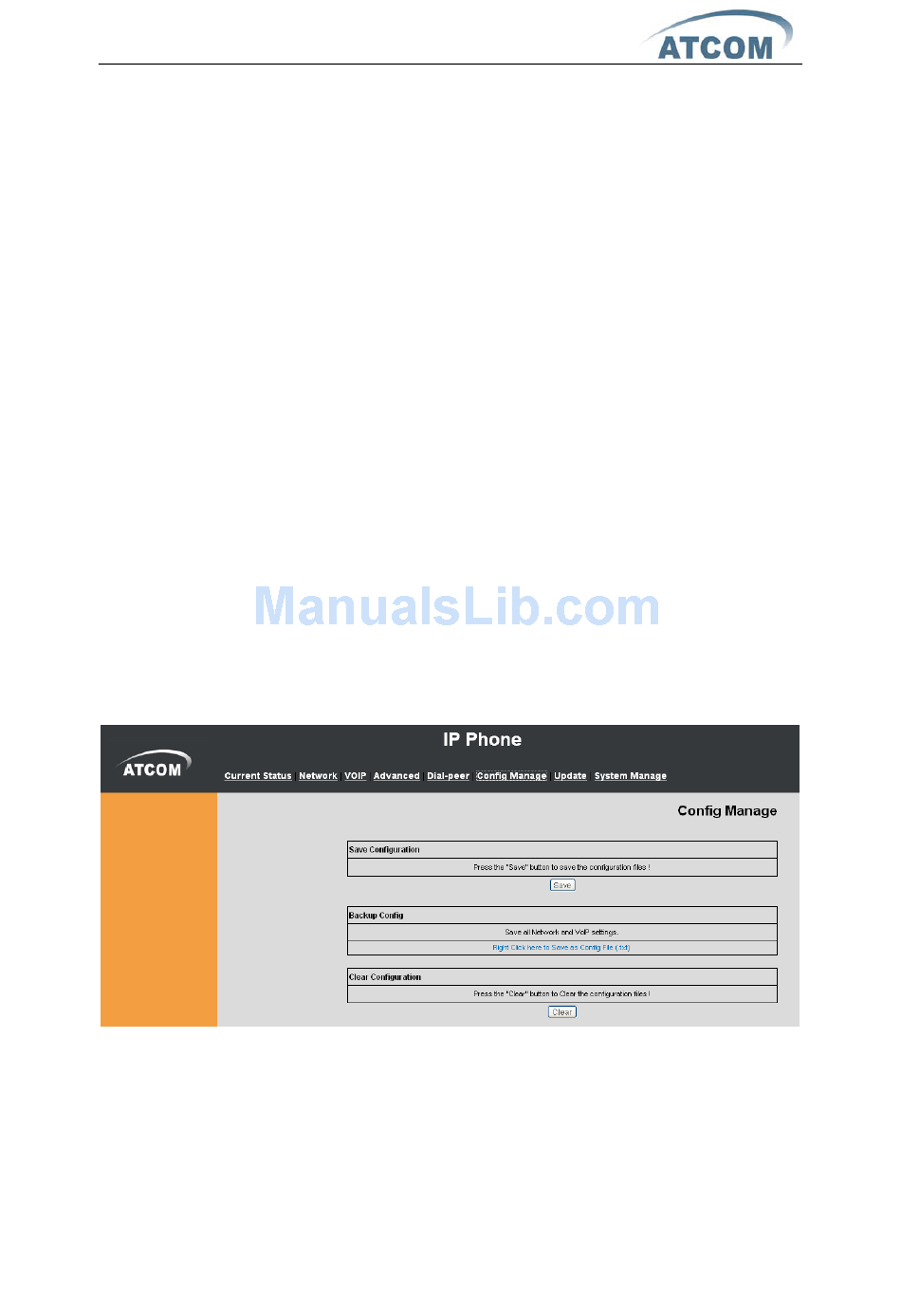

Config Manage

6、
Save Config: you can save all changes of configurations. Click the Save
button, all changes of configuration will be saved, and be effective immediately.
Backup Config: Right clicks on "Right click here..." and select "Save Target
As...." then you will save the config file in .txt format
Clear Config: user can restore factory default configuration and reboot the
phone. If you login as Admin, the phone will reset all configurations and restore
factory default; if you login as Guest, the phone will reset all configurations
except for VoIP accounts (SIP1、SIP2 and IAX2) and version number.
