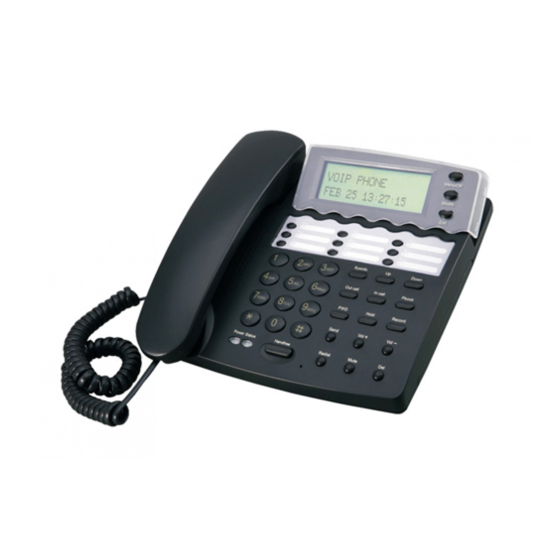

AT-530 User Manual
1
AT-530 Features ........................................................................................................ 3
1.1
Appearance ....................................................................................................................... 3
1.2
Interface ............................................................................................................................. 3
1.3
Electricity characteristic ................................................................................................... 3
1.4
Software............................................................................................................................. 3
1.5
Standard and Protocols ................................................................................................... 4
1.6
Compliant Standard.......................................................................................................... 4
1.7
Operating requirement..................................................................................................... 4
1.8
Package ............................................................................................................................. 4
1.9
Installation.......................................................................................................................... 5
2
Web Configuration .................................................................................................... 6
2.1
Access Web setting page................................................................................................ 6
2.2
Current state...................................................................................................................... 7
2.3
Network .............................................................................................................................. 8
Wan Config ...............................................................................................8
2.3.1
LAN Config.............................................................................................. 10
2.3.2
2.4
VoIP .................................................................................................................................. 11
2.4.1
SIP Config................................................................................................11
Iax2 Config............................................................................................... 12
2.4.2
2.5
Advance ........................................................................................................................... 13
DHCP Server .......................................................................................... 13
2.5.1
NAT......................................................................................................... 14
2.5.2
Net Service ............................................................................................. 15
2.5.3
Firewall settings ...................................................................................... 16
2.5.4
QoS settings ........................................................................................... 17
2.5.5
Advance SIP settings .............................................................................. 18
2.5.6
Call Service Settings ............................................................................... 21
2.5.7
MMI Filter ................................................................................................22
2.5.8
Audio Settings .........................................................................................23
2.5.9
2.6
Dial-Peer Settings .......................................................................................................... 24
2.7
Config Manage................................................................................................................ 25
2.8
Update.............................................................................................................................. 26
2.9
System Manage.............................................................................................................. 28
Account Manage .....................................................................................28
2.9.1
Phone Book: ...........................................................................................28
2.9.2
Syslog Config: .........................................................................................28
2.9.3
AT-530 User Manual
1/50
Advertisement
Table of Contents
Related Manuals for ATCOM AT-530
Summary of Contents for ATCOM AT-530
-
Page 1: Table Of Contents
AT-530 User Manual AT-530 User Manual AT-530 Features ......................3 Appearance ........................3 Interface ..........................3 Electricity characteristic ....................3 Software..........................3 Standard and Protocols ....................4 Compliant Standard......................4 Operating requirement..................... 4 Package ..........................4 Installation.......................... 5 Web Configuration ....................6 Access Web setting page.................... - Page 2 AT-530 User Manual 2.9.4 Time Set:....................29 Reboot: ....................29 2.9.5 Use keypad configure AT-530 IP phone .............. 30 Keypad function ......................30 Keypad Menu ........................31 Telnet Console ......................33 Introduce .......................... 33 Global Command......................34 Tree Structure ......................35 Network Diagnosis ....................44 Restore to factory default..................
-
Page 3: At-530 Features
AT-530 User Manual 1 AT-530 Features Appearance Interface Power: Output Power:12VDC,500mA. WAN: RJ45 port. LAN: RJ45 port. Electricity characteristic Speciality of electric: output the 12V 500mA DC The network connects:2 RJ45 connect, a WAN, a LAN Software Support two sip accounts at the same time. -
Page 4: Standard And Protocols
AT-530 User Manual G.168 compliant 32ms echo cancellation Tone generation and Local DTMF re-generation according with ITU-T E.164 dial plan and customized dial rules Hotline. Speed Dial Call Forward, Call Transfer, 3-way conference calls Record Caller ID display DND(Do Not Disturb),Black List,Limit List Upgrade firmware through FTP, TFTP or HTTP,. -
Page 5: Installation
AT-530 User Manual Installation Use ethernet cable to connect AT-530’s LAN port and your computer. Set your computer’s ip to the network 192.168.10.x or using dynamic obtain IP. Open your web browser and key in 192.168.10.1. Then you will see the logon page of AT-530, the default username and password is admin/admin for administrator and guest/guest for guest. -
Page 6: Web Configuration
2 Web Configuration 2.1 Access Web setting page Enter AT-530 IP address in the web browser and press ENTER to go to the log on page, and key in the username and password to access AT-530 setting page. Default username and password is:... -
Page 7: Current State
This page shows AT-530’s running state. Network shows the WAN and LAN port connecting state and current settings. VoIP part show the working state of VoIP, you can see whether AT-530 has registered the public sip server Phone Number public sip and private sip phone numbers. -
Page 8: Network
----Set local DNS server in the Preferred DNS and the Alternate DNS Configure to dynamic obtain IP ----Enable DHCP; If there is DHCP server in your local network, AT-530 will automatically obtain WAN port network information from your DHCP server. Configure PPPoE: ----Enable PPPoE ----PPPoE server: Enter “ANY”... - Page 9 AT-530 User Manual ----Enter PPPoE username and pin in the username and password. AT-530 will automatically obtain WAN port network information from your ITSP if PPPoE setting and the setup are correct. Notice: If user accesses the IP phone through WAN port. He/She should use the new IP address to access the IP phone when the WAN port address was changed.
-
Page 10: Lan Config
IP Netmask: Set the IP and Netmask for the LAN DHCP Server: Enable DHCP service in LAN port NAT: Enable NAT. Highest Priority of Voice Quality: Enable this option to guarantee voice quality. If there is high flux in the LAN port, AT-530 will limit the stream rate. 10/50... -
Page 11: Voip
Detect Interval Time: Co-work with the Auto Detect Server, if Auto Detect Server is enable, AT-530 will periodically detect if the SIP server is available according this setting. User Agent: Encrypt Key: The particular service system decrypts of the key , matching with the server Type usage, the key provide by the particular service system supplier, default is empty Server Type：The particular service system supplier carries out the sign and speeches to... -
Page 12: Iax2 Config
DTMF Mode: DTMF signal sending mode: support RFC2833, DTMF_RELAY (inband audio) and SIP info RFC Protocol Edition: Current AT-530 SIP version. Set to RFC 2543 if the gate need to communicate to devices (such as CISCO5300) using the SIP 1.0. Default is RFC 3261. Enable Register: Enable/Disable SIP register. -
Page 13: Advance
DHCP server lease time. Start IP: Start IP of lease table. End IP: End IP of lease table. Network device connecting to the AT-530 LAN port can dynamic obtain the IP in the range between start IP and end IP. Netmask: Netmask of lease table. -
Page 14: Nat
AT-530 User Manual 2.5.2 NAT Advance NAT setting. Maximum 10 items for TCP and UDP port mapping. IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG: Enable/Disable PPTP ALG; Transfer Type: Transfer type using port mapping. Inside IP: LAN device IP for port mapping. -
Page 15: Net Service
AT-530 User Manual 2.5.3 Net Service HTTP Port: configure HTTP transfer port, default is 80.User may change this port to enhance system’s security. When this port changed, please http://xxx.xxx.xxx.xxx:xxxx/ to reconnect. Telnet Port: configure telnet transfer port, default is 23. -
Page 16: Firewall Settings
Access list support two type limits: input_access limit or output_access limit. Each type support 10 items maximum. AT-530 firewall filter is base WAN port. So the source address or input destination address should be WAN port IP address. Configuration:... -
Page 17: Qos Settings
AT-530 User Manual 2.5.5 QoS settings AT-530 IP phone implement QoS based on 802.1p, The QoS is used to mark the network communication priority in the data link/MAC sub-layer. AT-530 will sorted the packets using the QoS and sends it to the destination. -
Page 18: Advance Sip Settings
AT-530 User Manual 2.5.6 Advance SIP settings This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting: STUN Server Addr: configure stun server address; STUN Server Port: configure stun server port default 3478 STUN Effect Time: stun detect NAT type circle, unit: minute. - Page 19 AT-530 User Manual For how to configure private sip server. Please refer to SIP_Config 19/50...
-
Page 20: Digital Map
AT-530 User Manual Digital Map Digit map is a set of rules to determine when the user has finished dialing. AG-188 support below digital map: Digital Map is based on some rules to judge when user end their dialing and send the number to the server. -
Page 21: Call Service Settings
Enable Three Way Call: Please refer to Value_add_service for detail. Enable Call Waiting: Enable/disable Call Waiting Accept Any Call: If this option is disable, AT-530 refuse the incoming call when the called number is different from AT-530’s phone number. No Answer Time: no answer call forward time setting. -
Page 22: Mmi Filter
AT-530 User Manual 2.5.8 MMI Filter MMI filter is used to make access limit to AT-530 IP phone. When MMI filter is enable. Only IP address within the start IP and end IP can access AT-530 IP phone. 22/50... -
Page 23: Audio Settings
AT-530 User Manual 2.5.9 Audio Settings CODEC: select the prefer CODEC; support ulaw, alaw,G729 and G7231 5.3/6.3 Signal Standard: Signal standard for different area. Input Volume: Handset in volume. Output Volume: Handset out volume. Handfree Volume: Hand free volume Handdown Time: hand down detect time. -
Page 24: Dial-Peer Settings
AT-530 User Manual Dial-Peer Settings Please refer to How to use dial rule for detail. 24/50... -
Page 25: Config Manage
AT-530 User Manual Config Manage Save Config: save current settings. Clear Config: restore to default settings. Backup Config: Backup the config file, via point the right key of mouse- save target as….- will pop a save window, then type the config file name in the File name(the file type is text file) Notice: clear config in admin mode, all settings restores to factory default;... -
Page 26: Update
Config file export:export the config file Config file import:import the config file Auto update: AT-530 IP phone support FTP and TFTP auto update. The gateway will auto obtain the configure file from your update server if configured. To obtain the original configure file, you can use the FTP/TFTP back up as describe above. - Page 27 AT-530 User Manual For instance: Gateway original version is: <<VOIP CONFIG FILE>>Version:1.0000 <GLOBLE CONFIG MODULE> ConfFile Version：6 User may edit the configure file version to: <<VOIP CONFIG FILE>>Version:1.0007 <GLOBLE CONFIG MODULE> ConfFile Version：7 27/50...
-
Page 28: System Manage
AT-530 User Manual 2.9 System Manage 2.9.1 Account Manage Set web access account or keypad password of AT-530. 2.9.2 Phone Book: User may set contacts in this page, and the contacts will be saved in the memory. Then using the Pbook, Vol+,Vol-,Menu/OK and Exit keys to choose your friend in the contacts and then press # to call out. -
Page 29: Time Set
AT-530 User Manual 2.9.4 Time Set: Server:type the ip address of time server Timezone:select correct time zone in list box Timeout: longest response time for SNTP Manual Timeset:The time setting Daylight:Daylight saving time 2.9.5 Reboot: Reboot IP phone, some setting needs to reboot to make it works. Please always save config before reboot, otherwise the setting will return to previous setting. -
Page 30: Use Keypad Configure At-530 Ip Phone
AT-530 User Manual 3 Use keypad configure AT-530 IP phone 3.1 Keypad function User can configure AT-530 through its keypad. List below is the keypad function Keypad Mode Function/Display Idle mode ---- show current time Sysinfo Idle mode circularly show phone number,wan ip, gateway info... -
Page 31: Keypad Menu
AT-530 User Manual 3.2 Keypad Menu User may use SET, Menu/ok, Exit, Vol+, Vol- to config AT-530 detail setting. Press Menu/ok to enter config mode, and the default password is 123. Below list the keypad menu of AT-530 AT-530 Keypad Menu... - Page 32 AT-530 User Manual Transfer IP Port Dial-Rule End With # Fixed Length Switch Length Reg Status Public Reg Private Reg Detect-server Dtmf-mode Interval-time Swap-server RFC-version Signal-Port Stun Switch Addr Port Expire Time Codec Handdown-time Dtmf-Volume Input-volume Output-Volume Other Setting Syslog...
-
Page 33: Telnet Console
User may use telnet command to access and manage IP phone. AT-530 adopts tree structure for telnet. Every node contains its sub-nodes or local command. User can type “help” or “?” whenever to see sub-nodes and all local command under current node. -
Page 34: Global Command
AT-530 User Manual 4.2 Global Command Global command is available under all nodes, AT-530 support following commands: Command Function Example chinese Set to Chinese UI #chinese clear Clear telnet screen #clear english Set to English UI #english exit Return to parent-node... -
Page 35: Tree Structure
AT-530 User Manual 5 Tree Structure 5.1.1 account path: <account># [stop]start Syslog ---syslog [no] start Configure Syslog server address and port ---syslog server –ip x.x.x.x _port xxx Example: #<config-account-syslog>#server –ip 202.112.20.10 Show syslog settings ---syslog show Show all account settings ---show 5.1.2 config... - Page 36 AT-530 User Manual Show current DHCP rules ---dhcpshow Show LAN port IP address ---ipshow Show NAT info ---natshow Change LAN port IP address ---ip –addr x.x.x.x –mask x.x.x.x Example:<config-interface-fastethernet-lan>#ip –addr 192.168.1.10 –mask 255.255.255.0 WAN interface settings path: <config-interface-fastethernet-wan># [disable]enable dhcp client...
- Page 37 AT-530 User Manual Show http access setting ---http-port Set telnet access port ---telnet-port xxx Show telnet access port ---telnet-port Set RTP initial port and quantity ---media-port –startport xxx –number xxxx Example:<config-netservice>#media-port –startport 10000 –number 200 Add route rule ---route –gateway x.x.x.x –addr x.x.x.x –mask x.x.x.x Example:Arcihfone<config-netservice>#route –gateway 202.112.10.1 –addr 202.112.210.1...
- Page 38 AT-530 User Manual Disable call forward ---no callforward [disable]enable call transfer ---[no]calltransfer [disable]enable call waiting ---[no]callwaiting Set prefer codec ---codec xxx Set DTMF gain ---dtmfvolume xxx Set black list ---in-limit xxx Show black list ---in-limit Set input volume ---input xxx...
- Page 39 AT-530 User Manual Set alter server info ---alter-server register –ip x.x.x.x _port xxx _user xxx _password xxx [disable]enable stun server ---stun [no]enable Set stun detecting interval time ---stun interval-time xxx Set stun server ip and port ---stun –ip x.x.x.x –port xxx...
- Page 40 AT-530 User Manual 5.1.3 Debug (Level 0~7) path: <debug># show debug setting ---show [disable]enable debug all modules ---[no] all xxx [disable]enable debug app module ---[no] app xxx [disable]enable debug cdr module ---[no] cdr xxx [disable]enable debug sip module ---[no] sip xxx...
- Page 41 AT-530 User Manual path: <show># show LAN status and DHCP server info Example:#<show># dhcp-server dial-rule path: <show># show digital-map info Example:#<show># dial-rule interface path: <show># show LAN info Example:#<show>#interface fastethernet lan show WAN info Example:#<show>#interface fastethernet wan path: <show># show arp table info Example:#<show>#ip arp...
- Page 42 AT-530 User Manual path: <show># show NAT information Example:#<show>#nat port path: <show># show caller-ID info Example:#<show>#port callerID show dsp info Example:#<show>#port dsp show hotline info Example:#<show>#port hotline show black list info Example:#<show>#port in-limit show outgoing limit info Example:#<show>#port out-limit show current phone number Example:#<show>#port number...
- Page 43 AT-530 User Manual version path: <show># show IP phone version Example:#<show># version 5.1.8 telnet and logout Usage: #telnet –target -port Login:xxx Password:xxx #logout 5.1.9 timesettings path: <time># ---manualset –year xxx –month xxx –day xxx –hour xxx –minute xxx –second xxx Example:<time>#manulset –year 2004 –month 10 –day 1 –hour 8 –minitute 30 –second 0...
-
Page 44: Network Diagnosis
AT-530 User Manual 6 Network Diagnosis There are some telnet commands for checking your network. Now Listing below for your information Command Function Example ping Check if the destination is accessible #ping www.google.com tracert Show network path info #tracert www.google.com... -
Page 45: Post Mode(Safe Mode)
How to enter safe mode? There will be a schedule bar in the AT-530 booting procedure, press # key within the first 5 seconds, then the phone will go to POST mode. It has a default ip 192.168.10.1 in POST mode. -
Page 46: Faq
9.1 How many servers may AT-530 register simultaneously? AT-530 is able to register two SIP servers simultaneously, and redundancy servers. User can configure the dial peer to route calls between these servers. Please refer “How to use the dial rule?” for detail. -
Page 47: How To Use Speed Dial Function
9.4 How to use speed dial function? There are 9 speed dial keys in the AT-530 panel, Usage: Set speed dial number: press the speed key and enter the speed dial number and then press Menu/OK key to save the setting. - Page 48 Unattended transfer: If A is the AT-530 user, and B calls and talking with A through VoIP. A can press FWD button to hold the call with B, and then enter C’s number. B will be transferred to C and can talk with C.
-
Page 49: How To Use The Record Function
Select “Enable Voice Record” to active answering machine, and config No Answer Time. If there is an incoming call and no one answer the call. After timeout, AT-530 will auto answer this call and ask the caller to leave message. -
Page 50: How To Use Set The Ip Type Via Keypad
AT-530 User Manual 9.8 How to use set the IP type via keypad? In the idle mode, user may us the keypad to set the IP type as the below procedure: Keep pressing the button 1 for changing to static mode.
