AT530P User Manual

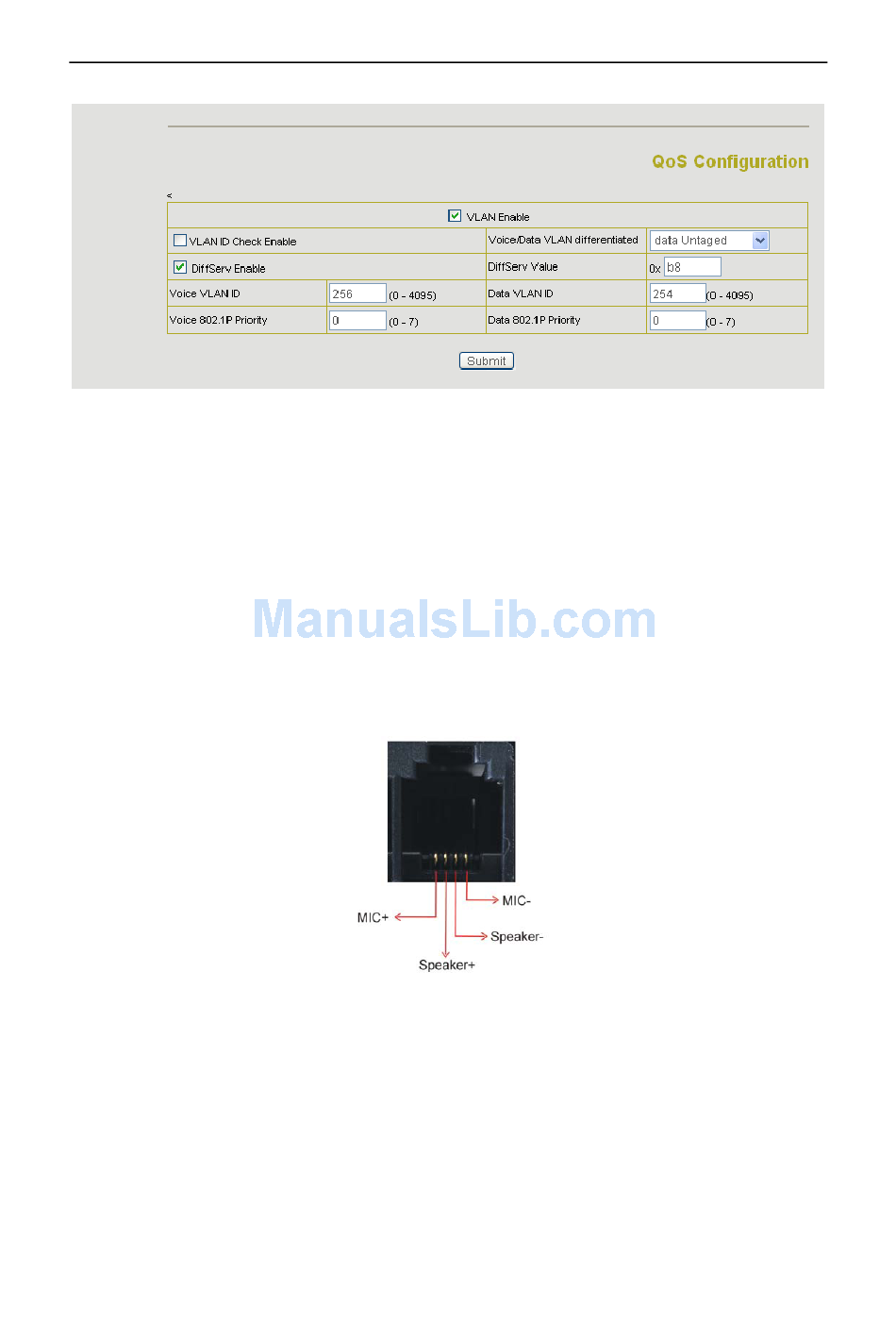

5. if VLAN is disable. Device won't add any vlan ID to the stream. In this case, if the
Diffserv is enable, the DiffServ value response to the voice/signaling stream.
6. When VLAN function is enable. If "VLAN ID check" is enable, AT530P will have
strict requirement on the VLAN, it won't handle any packets with different VLAN ID. If
"VLAN ID check" is disable, AT530P will handle the packets even from different vlan ID.
Please notice that VLAN ID check is enable in default.

9.1.10 How to connect RJ9 headset to AT-530P

The AT-530 slot is compatible with the normal RJ9 headset. To connect a RJ9 headset,
you have to remove pull out the original handset and connect the RJ9 headset to the same
slot. Pin order for RJ9 headset.
To make sure you can use the "Speaker" button to answer and hungup call in the headset
mode. You need to go to "Audio Setting Page" and select "disable the hands free".
49/49
