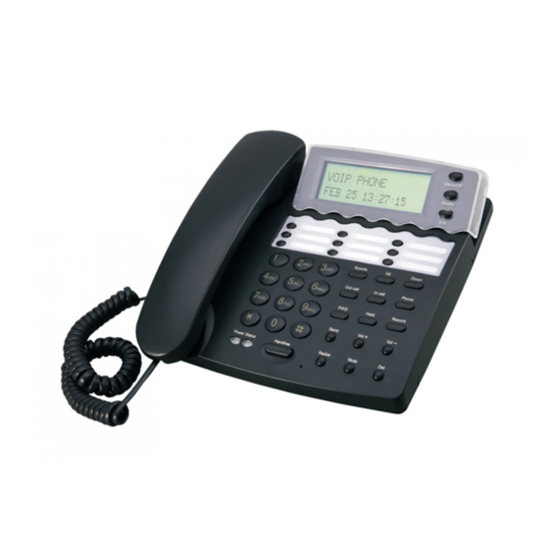

ATCOM AT530P User Manual

Atcom at530p voip phone user manual
Hide thumbs Also See for AT530P:
Table of Contents

Advertisement

Quick Links

See also: Setup Manual
AT530P User Manual
AT530P User Manual
1/49

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT530P and is the answer not in the manual?

Questions and answers

Related Manuals for ATCOM AT530P

Summary of Contents for ATCOM AT530P

  • Page 1 AT530P User Manual AT530P User Manual 1/49...

  • Page 2: Table Of Contents

    Phone Book: ................... 27  2.9.2  Syslog Config: ..................27  2.9.3  Time Set: ....................28  2.9.4  Reboot: ....................28  2.9.5  Use keypad configure AT530P IP phone ............. 29     3.1  Keypad function ......................29  Keypad Menu ........................30  3.2  Telnet Console ......................32  ...
  • Page 3 POST Mode(safe mode) ..................42     FAQ..........................43     How many servers may AT530P register simultaneously? ....... 43  9.1.1  Why the settings vanish after reboot? ............43  9.1.2  How to use the dial rule? ................. 43  9.1.3  How to use speed dial function? .............. 44 ...

  • Page 4: At530P Features

    AT530P User Manual 1 AT530P Features Appearance Interface Power: Output Power:12VDC,500mA. WAN: RJ45 port. LAN: RJ45 port. Electricity characteristic Speciality of electric: output the 12V 500mA DC The network connects:2 RJ45 connect, a WAN, a LAN Support POE function Software Support two sip accounts at the same time.

  • Page 5: Standard And Protocols

    AT530P User Manual VAD,CNG. G.168 compliant 32ms echo cancellation Tone generation and Local DTMF re-generation according with ITU-T E.164 dial plan and customized dial rules Hotline. Speed Dial Call Forward, Call Transfer, 3-way conference calls Record Caller ID display DND(Do Not Disturb),Black List,Limit List Upgrade firmware through FTP, TFTP or HTTP,.

  • Page 6: Package

    2 Web Configuration Access Web setting page Enter AT530P IP address in the web browser and press ENTER to go to the log on page, and key in the username and password to access AT530P setting page. Default username and password is:...

  • Page 7: Current State

    Current state This page shows AT530P’s running state. Network shows the WAN and LAN port connecting state and current settings. VoIP part show the working state of VoIP, you can see whether AT530P has registered the public sip server 7/49...

  • Page 8: Network

    ----Auto DNS：DNS select it to get the DNS address automatically Configure to dynamic obtain IP ----Enable DHCP; If there is DHCP server in your local network, AT530P will automatically obtain WAN port network information from your DHCP server. Configure PPPoE: ----Enable PPPoE ----PPPoE server: Enter “ANY”...

  • Page 9: Lan Config

    AT530P User Manual setting and the setup are correct. Notice: If user accesses the IP phone through WAN port. He/She should use the new IP address to access the IP phone when the WAN port address was changed. 2.3.2 LAN Config Bridge Mode: Enable this option to switch to bridge mode.

  • Page 10: Voip Sip Config

    Detect Interval Time: Co-work with the Auto Detect Server, if Auto Detect Server is enable, AT530P will periodically detect if the SIP server is available according this setting. User Agent: Encrypt Key: The particular service system decrypts of the key , matching with the server...
  • Page 11 DTMF Mode: DTMF signal sending mode: support RFC2833, DTMF_RELAY (inband audio) and SIP info RFC Protocol Edition: Current AT530P SIP version. Set to RFC 2543 if the gate need to communicate to devices (such as CISCO5300) using the SIP 1.0. Default is RFC 3261. Enable Register: Enable/Disable SIP register.

  • Page 12: Advance

    DHCP server lease time. Start IP: Start IP of lease table. End IP: End IP of lease table. Network device connecting to the AT530P LAN port can dynamic obtain the IP in the range between start IP and end IP. Netmask: Netmask of lease table.

  • Page 13: Nat

    AT530P User Manual 2.5.2 NAT Advance NAT setting. Maximum 10 items for TCP and UDP port mapping. IPSec ALG: Enable/Disable IPSec ALG; FTP ALG: Enable/Disable FTP ALG; PPTP ALG: Enable/Disable PPTP ALG; Transfer Type: Transfer type using port mapping. Inside IP: LAN device IP for port mapping.

  • Page 14: Net Service

    AT530P User Manual 2.5.3 Net Service HTTP Port: configure HTTP transfer port, default is 80.User may change this port to enhance system’s security. When this port changed, please http://xxx.xxx.xxx.xxx:xxxx/ to reconnect. Telnet Port: configure telnet transfer port, default is 23.

  • Page 15: Firewall Settings

    Access list support two type limits: input_access limit or output_access limit. Each type support 10 items maximum. AT530P firewall filter is base WAN port. So the source address or input destination address should be WAN port IP address. Configuration:...

  • Page 16: Qos Settings

    AT530P User Manual 2.5.5 QoS settings AT530P IP phone implement QoS based on 802.1p, The QoS is used to mark the network communication priority in the data link/MAC sub-layer. AT530P will sorted the packets using the QoS and sends it to the destination.

  • Page 17: Advance Sip Settings

    AT530P User Manual 2.5.6 Advance SIP settings This page is used to set the private sip server, stun server, and back up sip server information. STUN Server setting: STUN Server Addr: configure stun server address; STUN Server Port: configure stun server port default 3478 STUN Effect Time: stun detect NAT type circle, unit: minute.

  • Page 18: Digital Map

    AT530P support below digital map: Digital Map is based on some rules to judge when user end their dialing and send the number to the server. AT530P support following digital map: ----End With “#”: Use # as the end of dialing.
  • Page 19 AT530P User Manual 99xT4 3 digits numbers begin with 99 with be sent after four seconds. 19/49...

  • Page 20: Call Service Settings

    Enable Three Way Call: Please refer to Value_add_service for detail. Enable Call Waiting: Enable/disable Call Waiting Accept Any Call: If this option is disable, AT530P refuse the incoming call when the called number is different from AT530P’s phone number. No Answer Time: no answer call forward time setting.
  • Page 21 AT530P User Manual server. Remote Record No: Config the recording number , if you upload your recording to this account , you can login this account to get your voice recording Black List: incoming call in these phone numbers will be refused.

  • Page 22: Mmi Filter

    AT530P User Manual 2.5.9 MMI Filter MMI filter is used to make access limit to AT530P IP phone. When MMI filter is enable. Only IP address within the start IP and end IP can access AT530P IP phone. 2.5.10 Audio Settings CODEC: select the prefer CODEC;...

  • Page 23: Vpn

    AT530P User Manual 2.5.11 this page is VPN setting page , the IP phone support the VPN with UDP and L2TP protocol .The parameters is as below VPN IP： After VPN registered successfully, VPN server will give an IP aggress to the terminal .

  • Page 24: Memory Key

    AT530P User Manual 2.5.12 Memory Key the configuration of 9 speed call buttons Dial-Peer Please refer to How to use dial rule for detail. 24/49...

  • Page 25: Config Manage

    Config file import:import the config file 2.8.3 Auto Provisioning: AT530P IP phone support FTP and TFTP auto update. The gateway will auto obtain the configure file from your update server if configured. To obtain the original configure file, you can use the FTP/TFTP back up as describe above. Configure file using module structure, user may remain the concerned modules and remove other modules.
  • Page 26 AT530P User Manual Current Version: the system will display the current version number 。 Server Address: FTP/TFTP server address Username: FTP server user name Password: FTP server password Config File Name: The name of configuration file Config Encrypt Key: The encrypt key of confirmation file Protocol Type: The protocol type that used for upgrading Update Interval Time: The interval time that the terminals search for new configuration file.

  • Page 27: System Manage

    AT530P User Manual System Manage 2.9.1 Account Manage Set web access account or keypad password of AT530P. 2.9.2 Phone Book: User may set contacts in this page, and the contacts will be saved in the memory. Then using the Pbook, Vol+,Vol-,Menu/OK and Exit keys to choose your friend in the contacts and then press # to call out.

  • Page 28: Time Set

    AT530P User Manual Please click “apply” after setting 2.9.4 Time Set: Server:type the ip address of time server Timezone:select correct time zone in list box Timeout: longest response time for SNTP Manual Timeset:The time setting Daylight:Daylight saving time 2.9.5 Reboot: Reboot IP phone, some setting needs to reboot to make it works.

  • Page 29: Use Keypad Configure At530P Ip Phone

    AT530P User Manual 3 Use keypad configure AT530P IP phone Keypad function User can configure AT530P through its keypad. List below is the keypad function Keypad Mode Function/Display Idle mode ---- show current time Sysinfo Idle mode circularly show phone number,wan ip, gateway info...

  • Page 30: Keypad Menu

    AT530P User Manual Keypad Menu User may use SET, Menu/ok, Exit, Vol+, Vol- to config AT530P detail setting. Press Menu/ok to enter config mode, and the default password is 123. Below list the keypad menu of AT530P AT530P Keypad Menu...
  • Page 31 AT530P User Manual Call-Transfer Call-Waiting Call-Forward Condition Transfer Num Transfer IP Port Dial-Rule End With # Fixed Length Switch Length Reg Status Public Reg Private Reg Detect-server Dtmf-mode Interval-time Swap-server RFC-version Signal-Port Stun Switch Addr Port Expire Time Codec Handdown-time...

  • Page 32: Telnet Console

    User may use telnet command to access and manage IP phone. AT530P adopts tree structure for telnet. Every node contains its sub-nodes or local command. User can type “help” or “?” whenever to see sub-nodes and all local command under current node.

  • Page 33: Global Command

    AT530P User Manual Global Command Global command is available under all nodes, AT530P support following commands: Command Function Example chinese Set to Chinese UI #chinese clear Clear telnet screen #clear english Set to English UI #english exit Return to parent-node...

  • Page 34: Tree Structure

    AT530P User Manual 5 Tree Structure 5.1.1 account path: <account># [stop]start Syslog ---syslog [no] start Configure Syslog server address and port ---syslog server –ip x.x.x.x _port xxx Example: #<config-account-syslog>#server –ip 202.112.20.10 Show syslog settings ---syslog show Show all account settings ---show 5.1.2 config...
  • Page 35 AT530P User Manual Show current DHCP rules ---dhcpshow Show LAN port IP address ---ipshow Show NAT info ---natshow Change LAN port IP address ---ip –addr x.x.x.x –mask x.x.x.x Example:<config-interface-fastethernet-lan>#ip –addr 192.168.1.10 –mask 255.255.255.0 WAN interface settings path: <config-interface-fastethernet-wan># [disable]enable dhcp client...
  • Page 36 AT530P User Manual Show route info ---route Show netservice info ---show Dial-peer settings path: <config-pbook># [disable]enable calling through GK and proxy ---[no]enableGKandProxy Add number-IP bond entry ---entry –number xxx –ip x.x.x.x –protocol xxx Example:<config-pbook>#entry –number 100 –ip 202.112.20.100 –protocol sip Add number-IP bond and add prefix to the dial number ---entry –number xxx –ip x.x.x.x –protocol xxx _add xxx...
  • Page 37 AT530P User Manual PPPoE settings path: <config-pppoe># PPPoE account settings ---auth –user xxx -password xxx Example:<config-pppoe>#auth –user aaa –password 123456 [disable]enable service settings ---[no]service xxx Show pppoe settings ---show QOS settings path: <config-qos># [delete]add QoS table entry --- [no]entry –addr x.x.x.x –mask x.x.x.x Example:<config-qos>#entry –addr 202.112.10.1 –mask 255.255.255.0...
  • Page 38 5.1.4 download configure to flash usage: #download tftp –ip x.x.x.x –file xxx #download ftp –user xxx –password xxx –ip x.x.x.x –file xxx Example: #download ftp –user abc –password 123 –ip 202.112.20.15 –file AT530P.cfg 5.1.5 password usage: #password Enter new password:xxx Confirm new password:xxx 5.1.6 reload...
  • Page 39 AT530P User Manual Example:#<show>#interface fastethernet lan show WAN info Example:#<show>#interface fastethernet wan path: <show># show arp table info Example:#<show>#ip arp Show DNS server info Example:#<show>#ip dns Show netstate info Example:#<show>#ip netstat Show route info Example:#<show>#ip route Show icmp packets Stat.

  • Page 40: Network Diagnosis

    # update ftp –user xxx –password xxx –ip x.x.x.x –file xxx # update tftp –ip x.x.x.x –file xxx Example:# update ftp –user abc –password 123 –ip 202.112.20.15 –file AT530P.dlf 5.1.12 upload configure file usage: # upload ftp –user xxx –password xxx –ip x.x.x.x –file xxx # upload tftp –ip x.x.x.x –file xxx...

  • Page 41: Restore To Factory Default

    AT530P User Manual Command Function Example ping Check if the destination is accessible #ping www.google.com tracert Show network path info #tracert www.google.com show basic Show network settings #show basic show ip route Show route table #show ip route show ip arp...

  • Page 42: Post Mode(Safe Mode)

    How to enter safe mode? There will be a schedule bar in the AT530P booting procedure, press # key within the first 5 seconds, then the phone will go to POST mode. It has a default ip 192.168.10.1 in POST mode.

  • Page 43: Faq

    9.1.1 How many servers may AT530P register simultaneously? AT530P is able to register two SIP servers simultaneously, and redundancy servers. User can configure the dial peer to route calls between these servers. Please refer “How to use the dial rule?” for detail.

  • Page 44: How To Use Speed Dial Function

    9.1.4 How to use speed dial function? There are 9 speed dial keys in the AT530P panel, Usage: Set speed dial number: press the speed key and enter the speed dial number and then press Menu/OK key to save the setting.

  • Page 45: How To Use The Record Function

    Unattended transfer: If A is the AT530P user, and B calls and talking with A through VoIP. A can press FWD button to hold the call with B, and then enter C’s number. B will be transferred to C and can talk with C.

  • Page 46: How To Use Set The Ip Type Via Keypad

    AT530P User Manual Notice: AT530P supports three message maximum, each message can be 90 seconds. Answering will be deactivated if the message numbers is 3. Record local message: User may use local message to leave message to other local users.
  • Page 47 AT530P User Manual 2. if “Data/Voice VLAN differentiated” is Tag differentiated but the DiffServ is disable. Device won’t distinguish the voice, signaling and data stream. It will add the same data vlan id to them. As below: 47/49...
  • Page 48 AT530P User Manual 3. if “Data/Voice VLAN differentiated” is Tag differentiated and diffServ are both enable. Then device will distinguish the voice, signaling and data stream to VLAN ID setting. As below: 4.if “Data/Voice VLAN differentiated” is Date untaged and diffServ are both enable.

  • Page 49: How To Connect Rj9 Headset To At-530P

    Diffserv is enable, the DiffServ value response to the voice/signaling stream. 6. When VLAN function is enable. If “VLAN ID check” is enable, AT530P will have strict requirement on the VLAN, it won’t handle any packets with different VLAN ID. If “VLAN ID check”...
