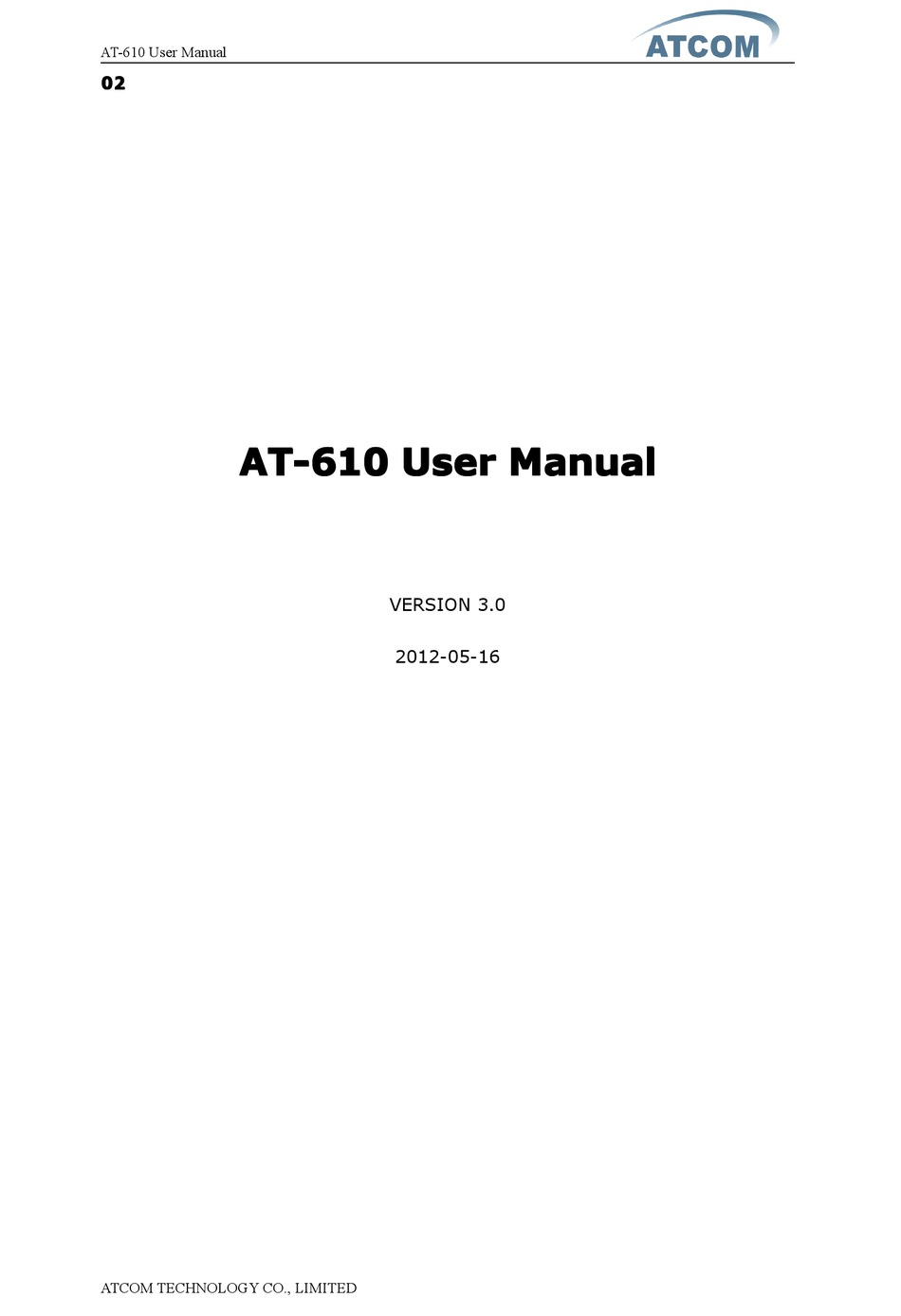

AT-610 User Manual
02
02
02
02
AT-610
AT-610 U U U U ser
AT-610
AT-610
ATCOM TECHNOLOGY CO., LIMITED
ser
ser M M M M anual
ser
anual
anual
anual
VERSION 3.0
2012-05-16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-610 and is the answer not in the manual?

Questions and answers

Related Manuals for ATCOM AT-610

Summary of Contents for ATCOM AT-610

  • Page 1 AT-610 User Manual AT-610 AT-610 AT-610 U U U U ser ser M M M M anual anual anual AT-610 anual VERSION 3.0 2012-05-16 ATCOM TECHNOLOGY CO., LIMITED...

  • Page 2: Table Of Contents

    AT-610 User Manual 1st、 AT-610’s Network Features ..................4 1、 The View ........................4 2、 Interfaces ........................4 3、 Electricity characteristic ..................4 4、 Software ........................4 5、 Network ......................... 5 6、 Management and Maintenance ................5 7、 Protocol .......................... 6 8、...
  • Page 3 AT-610 User Manual 7、 Update ......................... 35 7.1. Web Update ...................... 35 7.2. FTP/TFTP Update .................... 36 7.3. Auto Provisioning .................... 37 8、 System Manage ......................38 8.1. Account Manage ....................38 8.2. Phone Book ....................... 39 8.3. Syslog Config ....................39 8.4.

  • Page 4: 1St、 At-610'S Network Features

    AT-610 User Manual 1st、 AT-610 AT-610 AT-610 AT-610’ ’ ’ ’ s s s s N N N N etwork etwork etwork etwork F F F F eatures eatures eatures eatures 1 1 1 1 、 The V V V V iew 2 2 2 2 、...

  • Page 5: Network

    AT-610 User Manual � Jitter Buffer(200ms),VAD,CNG � G.711A/u, G722, G.723, G.726-32, G.729 Codec � G.168 compliant 96ms echo cancellation � Support SIP domain，SIP authentication(none，basic,MD5). � Support inbound audio, RFC2833 and SIP info , DTMF transmission way � SIP Call Forward、Call transfer、Call hold、Call waiting, 3-way talking、...

  • Page 6: Protocol

    AT-610 User Manual 7 7 7 7 、 Protocol Protocol Protocol Protocol � IEEE 802.3 /802.3 u 10 Base T / 100Base TX � PPPoE：PPP over Ethernet � SIP RFC3261, RFC 2543 � TCP/IP: Transfer Control Protocol/Internet Protocol � RTP: Real-time Transport Protocol �...

  • Page 7: Installation

    "Info" button on AT610 keypad several times,user can see the Gateway,Phone number(NULL) and IP address. Open web browser and key in the ip address, user will see the logon page of AT-610, the default username and password is admin/admin for administrator and guest/guest for guest.
  • Page 8 AT-610 User Manual B、Press the other plate into the slot in accordance with the direction of the arrow. C、Repeat A and B. It is the right picture of putting on desk after fixing the two feet below: D、 Disassemble the feet: Press the plate with word “PUSH”...
  • Page 9 AT-610 User Manual B、Push the other plate into the slot in accordance with the direction of the arrow. C、Repeat A and B. It is the picture of wall mounting after fixing the two feet below: Attention: Please rotate the hook to the position as in picture with a coin or other tools D、...

  • Page 10: 3Rd、 Keypad Of Ip Phone

    AT-610 User Manual 3rd、 Keypad Keypad Keypad Keypad of of IP IP Phone Phone Phone Phone Sketch Map of Phone Description: Number Function description Network status indicator A、 when the network is OK , it’s on B、when the network can not connect , it blinks 3、5、7...
  • Page 11 AT-610 User Manual C、Number 7 stands for PPPoE, when the IP phone get IP address in PPPoE mode . the indicator is on , or else it blinks 2、4、6 Answering mode indicator , A、Number 2 stands for answering call with handset B、Number 4 stands for answering call in hand-free mode...

  • Page 12: 4Th、 Menu Operation

    AT-610 User Manual menu conference key , when you want to realize conference call , press CONF key and key in the third party number Transfer key Press Hold to hold the call when you are talking Press mute , you can hear the voice from the other end but he can not hear you speaking.

  • Page 13: 5Th、 Basic Functions And Operations

    AT-610 User Manual 0 OFF NUMBER PASSWORD ACCOUNT SYSTEM TIME SET SET DEFAULT REBOOT INPUT VOLUME RING VOLUME RING TYPE OUTPUT VOLUME Basic functions operations 5th、 Basic Basic Basic functions functions functions and and operations operations operations 1 1 1 1 、...

  • Page 14: Make Call

    AT-610 User Manual phone, juts pick up the handset without press any buttons. 2 2 2 2 、 Make Make Make C C C C all Make A、Use the handset Pick up the handset, the LCD will show the current lines. User can input the number with the keyboard and press # to send the number.

  • Page 15: 5、 3-Way Conference Call

    History History AT-610 supports 100 missed calls, incoming calls and dialed calls record. When the storage is full, the latest call will update the history. When the phone reboots or be out of power, all the call history will be cleared.

  • Page 16: Call Pickup

    AT-610 User Manual 3) Press “Vol+” or “Vol-“browse out coming call records. 4) Choose the received call record, press “Redial” button to call this number. If there is no record, the LCD screen display “List is Empty”. 8 8 8 8 、...

  • Page 17: 11、 Vport

    AT-610 User Manual anymore. *3* is the predecessor. Then A could make the redial function via dialing *3* + number of B. *4* is the predecessor. Then A could make the redial function via dialing *4* + number of B.

  • Page 18: Preload Password

    AT-610 User Manual 12 12 12 12、 Click Click Click Click to to dial dial dial dial When User A accesses web interface and calls User B via clicking one link which is direct to B, IP Phone of User A would ring. Then call B automatically once User A picking up handset.

  • Page 19: Current State

    6th、 Web settings settings settings settings Enter AT-610 IP addresses in the web browser to go to the log on page, and key in the username and password to access AT-610 setting page. Default username and password is: Administrator: Administrator:...
  • Page 20 AT-610 User Manual Parameters Parameters Parameters Parameters： � Active IP： IP phone’s address � Current Net mask：network net mask � MAC Address：MAC of IP phone � Current Gateway：the IP address of the router B、If your ISP provide you with the fixed IP address, please choose static and fill in the correct information of IP Address、...
  • Page 21 AT-610 User Manual � DNS Domain: input DNS domain name if it’s provided � Primary DNS: Primary DNS address � Alter DNS: Alternative DNS address C、when you use PPPoE to get IP address，please select “PPPoE”，and input ADSL account information as below picture：...

  • Page 22: Voip

    AT-610 User Manual 3 3 3 3 、 VoIP VoIP VoIP VoIP � Register Status: SIP server registration status, if succeed display Registered，or else display Unregistered. � Server Address: SIP server address, support both IP address and domain name. �...
  • Page 23 � Register Expire Time: register expire time, default is 600 seconds. AT-610 will auto configure this expire time to the server recommended setting if it is different from the SIP server. � Auto Detect Server Interval: Set examining interval of the server, default is 60 seconds.
  • Page 24 AT-610 User Manual default config. � Long Contact: Set more parameters in contact field. � Click to Talk: Set click to Talk (need practical software support). � Ban Anonymous Call: Set to ban Anonymous Call. � Dial without Register: Set call out by proxy without registration.

  • Page 25: Advance

    AT-610 User Manual � Media Key: voice stream encryption Key. 4 4 4 4 、 Advance Advance Advance Advance 4.1. 4.1. 4.1. 4.1. � Register Status: SIP server registration status, if succeed display Registered，or else display Unregistered. � Server Address: SIP server address, support both IP address and domain name.
  • Page 26 � Register Expire Time: register expire time, default is 600 seconds. AT-610 will auto configure this expire time to the server recommended setting if it is different from the SIP server. � Auto Detect Server Interval: Set examining interval of the server, default is 60 seconds.
  • Page 27 AT-610 User Manual � Enable PRACK: Enable or disable SIP PRACK function, suggest use the default config. � Long Contact: Set more parameters in contact field. � Click to Talk: Set click to Talk (need practical software support). � Ban Anonymous Call: Set to ban Anonymous Call.

  • Page 28: Digital Map

    AT-610 User Manual � Media Key: voice stream encryption Key. 4.2. 4.2. 4.2. 4.2. Digital Digital Digital Digital Map Digit map is a set of rules to determine when the user has finished dialing. AT610 support below digital map: �...

  • Page 29: Stun

    AT-610 User Manual Notice Notice Notice Notice：The above configuration can exist at the same time. For example you enable # as the signal of sending the call while set fixed length of 11. Either you press # before the number reach 11 or dial 11 digital can send out the call 4.3.

  • Page 30: Call Service

    AT-610 User Manual 4.4. 4.4. 4.4. 4.4. Call Call Call Call Service Service Service Service � No Answer Time: no answer call forward time setting. � P2P IP Prefix: Set Prefix in peer to peer IP call. For example: what you want to dial is 192.168.1.119, if you define P2P IP Prefix as 192.168.1., you dial...

  • Page 31: Audio Settings

    AT-610 User Manual � You add a certain number in it, when this number call you , it will be refused. � Use “x” to represent any number. For example, 4xx means any incoming call with 3 digital and the first digital is 4, will be refused.

  • Page 32: Dial Peer

    AT-610 User Manual 4.5. 4.5. 4.5. 4.5. Audio Audio Audio Audio Settings Settings Settings Settings First Codec ： The fist preferential DSP codec:G.711A/u, G722, G.723, � G.726-32, G.729 � Second Codec：The second preferential DSP codec:G.711A/u, G722, G.723, G.726-32, G.729 Third Codec ： The third preferential DSP codec:G.711A/u, G722, G.723, �...
  • Page 33 AT-610 User Manual 5 5 5 5 、 Dial Dial Dial Dial Peer Peer Peer Peer This functionality offers you more flexible dial rule, you can refer to the following content to know how to use this dial rule. When you want to dial an IP address, the entry of IP addresses is very cumbersome, but by this functionality, you can set number 179 to replace 192.168.1.179 here.
  • Page 34 AT-610 User Manual � Alias (optional): Set up the Alias. We support four Alias as below. Alias need to co-work with the Del Length . � add:xxx, add prefix to the phone number, can set to reduce the dial length.

  • Page 35: Config Manage

    AT-610 User Manual mapped. The prefix number supports at most 30 digits. Destination ： Set Destination address. This is optional config item. If you � want to set peer to peer call, please input destination IP address or domain name. If you want to use this dial rule in SIP2 line, you need input 0.0.0.2 in it.

  • Page 36: Update

    AT-610 User Manual � Clear Config: user can restore factory default configuration and reboot the phone. If you login as Admin, the phone will reset all configurations and restore factory default; if you login as Guest, the phone will reset all configurations except for VoIP accounts (SIP1、SIP2 and IAX2) and version...

  • Page 37: Auto Provisioning

    AT-610 User Manual � Username: FTP user name (TFTP no need). � Password: FTP password (TFTP no need). � File name: the firmware or configuration file name that IP phone will search for in the server , if leave it as blank the IP phone with search the file with the name of its MAC such as 000102030405.

  • Page 38: System Manage

    AT-610 User Manual configuration file , counted in hour. � Update Mode: auto provision mode A、Disable: not auto update B、Update after reboot: auto update after reboot C、Update at time interval: auto update after a certain time 8 8 8 8 、...

  • Page 39: Phone Book

    AT-610 User Manual 8.2. 8.2. 8.2. 8.2. Phone Phone Phone Phone Book Book Book Book � Phonebook Table: shows phonebook detailed information. � Add Phone Book: add a new record in phonebook. Name: nick name of a number ，when the call of this number comes in the �...
  • Page 40 AT-610 User Manual levels in debug information: Level 0---emergency: This is highest default debug info level. You system cannot work. Level 1---alert: Your system has deadly problem. Level 2---critical: Your system has serious problem. Level 3---error: The error will affect your system working.

  • Page 41: Time Set

    AT-610 User Manual 8.4. 8.4. 8.4. 8.4. Time Time Time Time Set � Server: type the IP address of time server. � Time zone: select correct time zone in list box. � Timeout: longest response time for SNTP. � Daylight Time set: daylight setting through manual.

  • Page 42: Call Log

    AT-610 User Manual 8.5. 8.5. 8.5. 8.5. Call Call Call Call Log � Start Time：Display starts time of the outgoing record. � Last Time：Display conversation time of the outgoing record. � Called Number：Display the account/protocol/line of the outgoing record. Notice:...
