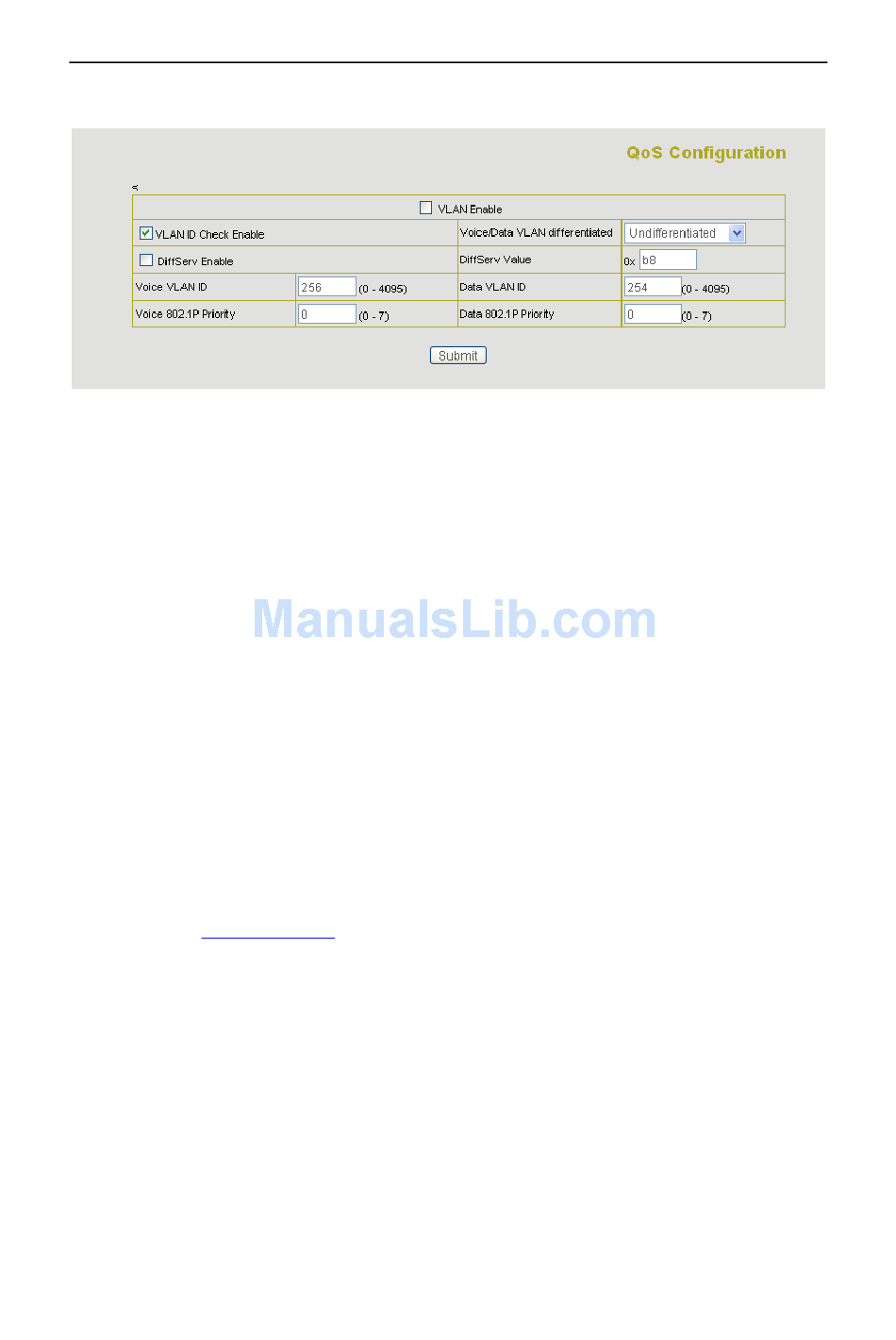

2.5.5 QoS settings

AT530P IP phone implement QoS based on 802.1p, The QoS is used to mark the network
communication priority in the data link/MAC sub-layer. AT530P will sorted the packets using
the QoS and sends it to the destination.
1. Voice 802.1p Priority --- Configure the priority of the voice packets in 802.1p protocol.
2. VLAN Enable --- Disable/Enable VLAN function
3. Voice VLAN ID --- configure the Voice/signaling VLAN ID
4. DiffServ Enable --- Disable/Enable Diffserv service
5. DiffServ Value --- Configure Diffserv parameter. The value range : value range：
0x28,0x30,0x38,0x48,0x50,0x58,0x68,0x70,0x78,0x88,0x90,0x98,0xb8.default is 0xb8 ,oxb8
stands for best fast transmission; 28-30 is guaThrantee for the transmission priority for the 1st
rank , 48-58 is guarantee for the transmission priority for the 2nd rank, 68-78 is guarantee for
the transmission priority for the 3rd rank, 88-98 is guarantee for the transmission priority for
the 4th rank.
6. Data VLAN ID--- Assign VLAN id for data stream.
7. Data 802.1P Priority --- Configure the priority of the data packets (non-voice/signaling
data) in 802.1p protocol.
8. Data/Voice DiffServ differentiated --- undifferentiated for Date and voice VLAN is not
distinction VLAN tag, Tag differentiated for Date and Voice VLAN is distinction VLAN tag,
Date untagged for Date VLAN is distinction VLAN tag
