Wiring the TX3-NSL-8M Main Controller Board

The TX3-NSL-8M NSL Main Controller Board has both ribbon cable sockets
and screw terminals.
Attention: High voltages are present on this board during the ringing of suite
Figure 28 shows the general layout of the TX3-NSL-8M Main Controller board
components.
TX3-NSL-8M Relay Control Unit

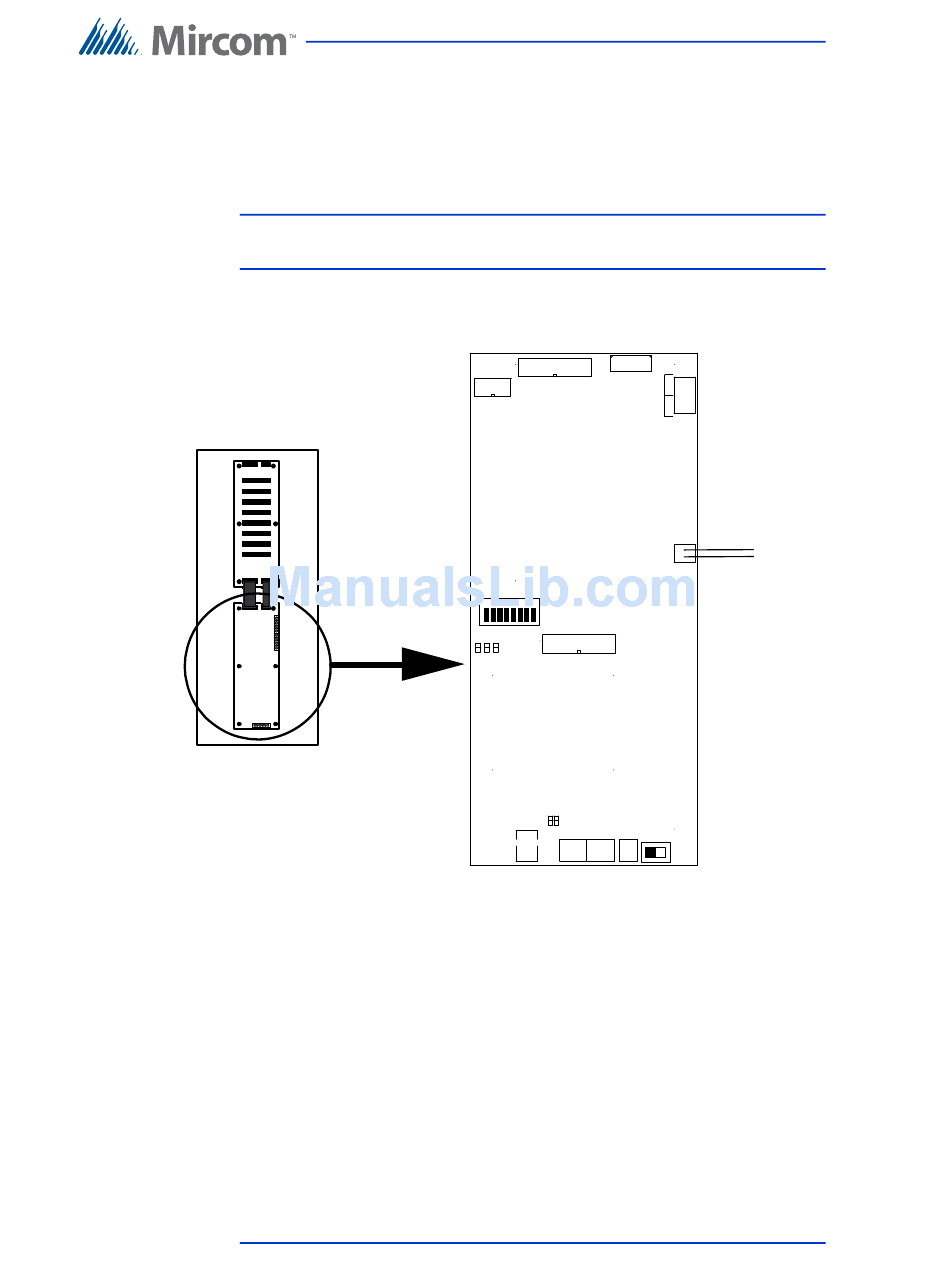

Figure 28. TX3-NSL-8M Main Controller Board

5.3.1 Connectors
USB. Computer connection for firmware download.
P3. Not used.
P4. Expansion to the NSL Controller back-plane.
P5. Expansion to the NSL Controller back-plane.
P6. Not used.
