4.2.7 Power Supply
The power supply connection is situated at the bottom right of the main controller
board and receives 16 Vac, 40 VA. An external PS-4 or PS-4P plug-in
transformer connects to the power terminals. Refer to Figure 13 and Figure 16.
Version 1.6 Telephone Access System Installation and Operation Manual
LT-969 Copyright 2012
OFF
ON/OFF Switch
16 Vac IN
Note: Use 18 AWG
ON
SW2
16 Vac
16 Vac transformer
(PS-4 or PS-4P)

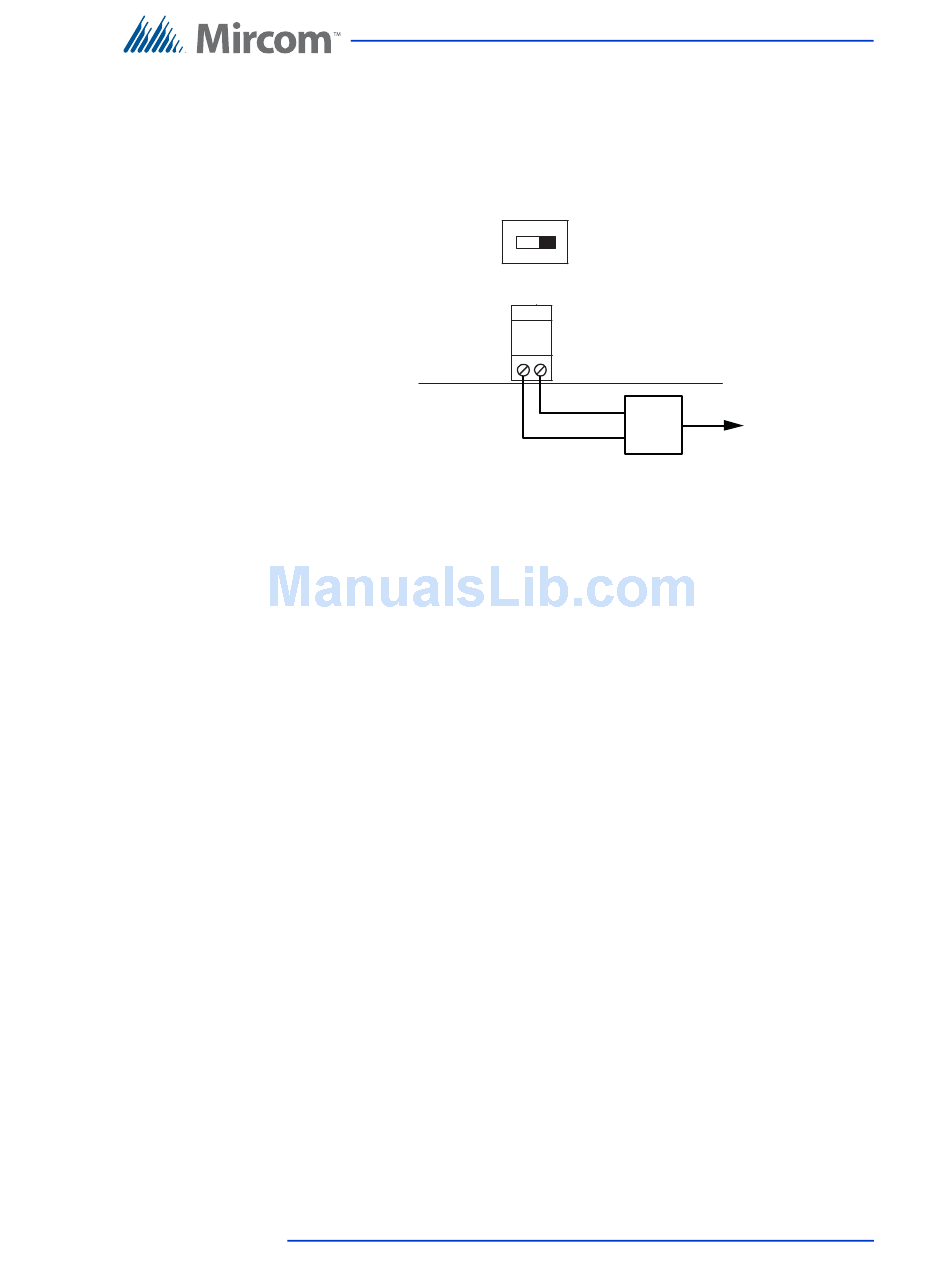

Figure 16. Power Supply
