Figure 3. Continental Enclosure Flush Mount - Mircom TX3 Series Installation And Operation Manual

2.2.3 Installing the Continental enclosure
The Continental enclosure flush mounts directly inside the wall to the wall stud as
shown in Figure 3. Mount the back box flush with the wall and right-side up (the
ground screw location is at the bottom).
Use the two side
slots for mounting
the box to the
wall stud
18 "
1/2
Cut out in wall should be :
16 7/8" H x 10 3/8" W x 3" D
Outside Frame dimensions are:
18 1/2"H x 12" W x 1/2" D

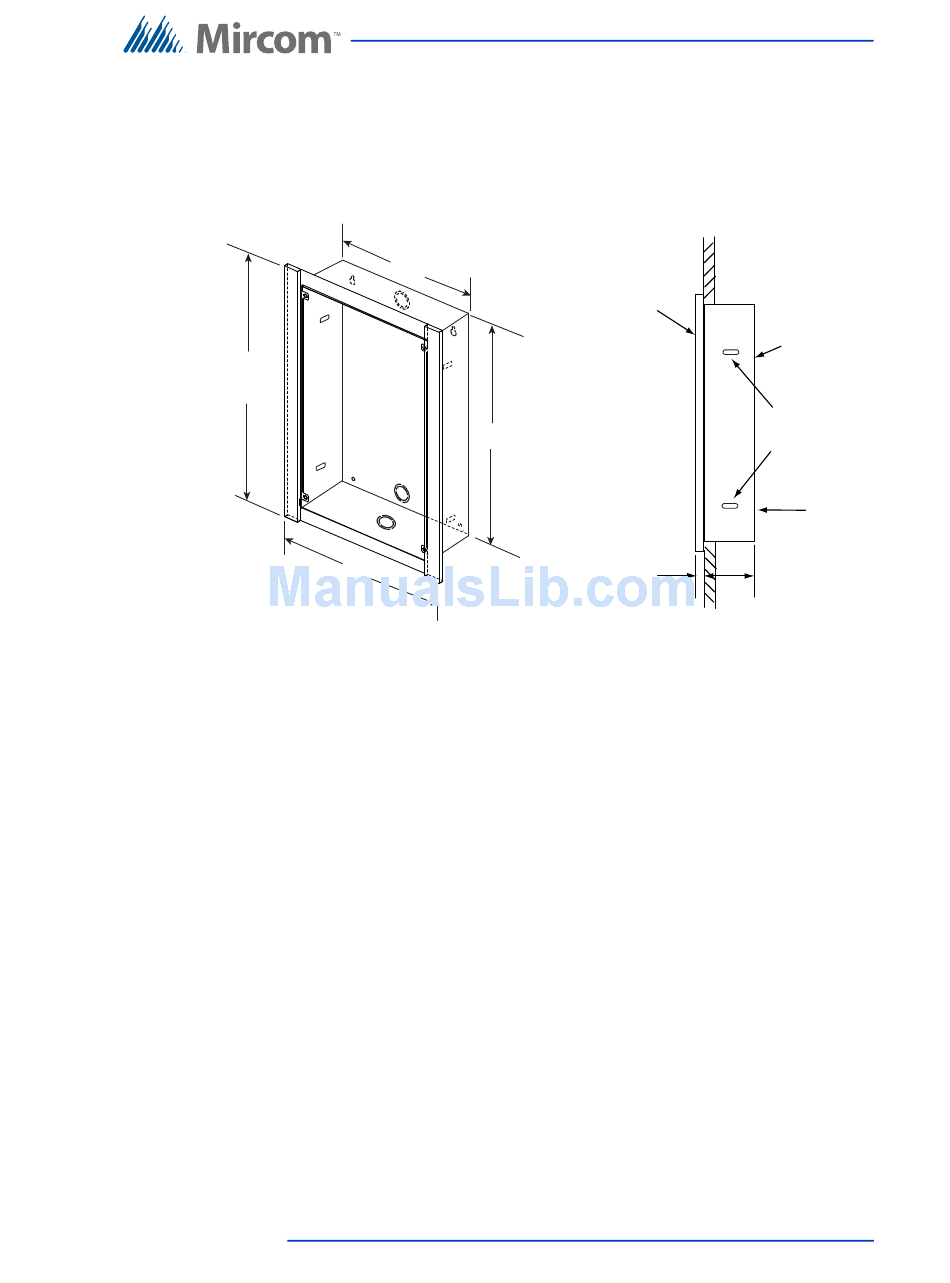

Figure 3.
To install the Continental enclosure
1.
2.
3.
4.
5.
6.
7.
8.
Version 1.6 Telephone Access System Installation and Operation Manual
LT-969 Copyright 2012
10 "
3/8
16 "
7/8
1 "
2
The Continental enclosure back box must be
flush mounted with wall
Continental Enclosure Flush Mount
Find a suitable location for the Continental enclosure beside a wall stud.
Using the enclosure as a template, trace an opening in the wall for the cut
out with one side aligned with the side of the wall stud.
Cut an opening in the wall ensuring that one side is aligned with the wall
stud.
Insert the enclosure into the wall cutout and using the enclosure as a
template mark the top mounting hole location as shown in the side view in
Figure 3. Ensure that at least one side is beside a wall stud.
Remove the enclosure and place the screw halfway into the wall into the
marked hole location using the supplied screw.
Place the enclosure onto the top screw.
Screw the lower two screw at the bottom of the trim ring halfway into the
wall.
Tighten the two screws into place.
Enclosure Installation
WALL
TOP
OUTSIDE
FRAME
MOUNTING
KNOCKOUTS
FRONT
0.5 "
3.0 "
SIDE VIEW
BACKBOX
GROUND
SCREW
LOCATION
