Elevator Restriction Controller Backplane

The TX3-ER-8 Elevator Restriction Unit Backplane has ribbon cables to connect
to the Elevator Restriction Main Controller board and eight sockets for 2012E
Relay Boards.
TX3-ER-8 Elevator
Restriction Unit

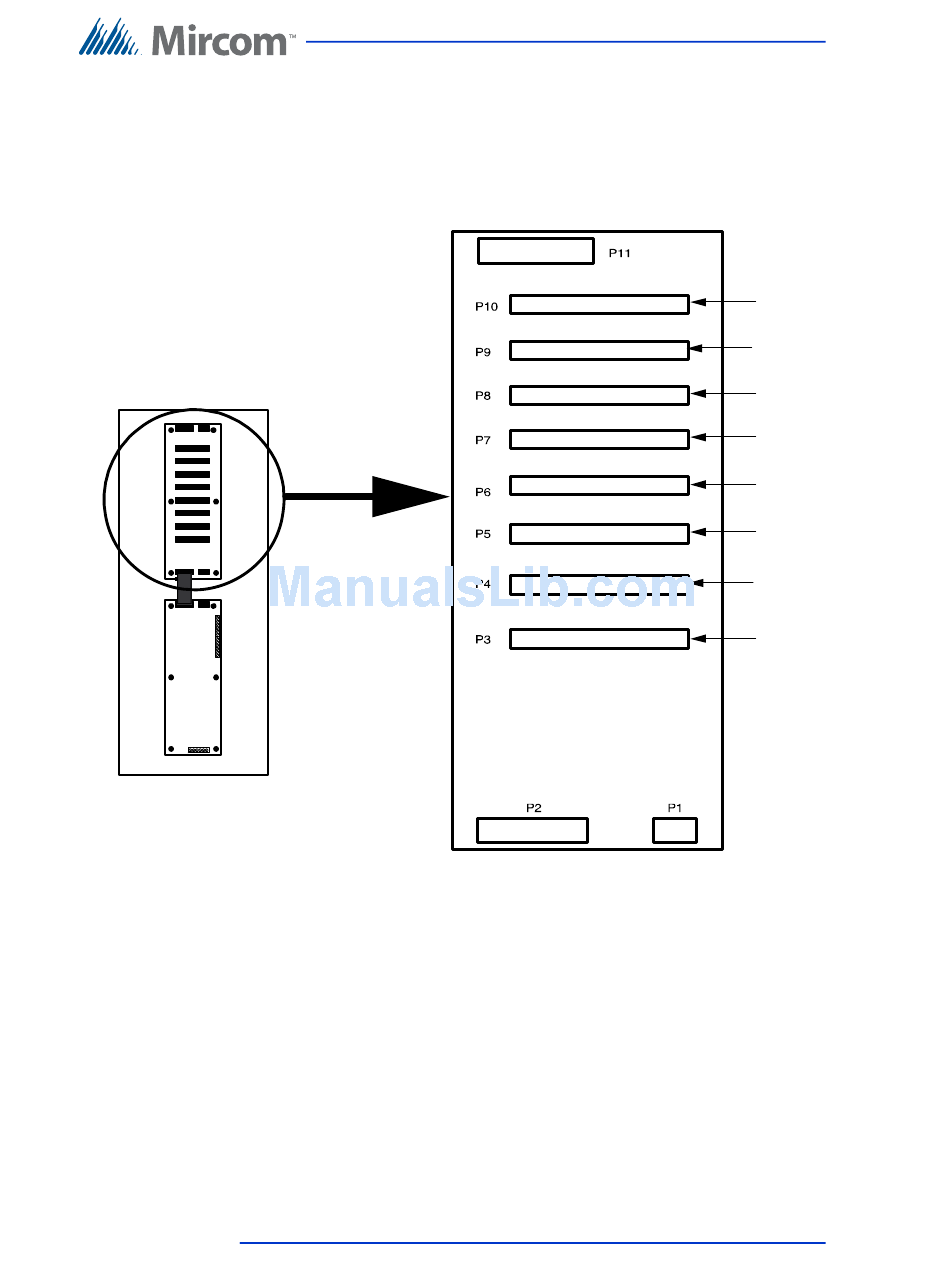

Figure 42. Elevator Restriction Controller Backplane

6.4.1 Connectors
P1. Not used.
P2. Ribbon cable connector from the elevator restriction main controller board.
P3 to 10. Connectors for the elevator restriction 2012E Relay Boards (maximum
eight relay boards per backplane and one backplane per elevator). Boards are
mounted starting from Position 1, 2, 3 up to Position 8.
P11. Not used.
