Elevator Restriction Cabinet Mechanical
Installation
The Elevator Restriction cabinet contains the elevator access equipment and is
typically mounted in the electrical/telephone room of a building. The unit is
factory assembled in one cabinet size shown below.
The back cover is 10 1/8 inches wide by 27 inches long. The top two mounting
holes are 6 3/16 inches apart.

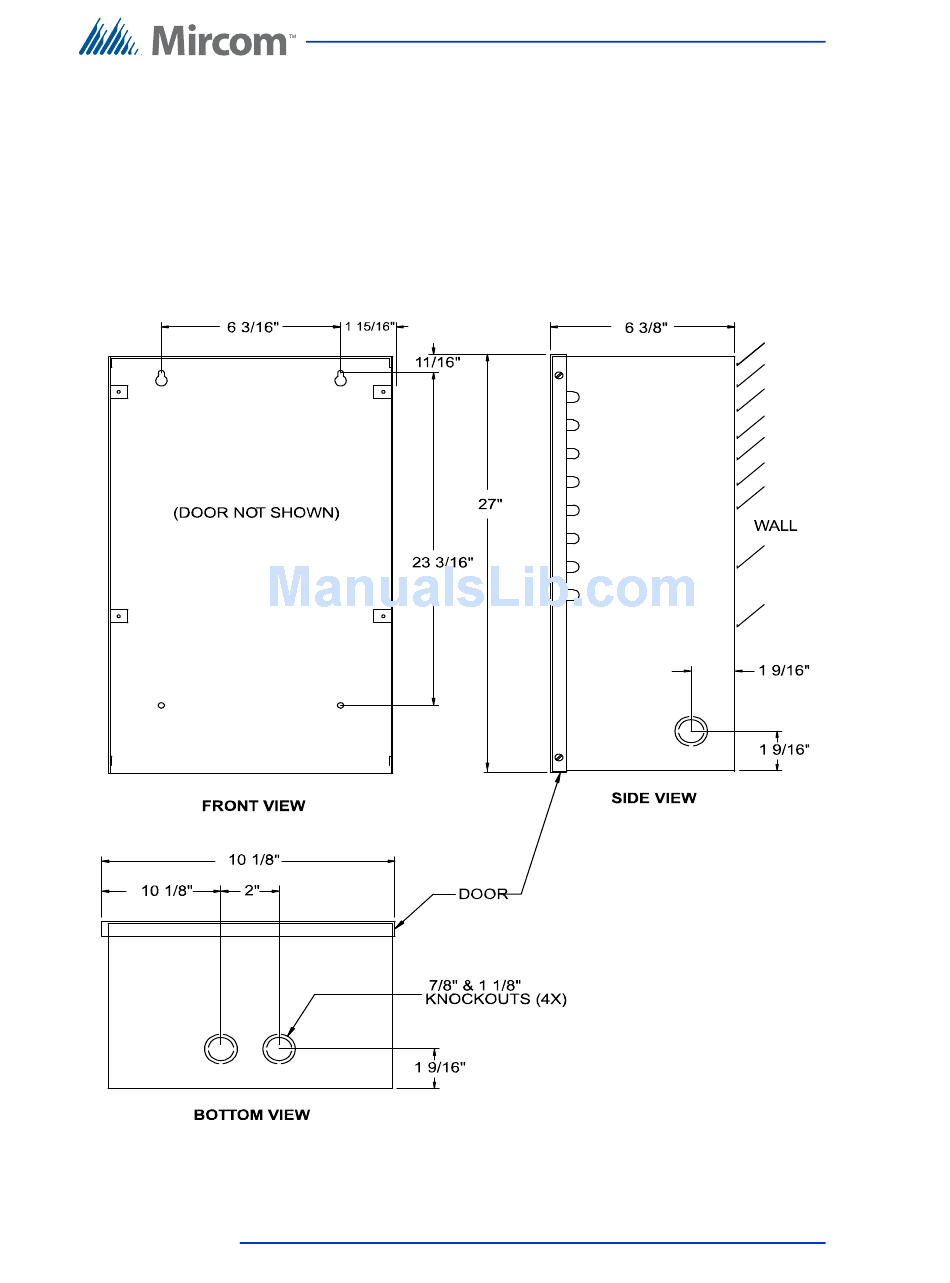

Figure 37. Elevator Relay Cabinet
Telephone Access System Installation and Operation Manual
80 (112)
LT-969
Copyright 2012
Elevator Restriction Unit Installation and Configuration
Version 1.6
