4.1
Controller Board
Figure 12 shows the general layout of the Lobby Control Unit main controller
board. See Figure 13 and Figure 17 for a detailed description of the connectors at
the bottom and top of the controller board.
Telephone Access System Installation and Operation Manual
38 (112)
LT-969
Copyright 2012

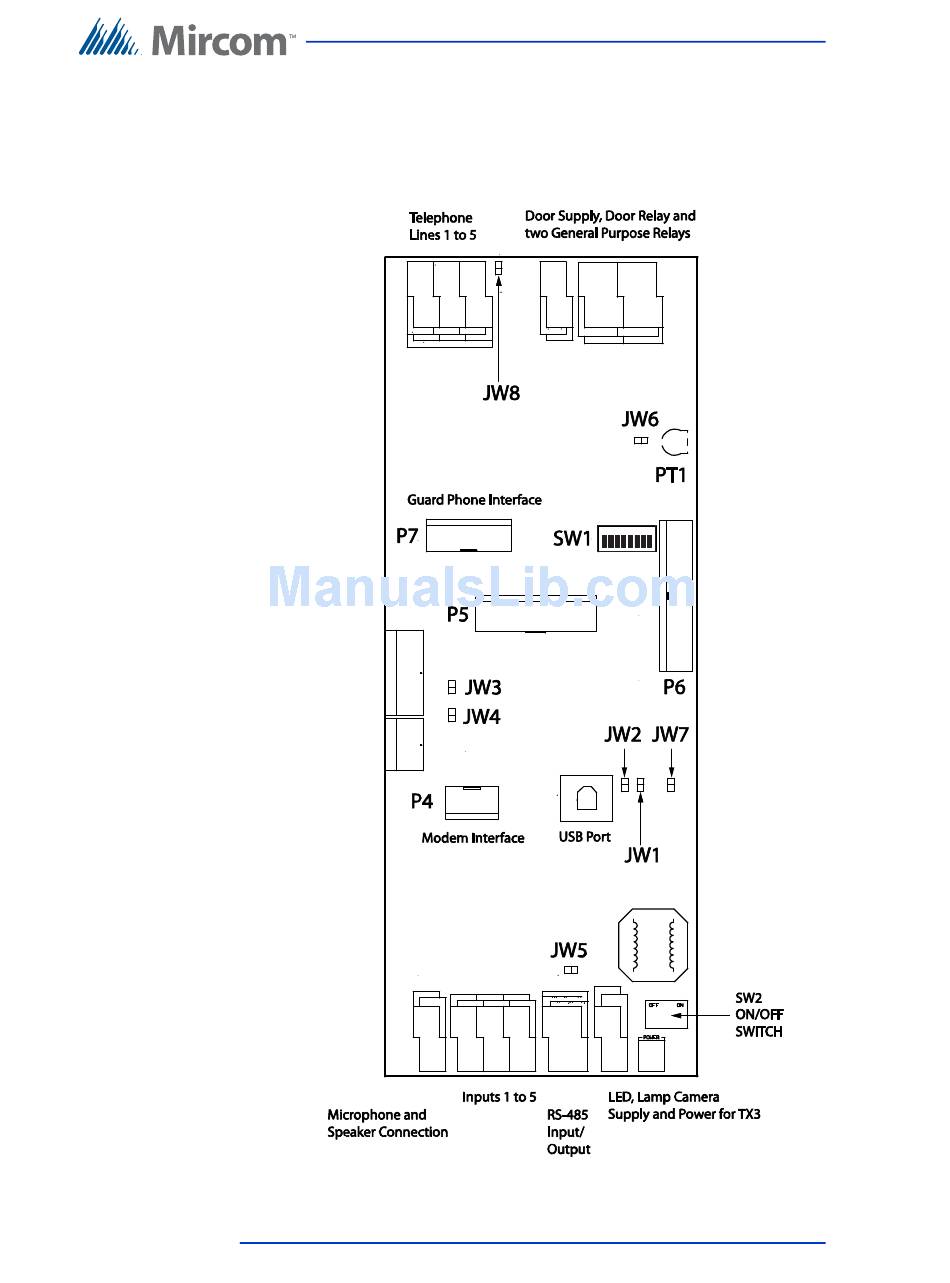

Figure 12.Lobby Control Unit Main Controller Board
Lobby Control Unit Setup
Version 1.6
