V i p e r s a t C o nf i g u r a t i o n
From a Hub CDM-570/570L, entering R at the command prompt displays the
STDMA Remotes Menu.

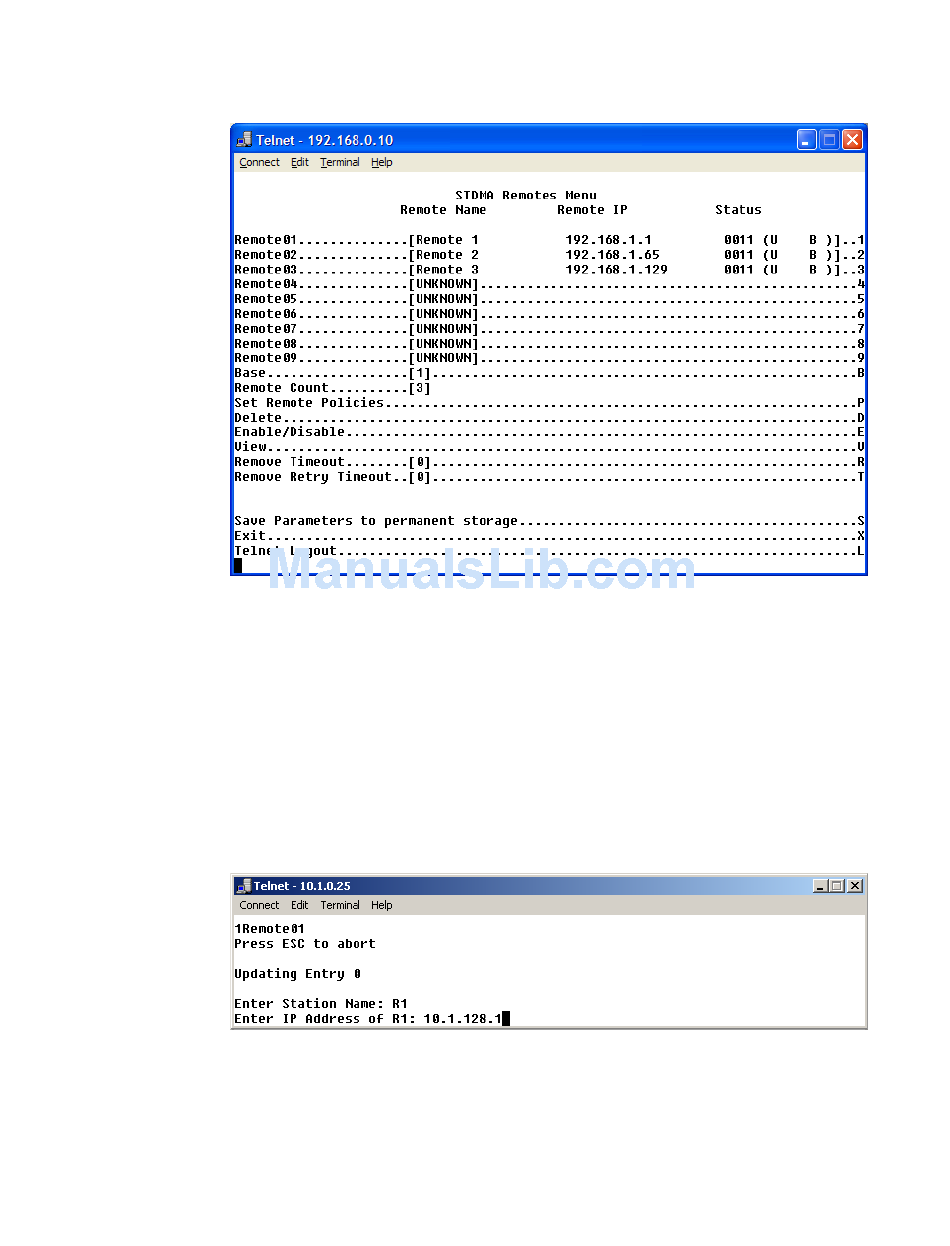

STDMA Remotes Menu screen
Figure 3-17
The menu shown in figure 3-17 is used to define and make modifications to the
Remotes that belong to the STDMA group for the Hub burst controller, as well
as to display each Remote's burstmap status information.

Adding a Remote to the STDMA Group

Entering the item number for the Remote modem/router brings up the dialog
shown in figure 3-18. A prompt to enter the Name for the Remote unit appears,
followed by a prompt to enter the IP Address.
Figure 3-18 Adding a Remote to the STDMA group
Once a Remote has been added to the group, its Status in the group is displayed
by the use of the following letters:
V i p e r s a t C D M - 5 7 0 / 5 7 0 L U s e r G u i d e
3-18
