3.3 Replacing the Filter

The filter is to block the dust or the particles from the work
environment and extend the system longevity. It's better to replace
the new filter periodically. There is one filter behind the front door
and four filters on left and right sides of the chassis. To replace the
filter, please refer to Figure 3-2 and proceed as follows.

3.3.1 Replacing the front filter

1. Open the front door.
2. Loosen the screw located on the filter cover and then gently pull
the filter cover forward. Please see Figure 3-2.
3. Remove the filter and replace it with a new one.
4. Slide the filter cover back to the right location and then fasten it.

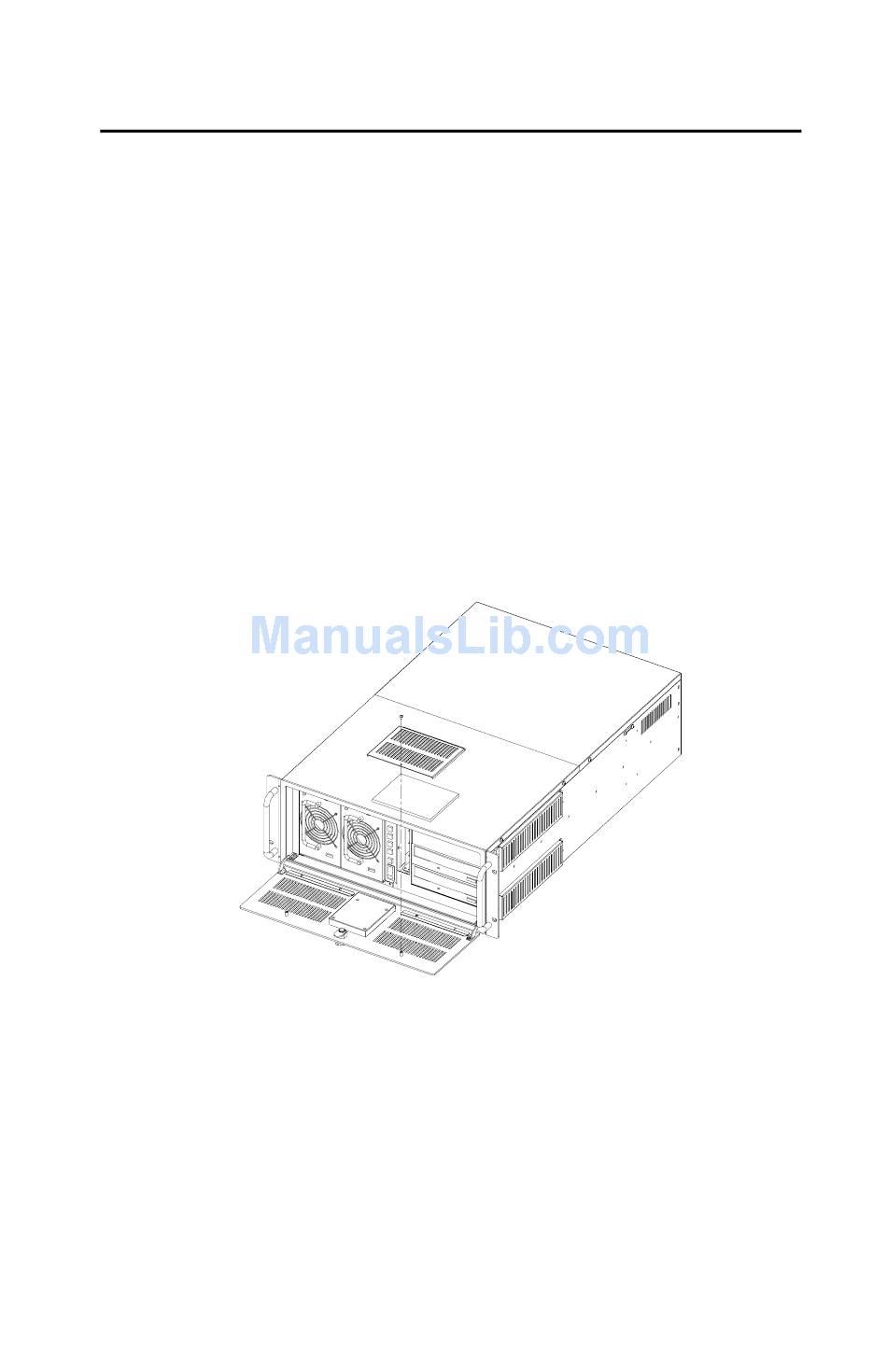

Figure 3-2: Replacing the filter behind the front door

23 IPC-623B User's Manual
