Advantech IPC-6025 User Manual

Advantech IPC-6025 User Manual

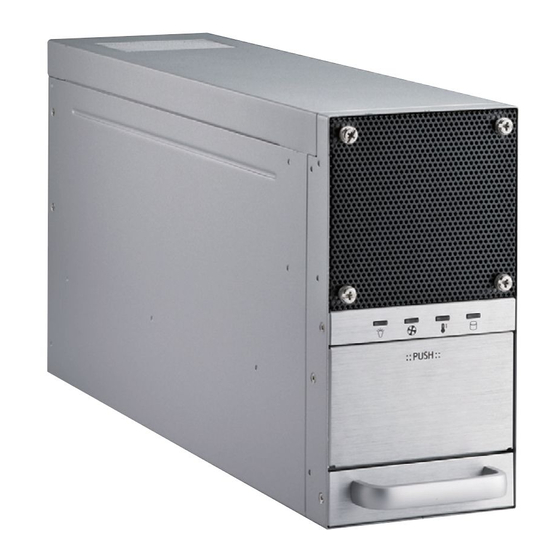

5-slot desktop/wallmount chassis with scalability for multi-system solution
Table of Contents

Advertisement

Quick Links

User Manual
IPC-6025
5-slot Desktop/Wallmount
Chassis with Scalability for
Multi-system Solution
可扩展、适用于多系统解决方案的
5 槽桌面 / 壁挂式安装机箱
可擴展、適用於多系統解決方案的
5 槽桌面 / 壁掛式安裝主機殼

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPC-6025 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advantech IPC-6025

  • Page 1 User Manual IPC-6025 5-slot Desktop/Wallmount Chassis with Scalability for Multi-system Solution 可扩展、适用于多系统解决方案的 5 槽桌面 / 壁挂式安装机箱 可擴展、適用於多系統解決方案的 5 槽桌面 / 壁掛式安裝主機殼...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 CAUTION: The computer is provided with a battery-powered real-time clock cir- cuit. There is a danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacture. Discard used batteries according to the manufacturer’s instructions. IPC-6025 User Manual/ 用户手册...
  • Page 4 (ex. screws) provided with the accessory box. 请仔细阅读此安全操作说明。 请妥善保存此用户手册供日后参考。 用湿抹布清洗设备前,请从插座拔下电源线。请不要使用液体或去污喷雾剂清洗 设备。 对于使用电源线的设备,设备周围必须有容易接触到的电源插座。 请不要在潮湿环境中使用设备。 请在安装前确保设备放置在可靠的平面上,意外跌落可能会导致设备损坏。 请不要把设备放置在超出我们建议的温度范围的环境,即不要低于 0°C (32°F)或高于 40°C (104°F) ,否则可能会损坏设备。 设备外壳的开口是用于空气对流,从而防止设备过热。请不要覆盖这些开口。 当您连接设备到电源插座上前,请确认电源插座的电压是否符合要求。 请将电源线布置在人们不易绊到的位置,并不要在电源线上覆盖任何杂物。 请注意设备上的所有警告标识。 如果长时间不使用设备,请将其同电源插座断开,避免设备被超标的电压波动损 坏。 请不要让任何液体流入通风口,以免引起火灾或者短路。 请不要自行打开设备。为了确保您的安全,请由经过认证的工程师来打开设备。 如遇下列情况,请由专业人员来维修: 电源线或者插头损坏; 设备内部有液体流入; 设备曾暴露在过于潮湿的环境中使用; 设备无法正常工作,或您无法通过用户手册来使其正常工作; 设备跌落或者损坏; 设备有明显的外观破损。 IPC-6025 User Manual/ 用户手册...
  • Page 5 电。由于现在的电子设备对静电十分敏感, 为了安全起见,请使用接地腕环。 请将所有电子元件放在无静电的表面或静电屏蔽袋中。 注意:任何未经验证的部件都可能对设备造成意外损坏。为保证安装正确,请只 使用附件盒内提供的部件,如螺丝。 請仔細閱讀此安全操作說明。 請妥善保存此用戶手冊供日後參考。 用濕抹布清洗設備前,請從插座拔下電源線。請不要使用液體或去汙噴霧劑清洗 設備。 對於使用電源線的設備,設備周圍必須有容易接觸到的電源插座。 請不要在潮濕環境中使用設備。 請在安裝前確保設備放置在可靠的平面上,意外跌落可能會導致設備損壞。 請不要把設備放置在超出我們建議的溫度範圍的環境,即不要低於 0°C (32°F)或高於 40°C (104°F) ,否則可能會損壞設備。 設備外殼的開口是用於空氣對流,從而防止設備過熱。請不要覆蓋這些開口。 當您連接設備到電源插座上前,請確認電源插座的電壓是否符合要求。 請將電源線佈置在人們不易絆到的位置,並不要在電源線上覆蓋任何雜物。 請注意設備上的所有警告標識。 如果長時間不使用設備,請將其同電源插座斷開,避免設備被超標的電壓波動損 壞。 請不要讓任何液體流入通風口,以免引起火災或者短路。 請不要自行打開設備。為了確保您的安全,請由經過認證的工程師來打開設備。 如遇下列情況,請由專業人員來維修: 電源線或者插頭損壞; 設備內部有液體流入; 設備曾暴露在過於潮濕的環境中使用; 設備無法正常工作,或您無法通過用戶手冊來使其正常工作; 設備跌落或者損壞; 設備有明顯的外觀破損。 注意:電腦配置了由電池供電的即時時鐘電路,如果電池更換不正確,將有爆炸 的危險。因此,只可以使用製造商推薦的同一種或者同等型號的電池進行替換。 請按照製造商的指示處理舊電池。 IPC-6025 User Manual/ 用户手册...
  • Page 6 Advantech has come to be known. Your satisfaction is our primary concern. Here is a guide to Advantech°Øs customer services.
  • Page 7 Our dealers are well trained and ready to give you the support you need to get the most from your Advantech products. In fact, most problems reported are minor and can be easily solved over the phone.
  • Page 8 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 9 It should be free of marks and scratches and in perfect working order upon receipt. As you unpack the IPC-6025, check it for signs of ship- ping damage. (For example, damaged box, scratches, dents, etc.) If it is damaged or it fails to meet the specifications, notify our service department or your local sales representative immediately.
  • Page 10 打開包裝時,用戶需確認包裝中含有下面所列各項:  IPC-6025 主機殼  用戶手冊  質保卡  附件盒,包括一袋螺絲 (用於固定無源底板或 CPU 卡、磁碟機、壁掛式安裝支架 等) 、EMI 彈片、橡膠墊腳 (無源底板型)和一對壁掛式安裝支架。 如果其中任何一項缺失或者破損,請立即聯繫您的銷售商或銷售代表。裝貨前,我們 已全面仔細檢查過產品。因此您購買的產品應當是完好無損且運轉正常的。在您打開 產品的包裝時,請檢查是否有破損痕跡 (例如,包裝箱損壞,劃痕,凹痕等) 。如果 產品有破損或者不符合規格,請立即聯繫我們的服務部門或您的銷售商。同時也要通 知搬運人員。請保留包裝箱及包裝材料以備搬運人員檢查。檢查之後,我們會給您提 供維修或更換服務。 IPC-6025 User Manual/ 用户手册...
  • Page 11: Table Of Contents

    3.5”FDD 或 HDD 安装至托架 / 將 3.5”FDD 或 HDD 安裝至托架 ........16 Figure 2.9 Installing 3.5” FDD or HDD disk drive/ 安装 3.5”FDD 或 HDD/ 安裝 3.5”FDD 或 HDD..16 Installing Wallmount Bracket/ 安装壁挂式安装支架 / 安裝壁掛式安裝支架..........17 Figure 2.10Installing Wallmount Brackets/ 安装壁挂式支架 / 安裝壁掛式支架........17 IPC-6025 User Manual/ 用户手册...
  • Page 12 Chapter Operation 操作 ......19 The Front Panel of IPC-6025/IPC-6025 前面板 ..... 20 Figure 3.1 Closed/Open front panel/ 闭合的 / 开启的前面板 / 閉合的 / 開啟的前面板 ......20 Switch, Button and I/O Interface/ 开关、按钮和 I/O 接口 / 3.1.1 開關、按鈕和 I/O 介面 ........20 LED Indicators for System Status/ 用于指示系统状态的...
  • Page 13 ....... 41 Assemble Rack Carrier/ 安装机架载板 / 安裝機架載板 ....42 Figure C.1 Assemble Rack Carrier/ 安装机架载板 / 安裝機架載板4 2 Install IPC-6025 on the Rack Carrier/ 将 IPC-6025 安装至机架载板 / 將 IPC- 6025 安裝至機架載板 ..........43 Figure C.2 Reverse wall-mount bracket/翻转壁挂式安装支架 /翻轉 壁掛式安裝支架........43 Figure C.3 Fix wall-mount bracket on the bottom of IPC-6025/ 将壁...
  • Page 14 IPC-6025 User Manual/ 用户手册...
  • Page 15: Chapter 1 General Information 產品資訊

    Chapter General Information 產品資訊...
  • Page 16: Introduction/ 产品简介 / 產品簡介

    Introduction/ 产品简介 / 產品簡介 IPC-6025 is a 5-slot Desktop/Wallmount Chassis with scalability for multi-system solution. It meets a variety of application needs for multi-system solution, like Auto- matic Optical Inspection (AOI). This powerful computing platform is suitable for multi- system applications, industrial automation, and factory management. Besides, IPC- 6025 can also work as a 5-slot wallmount IPC Chassis which is ideal to be integrated for different applications.
  • Page 17: Power Supply Options/ 电源选项 / 電源選項

    Temperature/ 温度 / 溫度 0 to 40° C (32 to 104° F) -20 to 60° C (-4 to 140° F) Humidity/ 湿度 / 濕度 10 to 85% @ 40° C, 10 to 95% @ 40° C, non-condensing/ 非凝結 non-condensing/ 非凝結 Vibration/ 振动 / 振動 1 G rms IPC-6025 User Manual/ 用户手册...
  • Page 18: Dimension Diagram/ 产品尺寸 / 產品尺寸

    Dimension Diagram/ 产品尺寸 / 產品尺寸 Unit: mm Figure 1.1 Dimension diagram/ 产品尺寸 / 產品尺寸 Figure 1.2 Single System Installation/ 单系统安装 / 單系統安裝 IPC-6025 User Manual/ 用户手册...
  • Page 19 Figure 1.3 Quad System Installation/ 四系统安装 / 四系統安裝 IPC-6025 User Manual/ 用户手册...
  • Page 20 IPC-6025 User Manual/ 用户手册...
  • Page 21: Chapter 2 System Setup 系统安装

    Chapter System Setup 系统安装...
  • Page 22: Removing The Top Cover/ 移除顶盖 / 移除頂蓋

    The following procedures instruct users to install a backplane/SHB, add-on cards and disk drives into the IPC-6025. Please also refer to Appendix A, Exploded Diagram, for the detailed parts of IPC-6025. Note! Use caution when installing or operating the components with the chas- sis open.
  • Page 23: Installing Passive Backplane/ 安装无源底板 / 安裝無源底板

    Figure 2.1 Removing the top cover/ 移除顶盖 / 移除頂蓋 Installing Passive Backplane/ 安装无源底板 / 安裝 無源底板 The IPC-6025 supports up to PICMG1.3/PICMG1.0 5-slot backplane. To install the backplane, please proceed as follows: After installing a BACKPLANE, install the EMI finger (included in accessory box) on the rear side of the backplane (see Figure2.2)
  • Page 24 IPC-6025 支持 PICMG1.3/PICMG1.0 5 槽無源底板。請按照以下步驟的指導安裝無源底 板 安裝完無源底板後可將 EMI 彈片 (附件盒內已提供)安裝至無源底板後部,如 圖 2.2 所示。 然後使用附件盒內提供的螺絲固定無源底板和 EMI 彈片,如圖 2.2 所示。 將 20 針 ( 或 24 針 )ATX 電源連接器和 4 針 +12V 電源連接器連接至無源底板 (對於 PICMG 1.0 無源底板,4 針 +12V 電源連接器需連接至 CPU 卡) 。...
  • Page 25: Installing Cpu Card Or Add-On Card/安装Cpu卡或 附加卡 / 安裝 Cpu 卡或附加卡

    Installing CPU Card or Add-on Card/安装CPU卡或 附加卡 / 安裝 CPU 卡或附加卡 IPC-6025 supports up to 5 cards. To install a CPU card or add-on card, please pro- ceed as follows: Select a vacant PICMG slot for the full-length CPU card, and select a PCIe, PCI-X or PCI/ISA slot for other add-on cards.
  • Page 26 Figure 2.3 Installing a CPU card/ 安装 CPU 卡 / 安裝 CPU 卡 Figure 2.4 Installing an add-in card/ 安装附加卡 / 安裝附加卡 IPC-6025 User Manual/ 用户手册...
  • Page 27: Hold-Down Clamp/ 固定压条 / 固定壓條

    (see Figure 2.6) 固定压条能够保护所有的卡,使其免受振动或冲击造成的损坏。所有卡安装完成后, 请参考下面的步骤安装好橡胶垫和固定压条: 翻转上盖,将固定压条安装在上盖后侧,如图 2.5 所示。 固定压条上有两排凹槽,用来插入附件盒中提供的橡胶垫。请选择合适的凹槽安装橡 胶垫脚。橡胶垫脚安装完毕后,将会保护所有附加卡,使其免受振动或冲击造成的损 坏,如图 2.6 所示。 固定壓條能夠保護所有的卡,使其免受振動或衝擊造成的損壞。所有卡安裝完成後, 請參考下面的步驟安裝好橡膠墊和固定壓條: 翻轉上蓋,將固定壓條安裝在上蓋後側,如圖 2.5 所示。 固定壓條上有兩排凹槽,用來插入附件盒中提供的橡膠墊。請選擇合適的凹槽安 裝橡 膠墊腳。橡膠墊腳安裝完畢後,將會保護所有附加卡,使其免受振動或衝擊 造成的損 壞,如圖 2.6 所示。 Figure 2.5 Installing rubber cushions on top cover/将橡胶垫脚安装至上盖/將橡膠 墊腳安裝至上蓋 IPC-6025 User Manual/ 用户手册...
  • Page 28: Removing Side Cover/ 移除侧盖 / 移除側蓋

    To remove the side cover of the chassis, please proceed as below. Loose the screws on the edge of the side cover. Pull the chassis side cover backwards and then take it outward. 请按照以下步骤的指导移除侧盖: 卸下侧盖一侧的大头螺丝。 将机箱侧盖向后拉出,然后向外拉出。 請按照以下步驟的指導移除側蓋: 卸下側蓋一側的大頭螺絲。 將主機殼側蓋向後拉出,然後向外拉出。 Figure 2.7 Remove side cover/ 移除侧盖 / 移除侧盖 IPC-6025 User Manual/ 用户手册...
  • Page 29: Installing Disk Drives/ 安装磁盘驱动器 / 安裝磁碟機

    IPC-6025 支持 2 个 3.5” 磁盘驱动器(1 个 3.5” 外置和 1 个 3.5” 内置) (或 2.5” FDD) 。请按照以下步骤的指导安装各种驱动器: IPC-6025 支持 2 個 3.5” 磁碟機 (1 個 3.5” 外置和 1 個 3.5” 內置) (或 2.5”FDD) 。 請按照以下步驟的指導安裝各種驅動器: Installing Disk Drives/ 安装磁盘驱动器 / 安裝磁碟機...
  • Page 30: Fdd 或 Hdd 安装至托架 / 將 3.5"Fdd 或 Hdd 安裝至托架

    請按照以下步驟的指導安裝 3.5”HDD 和 FDD,如圖 2.7 所示。 卸下磁碟機托架 (位於 IPC-6025 的底部)上的螺絲。 將 3.5”HDD 或 FDD 正確插入托架後用螺絲固定好,如圖 2.8 所示。 然後將已安裝驅動器的托架放回原處並用螺絲進行固定,如圖 2.9 所示。 將 CPU 卡或主機板上的電纜連線至 3.5”HDD 或 FDD,然後將電源接頭插入每個 磁盤驅動器。 Figure 2.8 Installing 3.5” FDD or HDD into drive bracket/ 将 3.5”FDD 或 HDD 安装至...
  • Page 31: Installing Wallmount Bracket/ 安装壁挂式安装支架 / 安裝壁掛式安裝支架

    Figure 3.0 to simply fasten wallmount brackets to the right edge and left edge of the bottom with the screws provided. 附件盒中提供了一对壁挂式安装支架。请参考图 2.10 用螺丝将支架固定在设备地步的 左右两侧。 附件盒中提供了一對壁掛式安裝支架。請參考圖 2.10 用螺絲將支架固定在設備地步的 左右兩側。 Figure 2.10 Installing Wallmount Brackets/ 安装壁挂式支架 / 安裝壁掛式支架 IPC-6025 User Manual/ 用户手册...
  • Page 32 IPC-6025 User Manual/ 用户手册...
  • Page 33: Operation 操作

    Chapter Operation 操作...
  • Page 34: The Front Panel Of Ipc-6025/Ipc-6025 前面板

    The Front Panel of IPC-6025/IPC-6025 前面板 The front panel features the door and four LED indicators. The user can close the door to prevent the dust. While opening the door, there is a momentary power switch, System Reset buttons, an Alarm Reset button, and two dual USB ports. Their individ- ual functions are described as below.
  • Page 35: Led Indicators For System Status/ 用于指示系统状态的 Led 指示灯 / 用於指示系統狀態的 Led 指示燈

    (系統風扇故障) (CPU 風扇故障) Temperature/ Abnormal Abnormal 温度 / 溫度 Temperature in the (system temp fail)/ (CPU temp fail)/ 异常 异常 chassis/ Normal/ 正常 机箱内温度 / (系统温度故障) / (CPU 温度故障) / 主機殼內溫度 異常 異常 (系統溫度故障) (CPU 溫度故障) IPC-6025 User Manual/ 用户手册...
  • Page 36 粉灯亮时,表示 CPU 冷却器发生故障。此时,报警器将被启动。按下报警复位按钮即 可停止报警声。用户需立即以完好风扇替换故障风扇。 温度 LED 红灯亮时,表示机箱内部温度过高 (高于 55° ) 。温度 LED 粉灯亮时,表示 CPU 温度过高(高于 70° ) 。此时,声音报警器将被启动。按下报警复位按钮即可停止 报警声。用户需立即检查风扇滤网或 CPU 卡的温度以及机箱上部,确认机箱内的空气 流通良好、没有被灰尘等颗粒物阻塞。 注! CPU 冷却器或 CPU 温度是否可检测取决于 CPU 卡的设计。 HDD LED 闪烁时,表示 HDD 数据正在被访问。HDD LED 不亮时,表示 HDD 未活动。 IPC-6025 User Manual/ 用户手册...
  • Page 37: The Rear Panel/ 后面板 / 後面板

    For the backplane version, the rear plate includes two reserved 9-pin D-SUB open- ing. (see Figure 3.2). 无源底板型的机箱后面板上配有 2 个预留 9 针 D-SUB 开口,如图 3.2 所示。 無源底板型的主機殼後面板上配有 2 個預留 9 針 D-SUB 開口,如圖 3.2 所示。 Figure 3.2 Rear panel/ 后面板 / 後面板 IPC-6025 User Manual/ 用户手册...
  • Page 38: Replacing The Cooling Fan/ 更换冷却风扇 / 更換冷卻風扇

    卸下风扇支架上的 4 个螺丝和风扇网罩上的 4 个螺丝,然后更换风扇,如图 3.4 所示。 用卸下的 4 个螺丝固定新风扇。 将风扇支架放回机箱并用卸下的 2 个大头螺丝进行固定,然后插上风扇电源插 头。 将上盖放回原处并用螺丝固定好。 主機殼的前面板後側有一個冷卻風扇。該風扇易於維護,且為系統提供了良好的冷卻 功能。請按照以下步驟的指導更換風扇: 移除上蓋。 拔下風扇電源插頭。 卸下風扇上部的 2 個大頭螺絲,然後將其取出,如圖 3.3 所示。 卸下風扇支架上的 4 個螺絲和風扇網罩上的 4 個螺絲,然後更換風扇,如圖 3.4 所示。 用卸下的 4 個螺絲固定新風扇。 將風扇支架放回主機殼並用卸下的 2 個大頭螺絲進行固定, 然後插上風扇電源插 頭。 將上蓋放回原處並用螺絲固定好。 IPC-6025 User Manual/ 用户手册...
  • Page 39: 支架上更换冷却风扇 / 從風扇支架上更換冷卻風扇

    Figure 3.3 Replacing the cooling fan/ 更换冷却风扇 / 更換冷卻風扇 Figure 3.4 Replacing the cooling fan from fan bracket/从风扇支架上更换冷却风扇 / 從風扇支架上更換冷卻風扇 IPC-6025 User Manual/ 用户手册...
  • Page 40: Changing The Filters/ 更换滤网 / 更換濾網

    Take out the filter which is behind the iron net. Change a new filter when necessary. Replace them inside the unit and fasten the thumbscrews on the iron net (see Figure 3.5). 滤网可以有效防止灰尘或颗粒物进入机箱并可延长系统使用寿命。建议用户定期清洗 滤网。IPC-6025 机箱配有 2 个滤网:分别位于风扇前和铁网罩后。请按照以下步骤的 指导清洗滤网: 卸下铁网罩上的 4 个螺丝后取下铁网罩。 取出滤网。 必要时更换滤网。...
  • Page 41: Replacing The Power Supply/ 更换电源 / 更換電源

    Loose the screws of power supply bracket from the rear panel and on the bot- tom of IPC-6025 and then gently pull out the power supply (see Figure 3.6). Replace the power supply with a new one and then put it back into the chassis.
  • Page 42 Figure 3.6 Replacing the single power supply/ 更换单电源 / 更換單電源 IPC-6025 User Manual/ 用户手册...
  • Page 43: Alarm Board 报警板

    Chapter Alarm Board 报警板...
  • Page 44: Alarm Board Layout/ 报警板布局 / 報警板佈局

     ATX 電源模組發生故障;  任一冷卻風扇發生故障;  主機殼內部溫度過高; 按下前面板上的報警重定按鈕即可停止報警聲。 Alarm Board Layout/ 报警板布局 / 報警板佈局 The layout and detailed specification of the alarm board are given below: 报警板布局和详细规格如下图所示: 報警板佈局和詳細規格如下圖所示: Figure 4.1 Alarm board layout/ 报警板布局 / 報警板佈局 IPC-6025 User Manual/ 用户手册...
  • Page 45: Alarm Board Specifications/ 报警板规格 / 報警板規格

     1 個 “HDD LED 指示燈 ” 介面 (連接 CPU 卡 / 主機板)  1 個 I2C 介面  1 個 SMBus 介面 輸出信號:  4 個 LED 指示燈  1 個 “ 蜂鳴器 ” 輸出介面 IPC-6025 User Manual/ 用户手册...
  • Page 46: Connectors Pin Definition/ 接口针脚定义 / 介面針腳定義

    Pin 1 Pin 2 Table 4.8: TEMP1, Temperature Connector/ TEMP1,温度接口 /TEMP1,溫度 介面 TEMP_DEC Pin 1 Pin2 (thermal sensor) Table 4.9: SMBus1, SMBus Connector/SMBus1,SMBus 接口 /SMBus1,SMBus 介面 Pin 1 Pin 2 SMB_SCL Pin 3 SMB_SDA Pin 4 IPC-6025 User Manual/ 用户手册...
  • Page 47: Dip Switch Setting/Dip 开关设定 /Dip 開關設定

    DIP Switch Setting/DIP 开关设定 /DIP 開關設定 4.2.2  DIP Switch on IPC-6025 alarm board Pin 3 - Pin 5, Switch setting; For CPU and CPU Cooler quantity defined  IPC-6025 报警板上的 DIP 开关 针脚 3 - 5 开关设定;主板上的 CPU 数量、CPU 温度设定...
  • Page 48: Thermal Sensor/ 热传感器 / 熱感測器

    Thermal Sensor/ 热传感器 / 熱感測器 The IPC-6025 is assembled with a thermal sensor located at the front plate of the chassis. (see Figure 4.2) IPC-6025 机箱前面板上配有一个热传感器,如图 4.2 所示。 IPC-6025 主機殼前面板上配有一個熱感測器,如圖 4.2 所示。 thermal sensor Figure 4.2 Thermal sensor location/ 热传感器位置 / 熱感測器位置...
  • Page 49: Exploded Diagram And Parts List 分解图和部件列表 爆炸圖和零件表

    Appendix Exploded Diagram and Parts List 分解图和部件列表 爆炸圖和零件表...
  • Page 50: Exploded Diagram And Parts List/ 分解图和部件列表 / 爆炸和零件表

    FDD cover/ 后部 IO 弹片 / 前门 / FDD 盖 / 後部 I/O 彈片 前門 FDD 蓋 Rear I/O bracket/ Alarm bracket/ Cushion rubber/ 后部 I/O 支架 / 报警板支架 / 橡胶垫脚 / 後部 I/O 支架 報警板支架 橡膠墊腳 IPC-6025 User Manual/ 用户手册...
  • Page 51 风扇导引器 / LED 指示灯镜片 / 热传感器 / 風扇導引器 LED 指示燈鏡片 熱感測器 9cm Fan/9cm 风扇 / USB port/USB 接口 / Backplane/ 无源底板 / 9cm 風扇 USB 介面 無源底板 Chassis body/ Power switch/ 机箱 / 主機殼 电源开关 / 電源開關 IPC-6025 User Manual/ 用户手册...
  • Page 52 IPC-6025 User Manual/ 用户手册...
  • Page 53: Backplane Options

    Appendix Backplane Options 无源底板选项 無源底板選項...
  • Page 54: Backplane Options/ 无源底板选项 / 無源底板選項

    Backplane Options/ 无源底板选项 / 無源底板選項 IPC-6025 supports a variety of PICMG 1.3 / 1.0 backplanes. Users can contact a local sales representative for detailed specification and information. IPC-6025 支持多种 PICMG 1.3/1.0 无源底板。如需无源底板的详细信息,请咨询研华 的当地销售代表。 IPC-6025 支持多種 PICMG 1.3/1.0 無源底板。如需無源底板的詳細資訊,請諮詢研 華的當地銷售代表。 Table B.1: PICMG 1.3 Backplane Options/PICMG 1.3 无源底板选项 /PICMG 1.3 無源底板選項...
  • Page 55: Quad System Setup 四系统安装

    Appendix Quad System Setup 四系统安装...
  • Page 56: Assemble Rack Carrier/ 安装机架载板 / 安裝機架載板

    IPC-6025 can also work as a Quad System to meet some multi-system application in the industry, like Automatic Optical Inspection (AOI). To install IPC-6025 as a quad system, you have to install with special rack carrier which is specially designed for IPC-6025.
  • Page 57: Install Ipc-6025 On The Rack Carrier/ 将 Ipc-6025 安装至机架载板 / 將 Ipc-6025 安裝至機架載板

    Fix wallmount bracket on the bottom of chassis with screws. (Figure C.3) Install IPC-6025 on one of the guide rail of rack carrier. Start from the front end of guide rail and pull IPC-6025 along the guide rail. Push IPC-6025 into the end until it is installed firmly. (Figure C.4) 机架载板安装完毕后,请按照以下步骤的指导将...
  • Page 58: 架固定在 Ipc-6025 底部

    Figure C.3 Fix wall-mount bracket on the bottom of IPC-6025/ 将壁挂式安装支架 固定在 IPC-6025 底部 / 將壁掛式安裝支架固定在 IPC-6025 底部 Figure C.4 Install IPC-6025 on the Rack Carrier/ 将 IPC-6025 安装至机架载板 / 將 IPC-6025 安裝至機架載板 IPC-6025 User Manual/ 用户手册...
  • Page 59: Uninstall Ipc-6025 From Rack Carrier/ 从机架载板上卸下 Ipc-6025/ 從機架 載板上卸下 Ipc-6025

    上卸下 IPC-6025/ 從機架載板上卸下 IPC-6025 To uninstall the IPC-6025 from the rack carrier, please follow below steps. Push the spring on the rack carrier.(Figure C.5) And then draw out the IPC-6025 along guide rail from the rack carrier. 请按照以下步骤的指导将 IPC-6025 从机架载板上移除: 按下机架载板上的弹簧,如图 C.5 所示。...
  • Page 60 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2013 www.advantech.com.cn 使用前请检查核实产品的规格。本手册仅作为参考。 产品规格如有变更,恕不另行通知。 未经研华公司书面许可,本手册中的所有内容不得通过任何途径以任何形式复制、翻...
