3.3.2 Replacing the side filter
1. Remove the two screws located on the edges of the filter cover
and pull it up. Please see Figure 3-3.
2. Remove the filter and replace it with a new one.
3. Tighten the two screws to secure the filter cover on the chassis.
4. Repeat step 1 to 3 to change another filter.

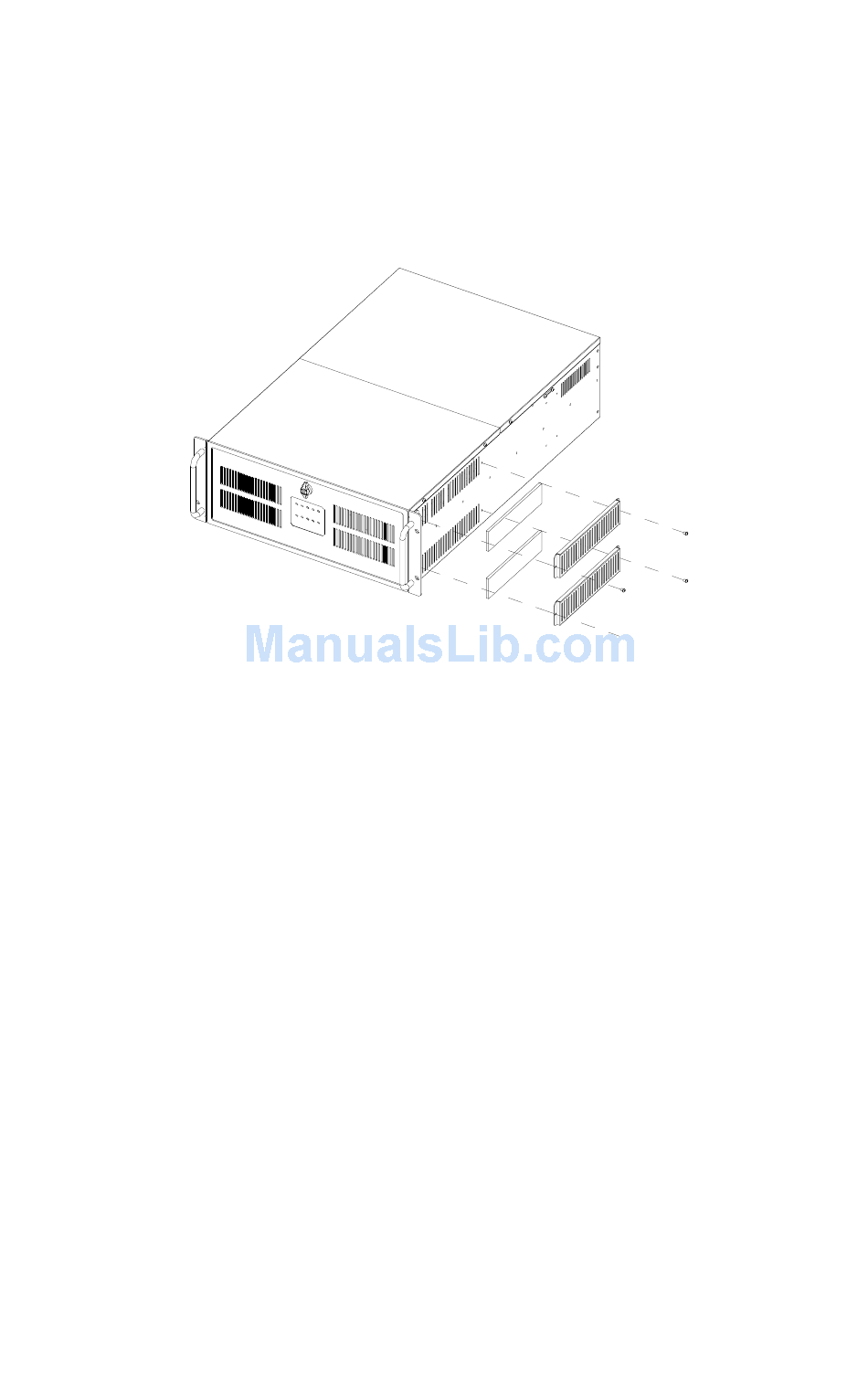

Figure 3-3: Replacing the filter on both sides of the chassis
