- Page 3 Copyright Notice This document is copyrighted, March 2000, by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
-
Page 4: Table Of Contents
T T T T T able of Contents able of Contents able of Contents able of Contents able of Contents Chapter 1 General Information ..........1 1.1 Introduction ....................... 1 1.2 Model List ........................1 1.3 Specifications ......................1 1.4 Dimensions ....................... 3 Chapter 2 System Setup ............ - Page 5 Appendix C Safety Instructions ..........17 C.1 English ........................17 C.2 German Wichtige Sicherheishinweise ..............18 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 6: Chapter 1 General Information

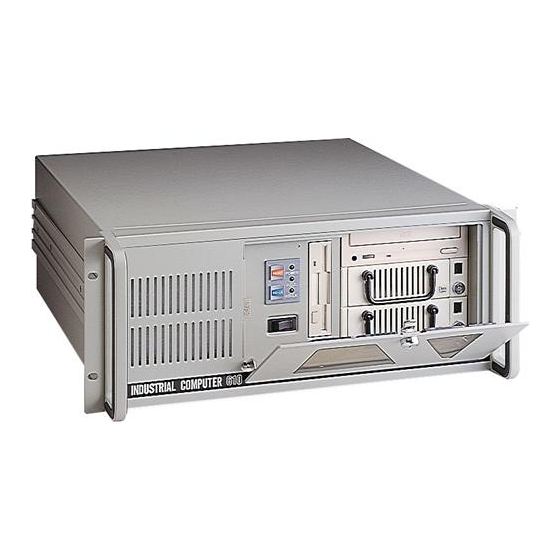

CPU, video, disk controller, and I/O interface cards. They can be conveniently installed and replaced from the top of the unit. The IPC-610F will withstand shock, vibration, dust, and a wide range of operating temperatures in harsh industrial environments. The chassis is positively pressurized by two filtered push-pull cooling fans to exclude dust and dirt. - Page 7 • Vibration (operating): Random Vibration 5 ~ 500 Hz, 1 G RMS • Shock (operating): 10 G acceleration peak (11 ms duration) • Safety: C-UL approved • EMI: Meets FCC/CE Class A • CE compliant IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 8: Dimensions
1.4 Dimensions IPC-610BP-30XF IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 9 IPC-610MB-30XF IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 10: Chapter 2 System Setup
Chapter 2 System Setup Setting up your IPC-610F requires only a screwdriver and a small amount of time. Before you begin, you should also gather together all of the cards you plan to install, as well as the keyboard you plan to use. -
Page 11: The Hold-Down Clamp
2.3 The Hold-down Clamp The IPC-610F uses a hold-down clamp to ensure the plug-in cards are securely fastened. It also offers protection against shock and vibration. To install your cards into the passive backplane, proceed as follows: 1. Detach the hold-down clamp by removing the two screws located at each end and lifting it off the chassis. -
Page 12: Replacing The Filter
The cooling fan which is inside the chassis is designed to be plugged into a connector for easy mainte- nance. Please refer to figure 2-7 below for illustration. Figure 2-7: Cooling Fan IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 13: Installing The Power Supply And Changing The Rear Cover And Window
Installing the power supply and changing the rear cover and window Figure 2-8: IPC-610F with backplane version Figure 2-9: IPC-610F with motherboard version IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 14: Appendix A Passive Backplanes
Reserve sockets of NETR 10P and termination resistors are provided. Resistor Signals Resistor Signals SA7-SA10 SMEMW, SMEMR, IOW, IOR SA15-SA8 SBHE, LA23-LA17 SD0-SD7 LA19-LA16 SD8-SD15 IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 15: Pca-6114P4-B: 9 Isa / 4 Pci / 1 Cpu-Slot Backplane
A.2 PCA-6114P4-B: 9 ISA / 4 PCI / 1 CPU-slot Backplane Dimensions: 260 x 315 mm Unit: mm IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 16: Pca-6114P7: 6 Isa / 7 Pci / 1 Cpu-Slot Backplane
A.3 PCA-6114P7: 6 ISA / 7 PCI / 1 CPU-slot Backplane Dimensions: 300 x 323 mm Unit: mm IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 17: Pca-6114P10: 3 Isa / 10 Pci / 1 Cpu-Slot Backplane
A.4 PCA-6114P10: 3 ISA / 10 PCI / 1 CPU-slot Backplane Dimensions: 300 x 323 mm Unit: mm IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 18: Pca-6113P4R: 8 Isa / 4 Pci / 1 Picmg-Slot Backplane
A.5 PCA-6113P4R: 8 ISA / 4 PCI / 1 PICMG-slot Backplane Dimensions: 260 x 315 mm Unit: mm IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 19 IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 20: Appendix B Exploded Diagrams
Appendix B Exploded Diagrams B.1 Exploded Diagram (internal components) Figure B-1: IPC-610F exploded diagram (internal components) IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 21: Exploded Diagram (Case Components)
B.2 Exploded Diagram (case components) Figure B-2: IPC-610F exploded diagram (case components) IPC-610F User's Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 22 The sound pressure level at the operator's position according to IEC 704-1:1982 is equal to or less than 70 dB(A). DISCLAIMER: This set of instructions is provided according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
- Page 23 Wenn das Gerät deutliche Anzeichen eines Defektes aufweist. Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 Teil 1000 beträgt 70dB(A) oder weiger. DISCLAIMER: This set of instructions is provided according to IEC704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
