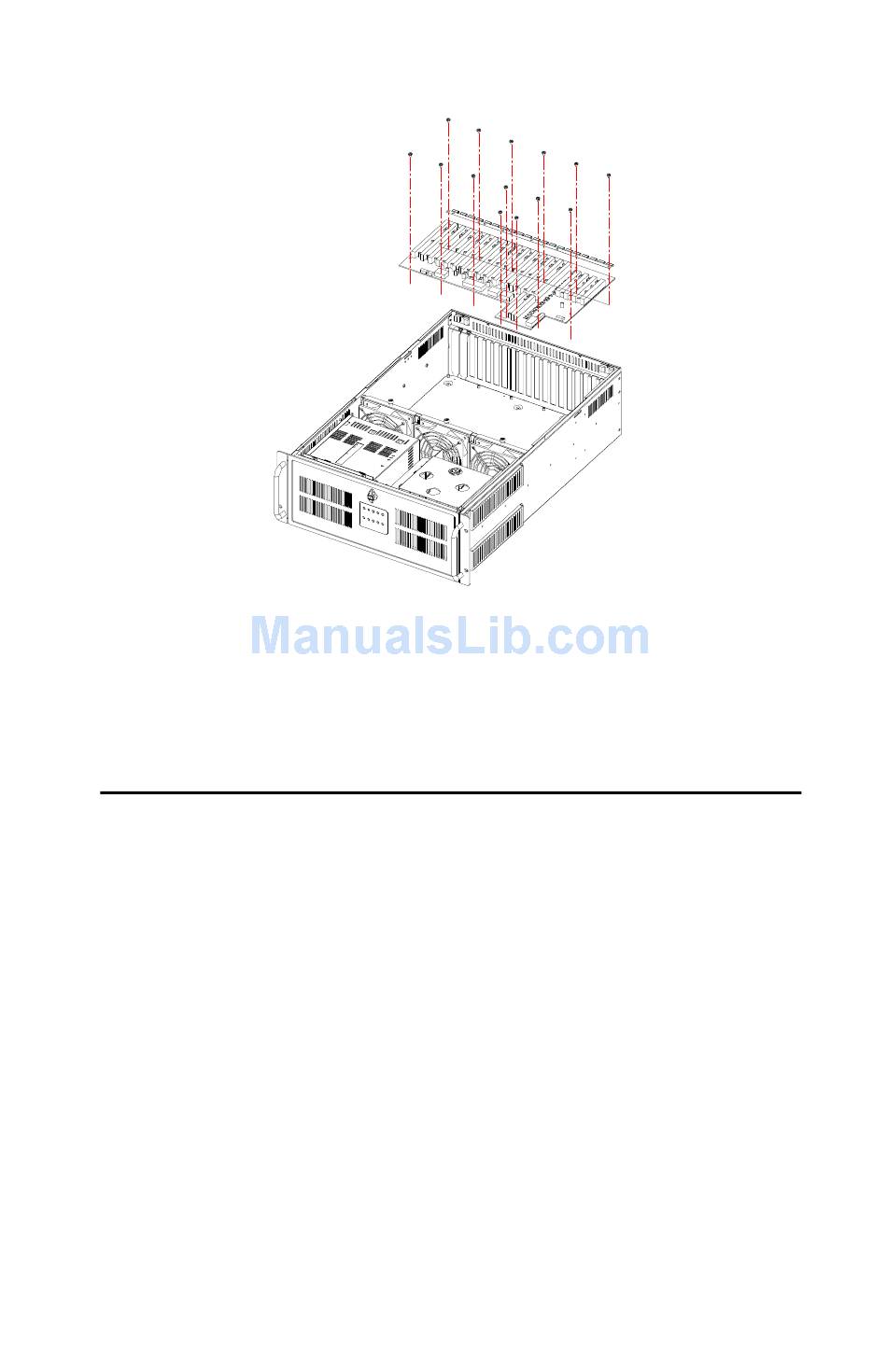

Figure 2-2 Installing the backplane

2.4 Installing CPU and add-on cards

IPC-623 supports up to 20 add-on cards. To install a CPU card or
add-on cards, please proceed as follows:
1. Remove the top rear chassis cover and hold-down clamp. Please
refer to section 2.2 and 2.3 for details.
2. If the thermal sensor becomes an obstacle for installing the card,
adjust the sensor location. Please refer to Figure 2-3.
3. Select a vacant PICMG slot for the full-length CPU card or
PCI/ISA slot for other add-on cards and remove the
corresponding I/O bracket attached to the rear plate of the
chassis.
4. Insert the CPU card or add-on card vertically into the proper slot
(See Figure 2-4-a & Figure 2-4-b). For CPU cards or full-length
cards, please make sure that the card bracket has been inserted
13 IPC-623B User's Manual
