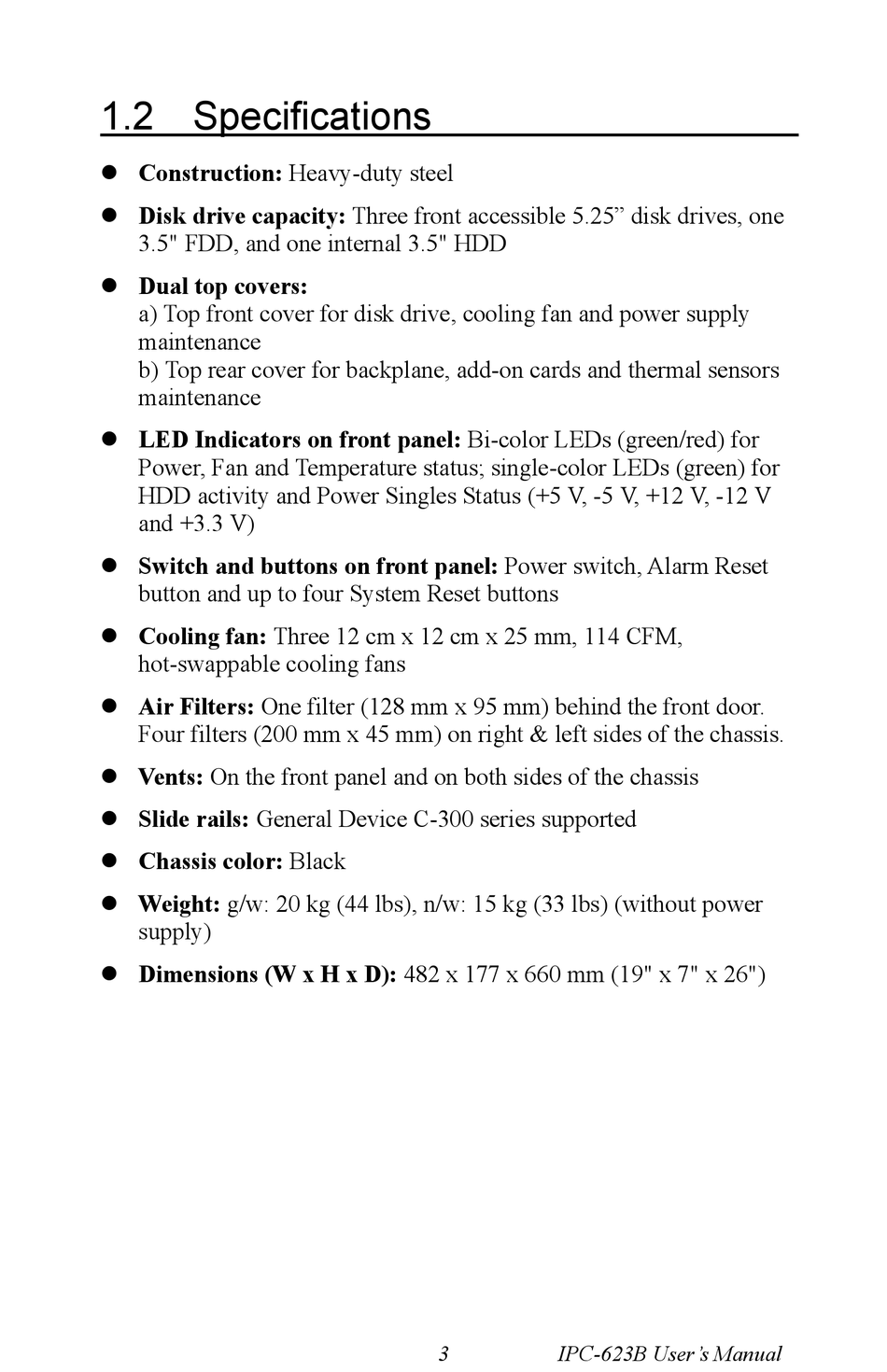

1.2 Specifications

# Construction: Heavy-duty steel
# Disk drive capacity: Three front accessible 5.25" disk drives, one
3.5" FDD, and one internal 3.5" HDD
# Dual top covers:
a) Top front cover for disk drive, cooling fan and power supply
maintenance
b) Top rear cover for backplane, add-on cards and thermal sensors
maintenance
# LED Indicators on front panel: Bi-color LEDs (green/red) for
Power, Fan and Temperature status; single-color LEDs (green) for
HDD activity and Power Singles Status (+5 V, -5 V, +12 V, -12 V
and +3.3 V)
# Switch and buttons on front panel: Power switch, Alarm Reset
button and up to four System Reset buttons
# Cooling fan: Three 12 cm x 12 cm x 25 mm, 114 CFM,
hot-swappable cooling fans
# Air Filters: One filter (128 mm x 95 mm) behind the front door.
Four filters (200 mm x 45 mm) on right & left sides of the chassis.
# Vents: On the front panel and on both sides of the chassis
# Slide rails: General Device C-300 series supported
# Chassis color: Black
# Weight: g/w: 20 kg (44 lbs), n/w: 15 kg (33 lbs) (without power
supply)
# Dimensions (W x H x D): 482 x 177 x 660 mm (19" x 7" x 26")
