2.5 Replacing the Filter

The filter is located on the left side of the front panel. If the IPC-616 is under continuous use, the filter
should be removed about once a month. To replace the filter, remove the thumbscrew to open out the
front panel. Refer to Figures 2-7. Take out the old filter and slide the new one into place. Refer to
Figure 2-8. Then close and lock the lockable door.
8 IPC-616 User's Manual

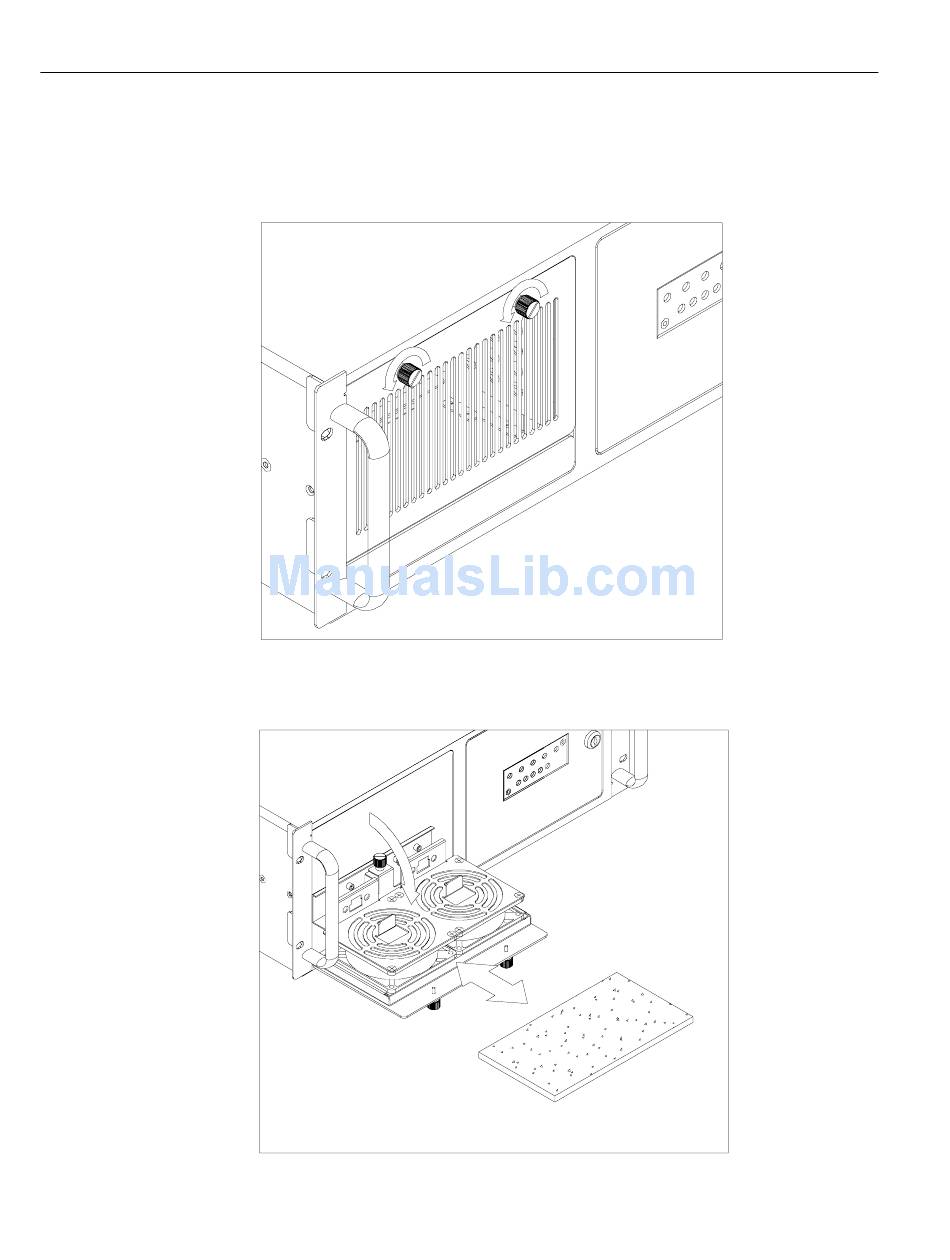

Figure 2-7: Removing the thumbscrews
Figure 2-8: Replacing the filter
