2.4 Replacing the Filter
The filter is located next to the lockable door. Under continuous use, the filter should be removed about
once a month. To replace the filter, refer to Fig. 2-6 below and do the following:
1. Open the lockable door.
2. Take the filter out by gently pulling the tab and sliding the filter to the right.
3. Slide a new filter in until it snaps into place.
4. Close and lock the lockable door.

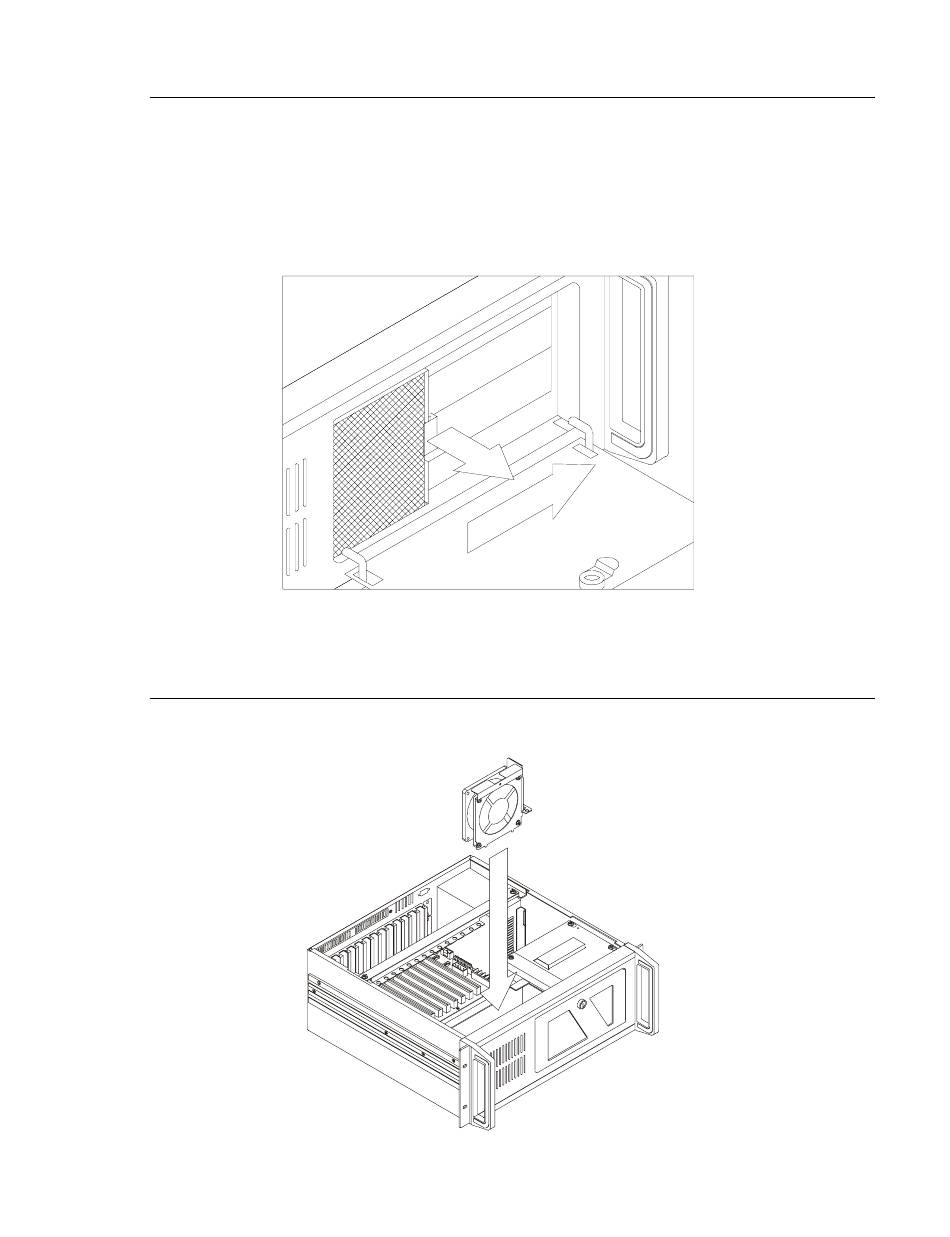

Figure 2-6: Replacing the filter
2.5
The Cooling Fan
The cooling fan which is inside the chassis is designed to be plugged into a connector for easy mainte-
nance. Please refer to figure 2-7 below for illustration.
Figure 2-7: Cooling Fan
IPC-610F User's Manual
7
