If the unit is rack mounted, the single-point ground on the MCU must
be connected to the rack with a single conductor and fixed as to
prevent loosening. When using bare conductors, they must be coated
with an appropriate antioxidant compound before crimp connections
are made. Tinned, solder-plated or silver plated connectors do not
have to be prepared in this manner.
6
Replace the transparent plastic caps on the terminal block.

Connecting Cables on the RMX 4000

To connect the cables (AC and DC systems):
• RTM-IP 4000:
— Connect the Management Network cable to LAN 2.
— Connect the Signalling cable to LAN 3.
— Connect the Shelf Management cable to LAN 6.
• For each installed RTM LAN - Connect the LAN cable to LAN 2.
• For each installed RTM ISDN:
— Connect the E1/T1 cables to their PRI Ports.
— Connect the LAN cable to LAN 1.
LAN Connections to RTM LAN
Signalling
Network
Management
Network
Off/On
switch

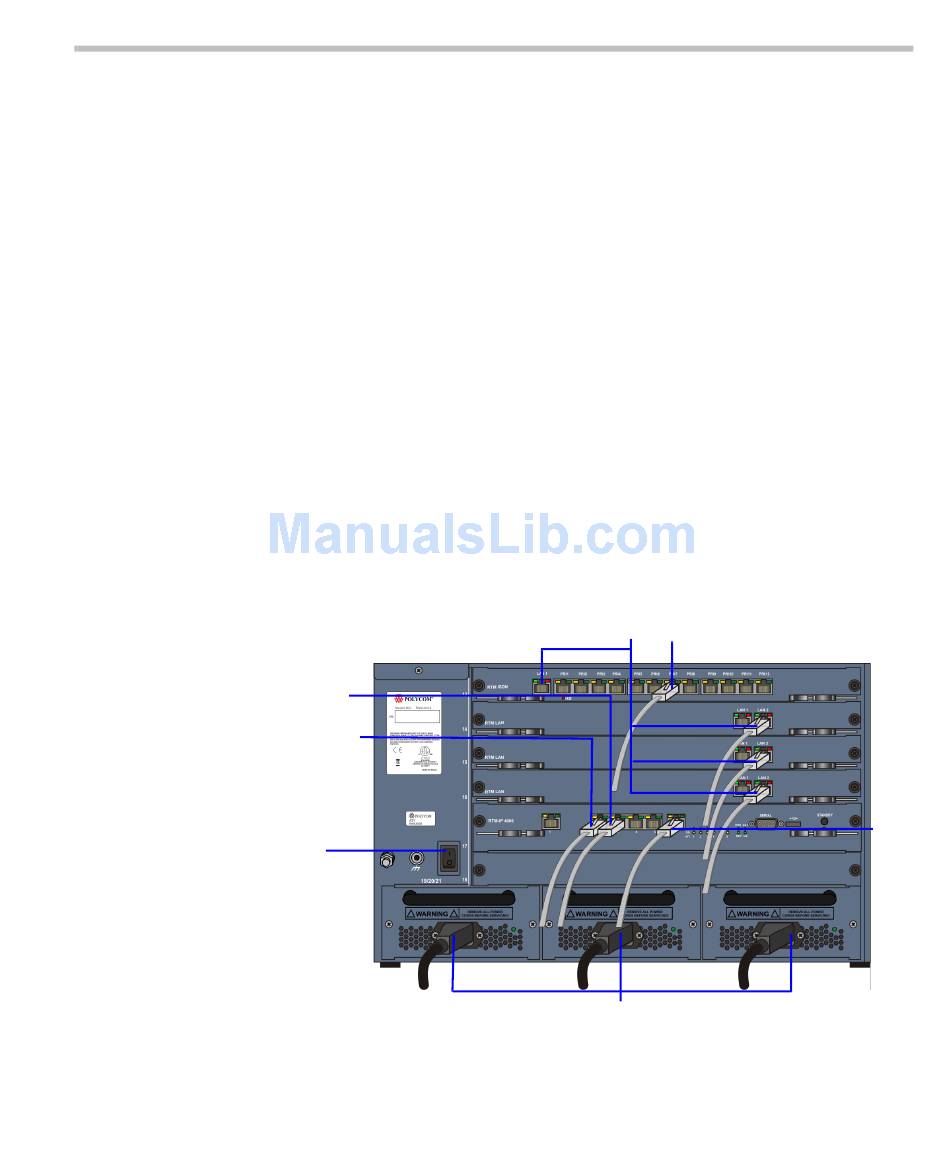

Figure 2-2 RMX 4000 Rear Panel View with AC Power and Communication
Cables
Polycom RMX 2000/4000 Getting Started Guide
E1/T1 Connection to RTM ISDN
Power Cables
Shelf
Manage-
ment
2-13
