Front Panel Descriptions

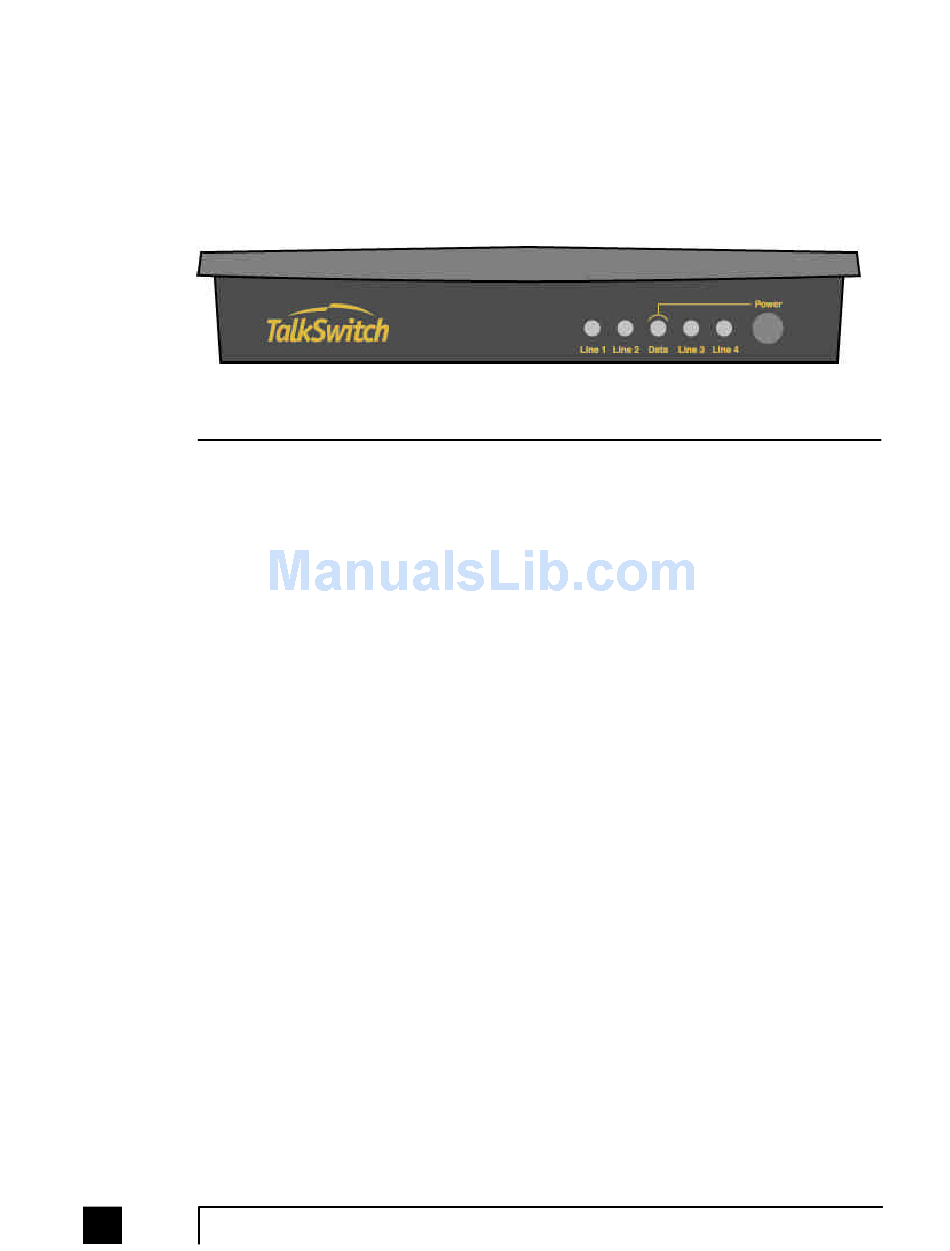

TalkSwitch's front panel consists of a power button ("Power") and 5 LED lights that do
more than let you know TalkSwitch is plugged in and turned on.
What do the LED lights tell you?
LED light:
Line 1
Line 2
Power / Data
Line 3
Line 4
2 TalkSwitch User Manual
State Description
On Solid Line 1 is currently in use.
Pulsing Slowly The Line 1 caller is on hold.
Flickering Line 1 is ringing
Pulsing Rapidly Line 1 is engaged by another device on the line
On Solid Line 2 is currently in use.
Pulsing Slowly The Line 2 caller is on hold.
Flickering Line 2 is ringing.
Pulsing Rapidly Line 2 is engaged by another device on the line
On Solid TalkSwitch is powered on.
Flickering The PC connected (via serial or USB port)to
TalkSwitch is either sending or retrieving
information from TalkSwitch.
Pulsing Slowly Global Message Waiting Indicator (optional)
On Solid Line 3 is currently in use.
Pulsing Slowly The Line 3 caller is on hold.
Flickering Line 3 is ringing
Pulsing Rapidly Line 3 is engaged by another device on the line
On Solid Line 4 is currently in use.
Pulsing Slowly The Line 4 caller is on hold.
Flickering Line 4 is ringing.
Pulsing Rapidly Line 4 is engaged by another device on the line
